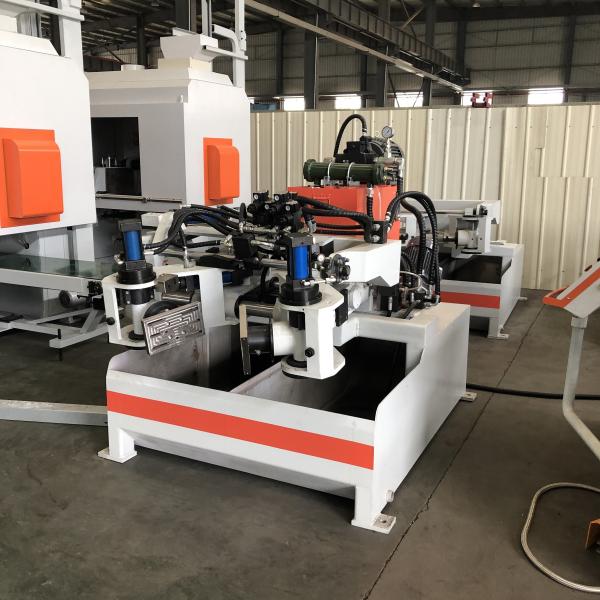

High - Efficiency Gravity Die Casting Machine For Brass And Zinc Alloy Products
High - Efficiency Gravity Die Casting Machine For Brass And Zinc Alloy Products
High - Efficiency Gravity Die Casting Machine For Brass And Zinc Alloy Products
High - Efficiency Gravity Die Casting Machine For Brass And Zinc Alloy Products
High - Efficiency Gravity Die Casting Machine For Brass And Zinc Alloy Products
High - Efficiency Gravity Die Casting Machine For Brass And Zinc Alloy Products
Specifications
Brand Name :
DZ
Model Number :
HZ-450
Certification :
DZ ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30sets/per month
Delivery Time :
20days
Packaging Details :
wood
Condition :
New
Warranty :
1 Year
Type :
Die casting
Voltage :
220V/380V
Computerized :
Yes
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support,Field installation
Weight :
1750
Dimension(l*w*h) :
2250x2160x1560
Power(w) :
5.5KW
Function :
High Effieciency
Description

High - Efficiency Gravity Die Casting Machine For Brass And Zinc Alloy Products

1.Easy operation

2.Can be pouring by manual or by automatic robot manipulator

3.Perfer die casting quality

4.Controlled by PLC,and all hyreaulic components

5.suitable for gravity die casting of brass and ferroalloy

6.Is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.

# Name Specification
1 Max. Die size Φ450mm
2 Max. Die working distance 450mm
3 Max. Die Weight 130kg
4 Max. Clamping distance ≦250mm
5 Hydraulic Motor 5Hp,6 degree
6 Hydraulic Pressure 4～6Kpa
7 Side Casting Angle 0°～90°
8 Direct Casting Angle 0°～110°
9 Stirring motor 0.75kw,6 degree ×2
10 Cooling tank 850kg
11 Hydraulic oil volume 163L
12 Machine Power 5.5kw
13 Machine Weight 1750kg
14 Dimension(LXWXH) 2250mm×2160mm×1560mm

High - Efficiency Gravity Die Casting Machine For Brass And Zinc Alloy Products

Click the link to view video:

https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
