PROMAX Motion Control Metal Polishing Machine For Complex Shape Handle
PROMAX Motion Control Metal Polishing Machine For Complex Shape Handle
PROMAX Motion Control Metal Polishing Machine For Complex Shape Handle
PROMAX Motion Control Metal Polishing Machine For Complex Shape Handle
Specifications
Brand Name :
DZ
Model Number :
NC-64
Place of Origin :
China(Mainland)
MOQ :
1unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100units/per month
Delivery Time :
30work days
Packaging Details :
wood
Certification :
CE ISO
Warranty :
1 Year
After-sales Service :
provide abroad technical training service
name :
metal buffing machine
Condition :
New
Application :
Metal
Dimensions :
3000*3200*2800mm
Description

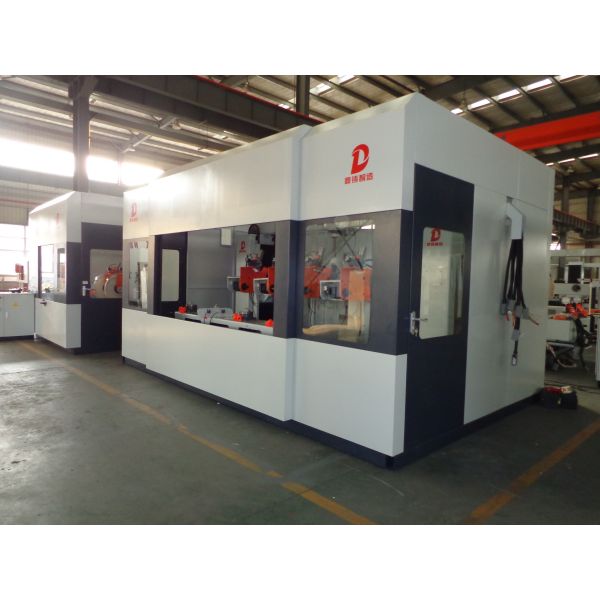

PROMAX Motion Control Metal Polishing Machine For Complex Shape Handle

Industrial Metal Polishing Machine , Automatic Buffing Machine For Complex Shape Handle

Product feature

1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency.

2. The control system adopts PROMAX motion control technology from Italy,stable propeert,high control accracy.

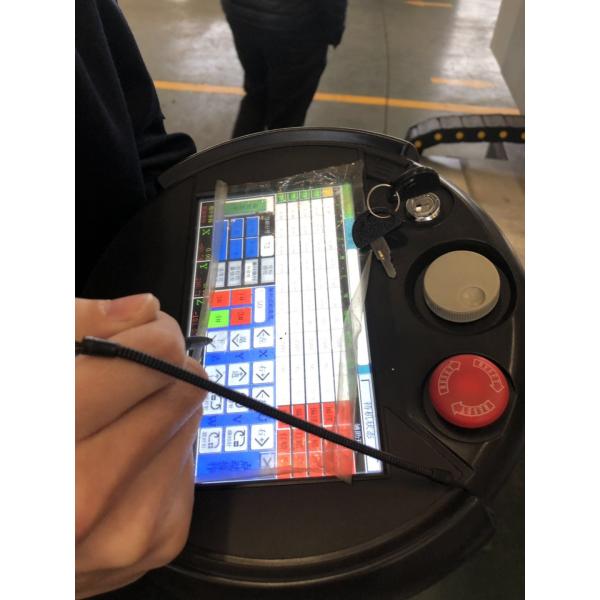

3. Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction

5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

6. Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid wax or liquid wax

7. Full digital control, Can store 50 programs.Programs can be saved and invoked at any time.

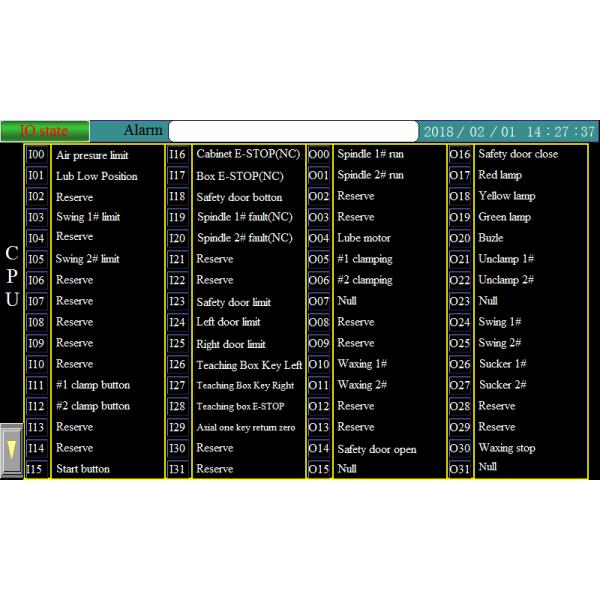

8. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.

TECHNICAL PARAMETERS

No.

Item

Parameters

1

Dimensions (L*W*H)

5000*3400*3000(L*W*H)

2

Machine Power

35KW

3

Rated Voltage

380V

4

Max. Diameter of polishing wheel

600mm

5

Min. Diameter of polishing wheel

400mm

6

X-Axis travel (mm)

1200

7

Y-Axis travel (mm)

1100

8

Z-Axis travel (mm)

700

9

U-Axis travel (mm)

±90°

10

V-Axis travel (mm)

±360°

11

W-Axis travel (mm)

±360°

PROMAX Motion Control Metal Polishing Machine For Complex Shape Handle

PROMAX Motion Control Metal Polishing Machine For Complex Shape Handle

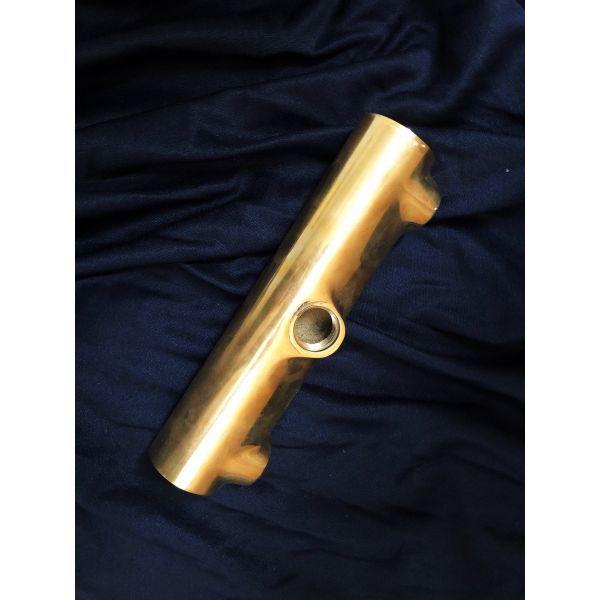

Photos of polished products

PROMAX Motion Control Metal Polishing Machine For Complex Shape Handle
