Easy Operation Automatic Buffing Machine With 6 Axes DZ Servo CNC System Control
Easy Operation Automatic Buffing Machine With 6 Axes DZ Servo CNC System Control
Easy Operation Automatic Buffing Machine With 6 Axes DZ Servo CNC System Control
Easy Operation Automatic Buffing Machine With 6 Axes DZ Servo CNC System Control
Easy Operation Automatic Buffing Machine With 6 Axes DZ Servo CNC System Control
Easy Operation Automatic Buffing Machine With 6 Axes DZ Servo CNC System Control
Specifications
MOQ :
1Unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 units/per month
Delivery Time :
2 weeks
Packaging Details :
wood
Brand Name :
DZ
Model Number :
NC-64
Certification :
CE
Place of Origin :
China(Mainland)
Color :
Gray
Warranty :
surface polishing machine
Condition :
New
Application :
Bathroom industry,Hardware industry,Tool industry,Furniture industry
Usage :
Grinding polishing sanitary ware,hardware accessories,auto parts
Voltage :
380V
Description

Polishing machinr for hardware accessories products,Lock panel , door lock handle

I. Features

1. The main electrical control system adopts 6-axes DZ servo CNC system control (main control screen capture positioning, coordinate digital setting, speed digital setting, software over travel protection, program function modularization, simple idiot style programming, etc.)

In mechanical structure, servo motor is used to drive the worm reducer gear to control the motion of the polishing unit head and workpiece (U, V, W axial direction) and the servo motor drives the slide table (X, Y, Z axial).

2. The machine has 4 polishing unit heads, which can polish 4 work pieces in one cycle time; Production output up to 4PCS / 30 ~ 50 seconds (depending on the product and process);

4. It is suitable for complex shape handle products, pipe products and other regular shape products.

5. Automatic compensation of cloth wheel loss.

Cloth wheel is a lossy material, which gradually wears out in the polishing process, so that the polishing effect cannot be achieved without re-adjusting the machine. Aiming at the technical problems in this industry, our company has developed a dynamic pressure compensation system to achieve the process consistency in quantitative production.

6. Easy operation, powerful function

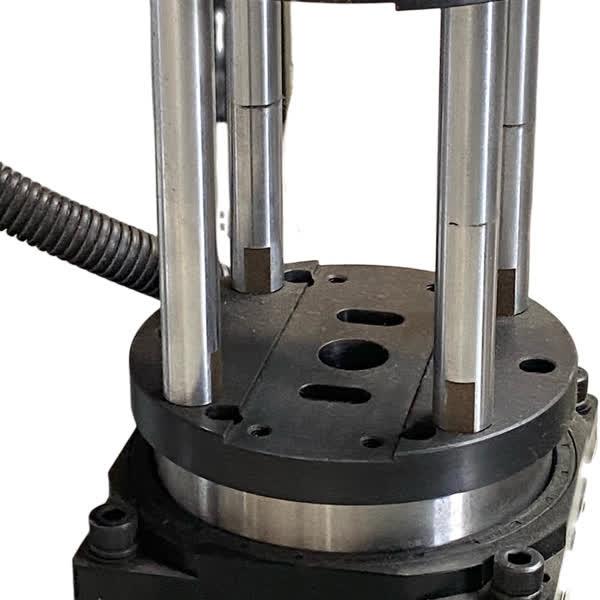

6.1 According to the characteristics of the handle, the polishing station and fixture are combined to solve the problem of dead Angle of polishing.

6.2 Minimized manual operation, convenient operation;
6.3 Frequency conversion regulation, environmental protection and energy saving

II. Main technical parameters:

# Item Parameter Remarks
1 Size 4400*3400*2900(L×W×H) Machine Cabinet Size
2 Power 33KW
3 Rated Voltage 380V 50Hz
4 Max. Polishing Mop Diameter 600mm
5 Min. Polishing Mop Diameter 400mm
6 X Axis Travel 1100
7 Y Axis Travel 900
8 Z Axis Travel 700
9 U Axis Travel ±60°
10 V Axis Travel ±360°
11 W Axis Travel ±360°
