Specifications
Brand Name :
Auten
Model Number :
5 Axis
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
300 sets/year
Delivery Time :
30 days
Packaging Details :
wooden case
Price :
Negotiable
Cutting range :
6m 9m 12m( customized )
Cutting method :
Flame/plasma
Flame cutting speed :
20—700mm/min
Plasma cutting speed :
500-3500mm/min
Plasma bevel :
Plasma bevel 6-14mm
Power wattage :
5KW
Description

5 Axis High Speed CNC Plasma and Flame Pipe Cutting Beveling Machine for Heavy Pipeline Engineering

Brief introduction:

Pipe CNC cutting machine for round pipe. It can cut and bevel carbon steel, stainless and other material are widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.

Features:

1. Adopt welding platform, heavy rail and improve the overall bearing weight, human design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy.

2. Independent research development to optimize CNC pipe systems, auto CAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, over sized EGES DXF SAT and STL software compatibility and lifetime free upgrade process can be modified according to user needs

3. Taiwan’s Advantch industrial computer can be programmed directly on the machine. Using menu-select input cutting parameters such as diameter, wall thickness, bevel angle deviation compensation data.

Parameter:

Mode

XY Round pipe CNC cutting machine
Cutting range 6m 9m 12m( customized )
Machine size 7800*1800*1650mm( customized )
Cutting method Flame/plasma
Flame cutting speed 20—700mm/min
Plasma cutting speed 500—3500mm/min or upon the plasma power
Control system Advantech industrial computer
Plasma Max. hole thickness 14mm
Plasma Max. edge cutting thickness 18mm
Plasma torch anti-collision system yes
Plasma bevel 6-14mm
Driving mode Servo
Software KSY pipe apply software
Working condition
Working pressure of compressed gas Above 7mpa
Required gas flow of plasma 4500L/H
Working environment Ventilation, no concussion
Power wattage 5KW
Types of gas Acetylene propane

5 Axis High Speed CNC Plasma and Flame Pipe Cutting Beveling Machine for Heavy Pipeline Engineering5 Axis High Speed CNC Plasma and Flame Pipe Cutting Beveling Machine for Heavy Pipeline Engineering

5 Axis High Speed CNC Plasma and Flame Pipe Cutting Beveling Machine for Heavy Pipeline Engineering

Details

5 Axis High Speed CNC Plasma and Flame Pipe Cutting Beveling Machine for Heavy Pipeline Engineering5 Axis High Speed CNC Plasma and Flame Pipe Cutting Beveling Machine for Heavy Pipeline Engineering

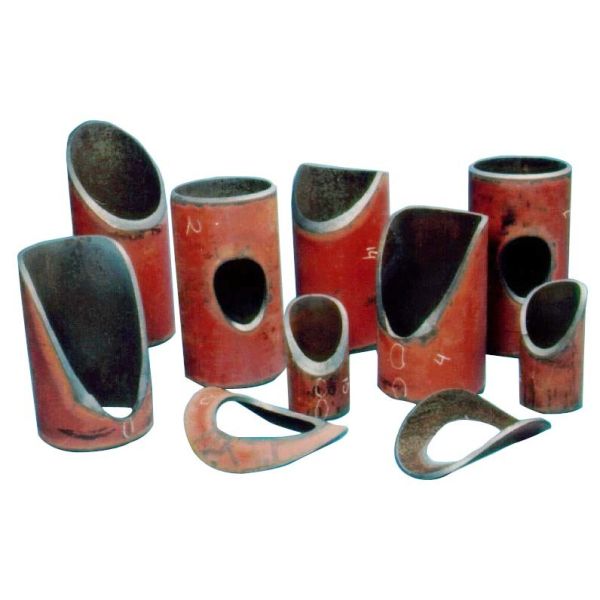

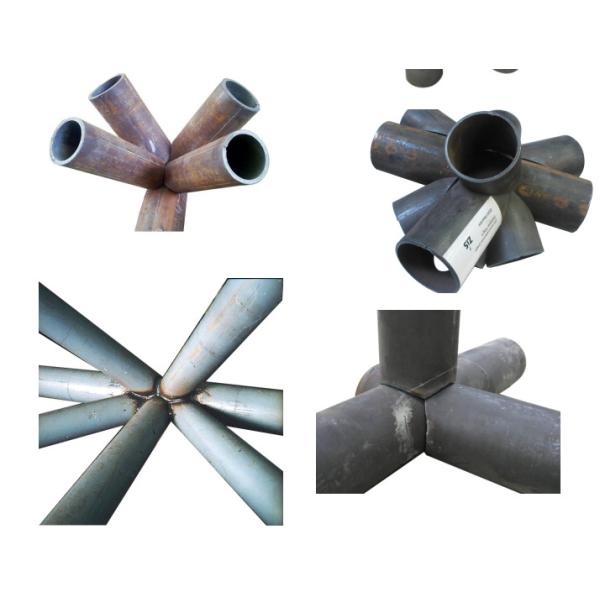

Workpieces
