Specifications
Brand Name :
Auten
Model Number :
GQC200-2C
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
500 sets/year
Delivery Time :
20 days
Packaging Details :
wooden case
Price :
Negotiable
Processing Angle Size :
40~250mm
Processing Angle Length :
Min. 300mm
Max. Processing Angle Length :
Without Limit
Main Spindle Speed :
460r/Min
Name :
CNC Angle Processing Machine
Feature :
Automatic
Description

CNC Angle steel shovel back machine for Steel Tower Model GQC200-2C

Machine Usage & Characteristics:

1. The device uses high-speed milling for back and root of angle shoveling processing technology.

2. Greatly improving the shoveling production efficiency, ten times efficient than the traditional planer.

3. Easily operate, low requirement for the worker’s operation level.

4. Greatly reducing the labor intensity, high degree of automatic machinery, it can continuously feed angle.

5. Compared with traditional planer which length of processing is restricted, the new machine makes the process more flexible. It is not necessary to use clamping device to make the process more convenience and more efficient.

6. The machine is easy to operate, flexible regulation and stable operation.

Specifications:

Model GQC200-2C GQC250-2C
Processing Angle Size L40~L200 L63~L250x32

Processing Angle Length

Min. 300mm;

Max. Without Limit

Min. 350mm;

Max. Without Limit
Power-3phrase AC 380V50Hz 13.4KW 15KW
Main Spindle Speed 460r/Min 450r/Min
Spindle Axis Quantity Two Three
Automatic Feeding Speed (Adjustable) 100-500mm/Min 100-500mm/Min
Overall Dimension 2000X2000X1200 Mm 2650x1850x1750mm

Machine Working Process:

1,Adjust the shovel back depth. Directly input shovel back depth in the touch screen, press blade adjustment button, cutter head automatically adjusts to the chip position. According to the preset parameters, the machine will automatically calculate the cutting speed.

2,Put angle in the machine.

3,In automatic mode, press the cycle start button, the machine will automatically run.

4,The same size Angle can be cutting continuously.

Automatic CNC Angle Back Milling Cutting Machine Flexible Regulation Stable Operation

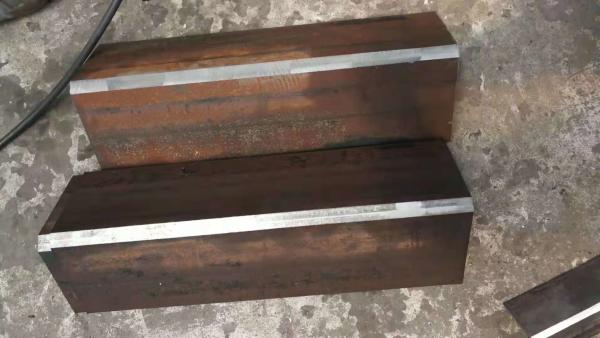

Workpiece
