Economical 1326 Oscillating Knife CNC Cutting Machine
Economical 1326 Oscillating Knife CNC Cutting Machine
Specifications
Brand Name :
Unitec
Model Number :
UT1326ATC-OC
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
100 per month
Packaging Details :
Steel pipe and plywood
XYZ Travel Size :
1350X2900X220mm
Max Working Size :
1300X2600X160mm
Table Size :
1300X2600mm
Guide Rail :
Linear Guide
Table Type :
vacuum
Spindle Power :
9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Voltage :
380V/220V
Warranty :
2 years
Oscillating Knife :
China Leyu
Controller :
Leyu Controller
Description

Economical 1326 Oscillating Knife CNC Cutting Machine with Automatic Tool Changer

1. 1326 three processes, is an intelligent economic ATC equipment. It can auto-complete multi-process machining through three separate spindle automatic switching.

2.Tool change type : Linear ATC

3. Control system adopts imported Taiwn Syntec system.

4. Main parts are high stability imported parts.

5. A variety of sizes models is available to choose.

6. Can change the parts according to your requirements.

Applications and Material

Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc

Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc

ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel

XYZ Travel Size 1350X2900X220mm
Max Working Size 1300X2600X160mm
Table Size 1300X2600mm
Transmission Type XY/Z XY rack/Z ball screw

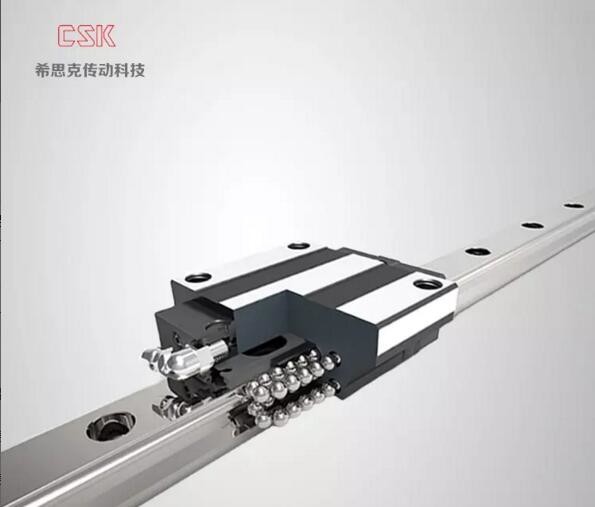

Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Carrousel Tool Changer
Spindle Speed 24000rpm

Max Travel Speed

 45000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System China Leyu Controller

Processing Accuracy

 0.05mm

Repeat Positioning Accuracy

 0.01mm
File Format G/PLT G code or PLT
Overall Weight 1800KG
Overall Dimension 2000X3600X1900mm


Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.

Economical 1326 Oscillating Knife CNC Cutting MachineEconomical 1326 Oscillating Knife CNC Cutting MachineEconomical 1326 Oscillating Knife CNC Cutting MachineEconomical 1326 Oscillating Knife CNC Cutting MachineEconomical 1326 Oscillating Knife CNC Cutting Machine
