1325 Sign Making CNC Router
1325 Sign Making CNC Router
1325 Sign Making CNC Router
1325 Sign Making CNC Router
1325 Sign Making CNC Router
1325 Sign Making CNC Router
Specifications
Brand Name :
Unitec
Model Number :
UT1325A-OCD
Certification :
CE
Place of Origin :
China
MOQ :
1 set
XYZ Travel Size :
1300 X 2500 X 220mm
Transmission Type :
XY/Z XY rack/ Z ball screw
Guide Rail :
Linear Guide
Knife System :
Knife System
Table Type :
vacuum
Spindle Power :
5.6KW Italy Elte Spindle or China Spindle
Max Working Size :
1300 X 2500 X 220mm
Table Size :
1300 X 2600mm
Description

UT1325A-OCD 1325 Cnc Router signmaking for Foam corrugated KT board

1. 5.6KW ELTE Air cooling spindle(optional HQD or HSD spindle), high precision, long life time, steady working, easy to start up.
2. Thicken square pipe structure, well welded,no distortion for whole structure.
3. Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.

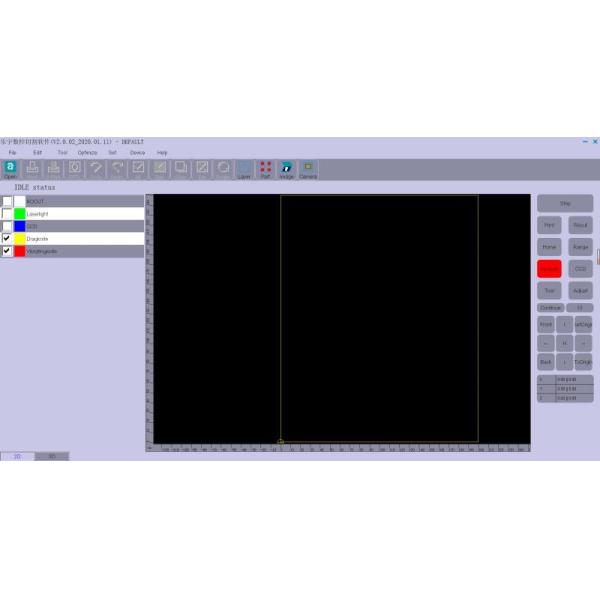

4. Leyu controller system with USB interface, working without connecting with computer during working and easy to control.
5. This machine can engrave any design,support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other G-code format generated by CAD/CAM
6. Adopt high speed step motor Max speed is 20M/MIN.
7. Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on

XYZ Travel Size

 1300 X 2500 X 220mm

Max Working Size

 1300 X 2500 X 220mm
Table Size 1300 X 2600mm
Transmission Type XY/Z XY rack/ Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 5.6KW Italy Elte Spindle or China Spindle
Knife System Oscillating + Creasing + Drag Knife + CCD camera
Spindle Speed 18000rpm

Max Travel Speed

 40000mm/min
Max Work Speed 25000mm/min
Motor Easy Servo otor
Work Voltage AC380V 50HZ
Controller System China Leyu Or Taiwan Syntec

Processing Accuracy

 0.05mm

Repeat Positioning Accuracy

 0.01mm
File Format G/PLT G code or PLT
Overall Weight 1500KG
Overall Dimension 2300 X 3200 X 1900mm

Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.
