0.1-0.8mm CNC Spring Making Machine, 6 axis, production rate 800pcs/min
0.1-0.8mm CNC Spring Making Machine, 6 axis, production rate 800pcs/min
0.1-0.8mm CNC Spring Making Machine, 6 axis, production rate 800pcs/min
0.1-0.8mm CNC Spring Making Machine, 6 axis, production rate 800pcs/min
Specifications
Brand Name :
XD
Model Number :
XD-608
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per month
Delivery Time :
20 working days
Packaging Details :
Plywood case
Axis count: :
6
Applied wire diameter: :
0.1-0.8mm
Spring length gauge: :
available
Safety door: :
available
indicating light: :
available
Warranty: :
2
Description

Machine features:

It is development trend that multi axis spring coiler is now taking a more important role compared with traditional two axis spring coiler, XD-608 is good combination of speed and precision.

1. Integrated design of cutter and mandrel.

2. Fieldbus controller, with fast reaction speed and good synchronism.

3. Faster conversion speed of left and right hand spring.

4. Computer can automatically detect the temperature of motor and slow down its running speed to protect motor from overheating.

5. Computer can automatically decelerate according to the timing when probe should be used.

6. Prodution rate can be increased or decreased at any time of operation.

7. Max speed reaches 1000pcs/min, absolutely a nice equipment for small coil springs.

Technical Parameter:

1.Model: XD-608
2.Wire Diameter: 0.1-0.8mm
3.O.D: ￠25mm
4.Production Rate: 1000pcs/min
5.Feed Length: unlimited
6.Wire Feed: 0.75kw
7.Cutter: 0.4kw*2
8.OD Axis: 0.4kw
9.Pitch: 0.4kw
10.Arbor back-and-forth: 0.4kw
11.Monitor Display: Chinese/English
12.Max. Value: 99999.99mm
13.Min.Value: 0.02mm
14.Memory:

150 Program Max

999 Lines for each program
15.Machine Dimension: 90*70*135cm
16.Machine Weight: 500kgs
17.Power: 220v 3p 50/60h

Sample springs:

0.1-0.8mm CNC Spring Making Machine, 6 axis, production rate 800pcs/min

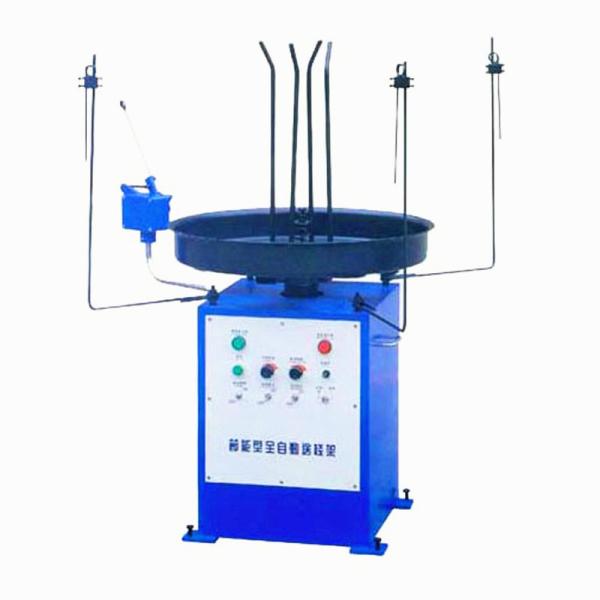

Auxilliary wire feeding machine(60-100kg):

0.1-0.8mm CNC Spring Making Machine, 6 axis, production rate 800pcs/min
