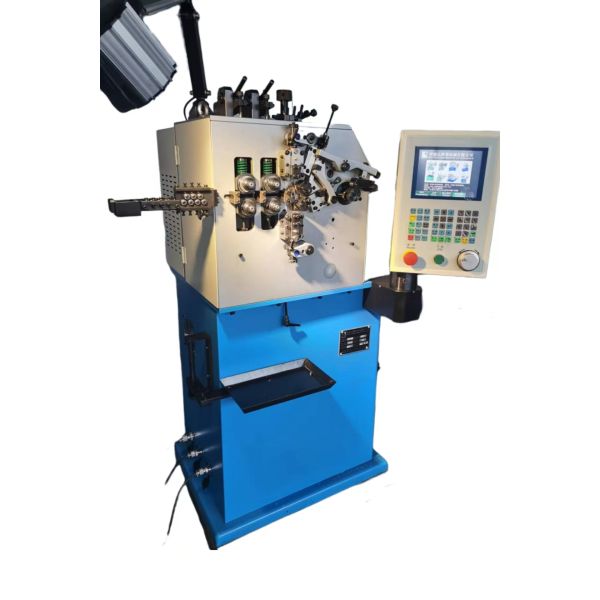

Auto High Precision Compression Spring Machine Forming Coiling Machine
Auto High Precision Compression Spring Machine Forming Coiling Machine
Auto High Precision Compression Spring Machine Forming Coiling Machine
Auto High Precision Compression Spring Machine Forming Coiling Machine
Auto High Precision Compression Spring Machine Forming Coiling Machine
Auto High Precision Compression Spring Machine Forming Coiling Machine
Auto High Precision Compression Spring Machine Forming Coiling Machine
Auto High Precision Compression Spring Machine Forming Coiling Machine
Auto High Precision Compression Spring Machine Forming Coiling Machine
Auto High Precision Compression Spring Machine Forming Coiling Machine
Specifications
Brand Name :
HYD
Model Number :
HYD-212
Certification :
CE / IS09001
Place of Origin :
Dongguan,China
MOQ :
1 Set
Payment Terms :
Negotiable
Delivery Time :
25 Days
Packaging Details :
Standard Seaworthy Plywood Case
Price :
Negotiable
Wire Size Range :
0.3-1.2mm
Axis :
Two Axes
Machine weight :
400KG
Servo Motor :
Sanyo
Feed Speed :
1200m/min
Guarantee Period :
One year
Language :
English
Production Capacity :
30 sets one month
Description

Auto High Precision Compression Spring Machine Forming Coiling Machine

  • HYD-212 Compression Spring Machine Parameters
  • Model
  • HYD-212
  • Diameter
  • 0.3-1.2mm
  • Maximum diameter
  • 20mm
  • The fastest production speed
  • 550pcs/min
  • Wire feeding length
  • Unlimited
  • Wire feeding speed
  • 1200m/min
  • Delivery spools
  • Y Axis 1kw
  • Camshaft
  • X Axis 1kw
  • Screen display
  • Color/Chinese/English
  • Minimum order value
  • X:0.1 Y:0.01mm
  • Machine size
  • 900×850×1600mm
  • Machine weight
  • 400KG
  • Power
  • 220V3p50/60HZ

Spring Samples:

​

Auto High Precision Compression Spring Machine Forming Coiling Machine

Production features:

1. It combines precision CNC controlled servo-motion system and conveniences of mechanization.

2. It is suitable for various kinds of spring products with wire diameter 0.3--1.2mm through a simplified setup and programming procedure.

3. Production speed can be increased or decreased at any time running the machine.

4. Servo motion system and servo drive controlled.

5. Cam can be moved clockwise or anti-clockwise; wire feed length can be changed while running the machine.

6. Computer can automatically detect the temperature of the motor and slow down the running speed to protect the motor from overheating.

7. Computer can automatically decelerate according to the timing when the probe should be used.

Additional

1.This machine can be with three axes.

2.HYD provide torsion attachment,length gauge.

3.HYD can make cutting tools,we have workshop of making tools.

4.The production with machine shipment is avalable.
