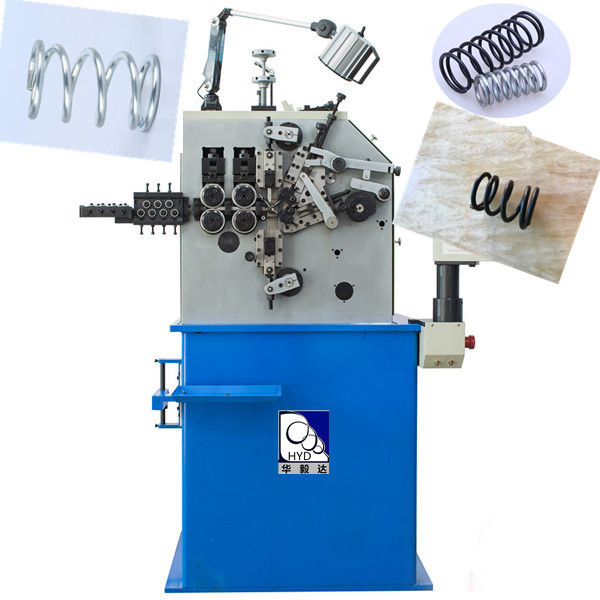

High Efficient 380V Compression Spring Machine With 2.7KW Servo System
High Efficient 380V Compression Spring Machine With 2.7KW Servo System
Specifications
Brand Name :
HYD
Model Number :
HYD-220
Certification :
CE / IS09001
Place of Origin :
Dongguan,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
Negotiable
Delivery Time :
25 Days
Packaging Details :
Standard Seaworthy Plywood Case
Painting :
Blue
Outside diameter :
45mm
Speed :
300 pcs /per minute
Delivery Date :
20 - 25 Days
Description

Efficient Computerized Compression Spring Machine for Up to 2.0 mm

Model HYD-220
Material can be roll diameter 0.4-2.0mm
Wire feed servo motor 2.7KW
Cam servo motor 2.7KW
Power supply 380V50HZ
Machine Size 860*760*1500mm
Machine Weight

700kg

Spring Sample

High Efficient 380V Compression Spring Machine With 2.7KW Servo System



Machine Desciption

1. This machine is with convenient mechanization,it can make springs at high speed and get good accuracy resulted from servo motion system

2. The cutter,pitch, and outside diameter all are driven by the cam motors.

3. The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.

Information

HYD was established in 2000,which is more than fifteen years experience now,the owner of this company is

with more than twenty-five years experience.Now HYD brand is becoming one of the most popolar spring

machine manufactuerer in Chinese spring machine market.HYD has many customers distributing in

Asia.Europe,South America.
