Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine
Specifications
Brand Name :
HYD
Model Number :
HYD-226
Certification :
CE / IS09001
Place of Origin :
Dongguan,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Delivery Time :
20 Days
Packaging Details :
Plywood Case
Machine Weight :
2400KG
Wire Size :
0.8~2.6 mm
Sample Making :
Provided
Wire Feeder :
200KG
number of axis :
2
direction of wire feed :
Right and left
key words :
spring Coiling machine
Keywords 2 :
Compression Spring Making Machine
Description

Compression Spring Making Machine CNC Spring Winding Machine For 0.8~2.6mm Wire Diameter

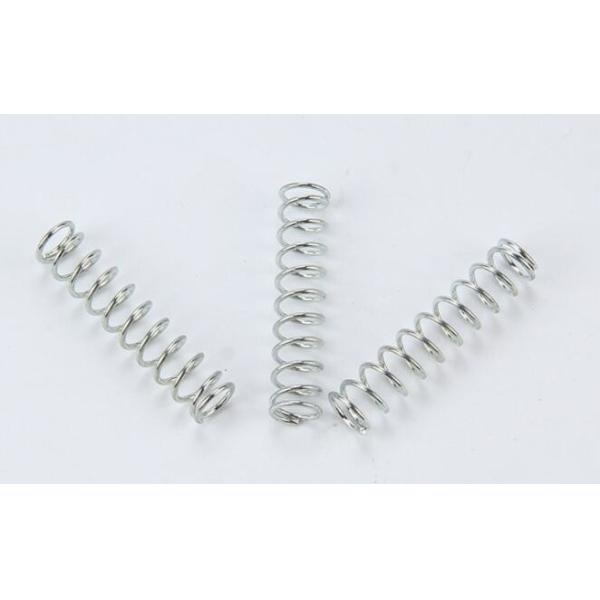

It is suitable for processing all kinds of precision compression springs, simple torsion springs and extension springs, such as compression springs, tower springs, mattress springs, shock absorbing springs, automobile springs and mold springs.

Feature:

•2 -5axes high speed coiler

•Edit-on-the-fly

•Auto edit function

•Proportional adjustment for OD, Pitch, and number of coils

•Simple torsion spring available

•Optional spring gage, air slide, torsion attachment, etc

•Spool and camshaft precision inspection ensures high precision.

Model HYD-226
Wire diameter 0.8~2.5mm
Axis 2 axes
Maximum Outside Diameter 50mm
Feeding Length unlimited
Maximum Manufacture Speed 120pcs/min
Feed Speed 1200m/min
Memory Number 1000pcs
Wire Feed Servo Motor 4.5kw
Cam Servo Motor 2.7kw
Machine Size 960*800*1400mm
Machine Weight 900KG

Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine

Compression Spring Making Machine , 0.8-2.6mm Dia CNC Spring Winding Machine

Machine Purchasing Process

• Customer provide HYD spring drawing

• HYD provide technical information for machine and spring making information

• Customer confirm machine and order,then arrange 30% deposit as PO confirmation

• HYD make spring set-up in machine after manufacturing period

• HYD shipped machine after customer’s spring confirmation and receive balance payment.

• Machine following for transposition and all after-sales service

Service Support:

---Durable quality of machine and the most professional service would be provided.

---Free solution for your production will be provided. The staff in HYD company are with rich experiecnce,best solution will be provided all the time.

---Your visiting to HYD company for checking or training is warmly welcome.
