Specifications
Brand Name :
JD
Model Number :
JD-212B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Supply Ability :
60 sets per month for Spring Making Machine
Delivery Time :
10-15 days after payment
Packaging Details :
Wooden case with protective material inside
Name :
Technical Support Mattress Spring Making Machine Diameter 0.2 mm to 1.2 mm
Model :
JD-212B
Wire Diameter :
0.2 mm to 1.2 mm
Outside Diameter :
Max. 25 mm
Porduction Speed :
Max 300PCS per min
Wire Feed Length :
Unlimited
Wire Feed Axis Servo Moter :
0.85 kw
Cam Axis Servo Moter :
0.85 kw
Monitor Display :
Color/Chinese/English
Machine Size :
80*65*145 cm
Weight :
500 kg
Power :
220V 3P 50/60 Hz
Feature :
Provide technical support unitl you can produce spring well
Description

Technical Support Mattress Spring Making Machine Diameter 0.2 mm to 1.2 mm​

Modle JD-212B Spring Making Machine
Wire Diameter 0.2mm-1.2mm
MAX Outer Diameter 25mm
Max. Production Speed 300pcs/min
Wier Feed Length Unlimited
Send The Spool(Y) 0.85kw
The Camshaft(X) 0.85kw
Monitor Display Color/Chinese/English
The Machine Size 80*65*145cm
Machine Weights 500kg
Power 220V 3P 50/60Hz
Packing Wooden case

Description

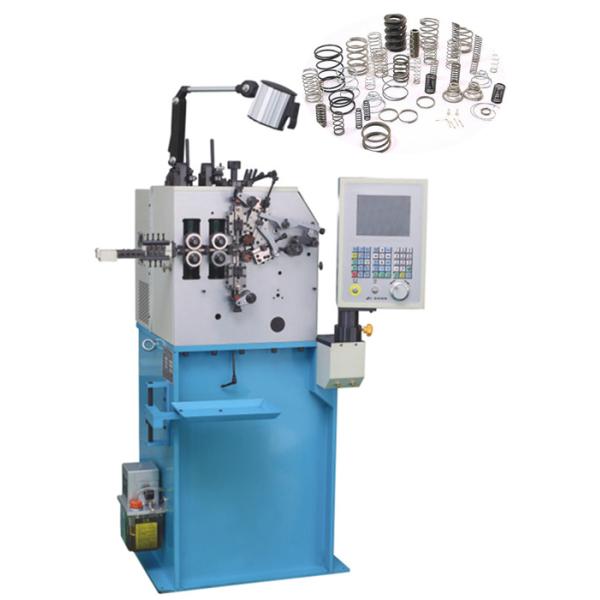

Spring Making Machine

1.Wire Diameter range from 0.2 mm to 1.2 mm.

2.Max outer diameter up to 25 mm.

3.2-axis control, for wire feed and pitch mechanism.

4.High precision equipped with CNC controlled servo-motion system

5.High production speed Max. up to 300 pcs/min..

6.Simplified setup and program with English/Chinese platform.

7.Capable of various kind of springs such as compression springs, oil seal springs, taper springs, battery springs and so on.

Feeture

The cnc compression spring machine combines precision CNC controlled servo-motion system and conveniences of mechanization. It is suitable for various kinds of spring products through a simplified
setup and programming procedure.
The wire feeding system is installed horizontally back of the machine. Every two wire feeding wheels is one group, there are two groups.

Technical Support

Using Spring Making Machine produce out good springs need rich-experience and skilled workers, however most of the users are lack of skilled workers, they can not produce springs nice and fast.

Many factories do not provide after-sales service of machines in oversea market because of many difficults, but we will not.

1.Instruction book is the most basic thing.

2.You can tell the specs of the springs to us, we will make a video for you.

3.We have some HD camears for machines display, and these camears are connecting with the Internet, we can show anything you want to know under your requests through the Internet simultaneously.

4.Everytime you come to China, wellcome your visit and welcome to study.

5.We can send engineers and translators to your country, the cost need to share.

Spring Sample

Mattress Spring Making Machine 300pcs/Min With 0.85 Kw Cam Axis Servo Motor

Compare with other brand Spring Making Machine

Our Spring Making Machine committed to the pursuit of stability and precision, all mainly accessories of the spring machine, such as wheel gear, motor, bearing are all importing form Japan. Besides, we will do enough producing processes to ensure the stability and pricision as well. for example, we do steel pretreatment to prevent deformation, 12 steps of producing parts to ensure precision.

Make it more clearly with numbers, our machine can finsih adjustment in half an hour before producing, and continue producing for 1 hour without any adjustment more, other machines may need 1.5 or 2 hour to finish adjustment before producing, and check or adjust the machine every 15 mins, because their machines are not stable and precision enough.

Company Introduction

Dongguan Jinding Machine Co., Ltd founded in 2011 .We work together to create the best technology for the core of brand-name enterprises,integrates production and sales as one of professional CNC spring machinery and equipment production enterprises and equipment research and development, design, manufacturing and sales. The company has a professional R & D personnel, the machining process of product design, absorb advanced foreign advanced enterprise products in the design of perfection. The assembly front line staff are skilled operation skills, with rigorous work attitude and skills, to ensure product quality requirements.The control system and motor are from Japan,Taiwan and directly use their related products. Products has a transmission line of high precision, forming a stable accurate movement, the appearance of novel, digital control, color Chinese English interface,the operation is simple and convent,which attact majority of customers.
