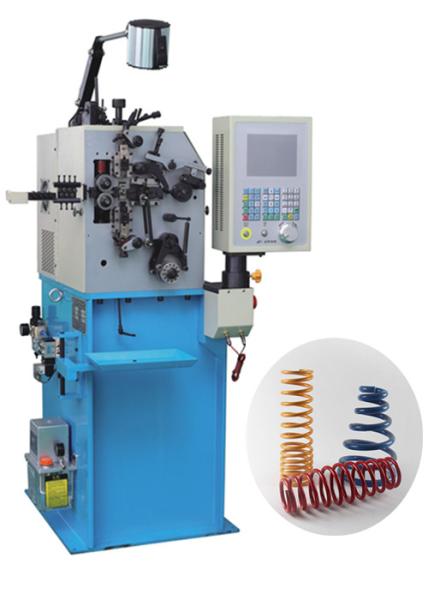

High Precision Coiling CNC Spring Machine Full Digital Drive For Oil Seal Springs
High Precision Coiling CNC Spring Machine Full Digital Drive For Oil Seal Springs
High Precision Coiling CNC Spring Machine Full Digital Drive For Oil Seal Springs
High Precision Coiling CNC Spring Machine Full Digital Drive For Oil Seal Springs
Specifications
Brand Name :
JD
Model Number :
JD-208B
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Supply Ability :
60 sets per month for cam spring forming machine
Delivery Time :
10-15 days after payment
Packaging Details :
Wooden case with protective material inside
Name :
High Precision Used Spring Coiling Machine Diameter 0.1 mm to 0.8 mm
Model :
JD-208B
Wire Diameter :
0.1 mm to 0.8 mm
Outside Diameter :
Max. 20 mm
Porduction Speed :
Max 550PCS per min
Wax Wire Feed Length :
Unlimited
Wire Feed Axis Servo Moter :
0.75 kw
Cam Axis Servo Moter :
0.75 kw
Monitor Display :
Color/Chinese/English
Machine Size :
80*65*145 cm
Weight :
500 kg
Power :
220V 3P 50/60 Hz
Feature :
Provide technical support unitl you can produce spring well
Description

High Precision Used Spring Coiling Machine Diameter 0.1 mm to 0.8 mm

Modle JD-208B Used Torsion Spring Machine
Wire Diameter 0.1mm-0.8mm
MAX Outer Diameter 20mm
Max. Production Speed 550pcs/min
Feed Length Unlimited
Send The Spool(Y) 0.75kw
The Camshaft(X) 0.75kw
Monitor Display Color/Chinese/English
The Machine Size 80*65*145cm
Machine Weights 500kg
Power 220V 3P 50/60Hz
Packing Wooden case

Description

Used Spring Coiling Machine

1.Wire Diameter range from 0.q mm to 0.8 mm.

2.Max outer diameter up to 20 mm.

3.2-axis control, for wire feed and pitch mechanism.

4.High precision equipped with CNC controlled servo-motion system

5.High production speed Max. up to 550 pcs/min..

6.Simplified setup and program with English/Chinese platform.

7.Capable of various kind of springs such as compression springs, oil seal springs, taper springs, battery springs and so on.

Feeture

It has the advantages of traditional spring machines, also have high speed and accuracy of modern spring machine with computer-controlled servo system.

1.Using servo control system and full digital drive. Camshaft can rotate positive and negative, wire sending spool can send wires forward and back.

2.Using large numbers (Matrix) touch screen, keys simultaneously with the film, so make ore easier of computer operation.

3.Using micro current detection technology exclusively, to achieve high sensitivity probe, no need deceleration while detection, and 20 times sensitive than ordinary.

4.It can increase or decrease capacity by turning the hand wheel at any time while producing. And also allows wire sending spool increase or decrease the length of wires.

5.Unique wire-sending shelf with integration function module, can save complicated circuit of traditional wire-sending shelf, and allows computer control the motor of wire-sending shelf directly.

6.All computer output external circuits, use contact short circuit protection technology, save trouble of replacing fuse.

7.The spring machine has automatic oiling function, no need manual oiling.

Technical Support

Using used torsion spring machine produce out good springs need rich-experience and skilled workers, however most of the users are lack of skilled workers, they can not produce springs nice and fast.

Many factories do not provide after-sales service of machines in oversea market because of many difficults, but we will not.

1.Instruction book is the most basic thing.

2.You can tell the specs of the springs to us, we will make a video for you.

3.We have some HD camears for machines display, and these camears are connecting with the Internet, we can show anything you want to know under your requests through the Internet simultaneously.

4.Everytime you come to China, wellcome your visit and welcome to study.

5.We can send engineers and translators to your country, the cost need to share.

Spring Sample

High Precision Coiling CNC Spring Machine Full Digital Drive For Oil Seal Springs

Compare with other brand cam spring forming machine

Our machine committed to the pursuit of stability and precision, all mainly accessories of the spring machine, such as wheel gear, motor, bearing are all importing form Japan. Besides, we will do enough producing processes to ensure the stability and pricision as well. for example, we do steel pretreatment to prevent deformation, 12 steps of producing parts to ensure precision.

Make it more clearly with numbers, our machine can finsih adjustment in half an hour before producing, and continue producing for 1 hour without any adjustment more, other machines may need 1.5 or 2 hour to finish adjustment before producing, and check or adjust the machine every 15 mins, because their machines are not stable and precision enough.
