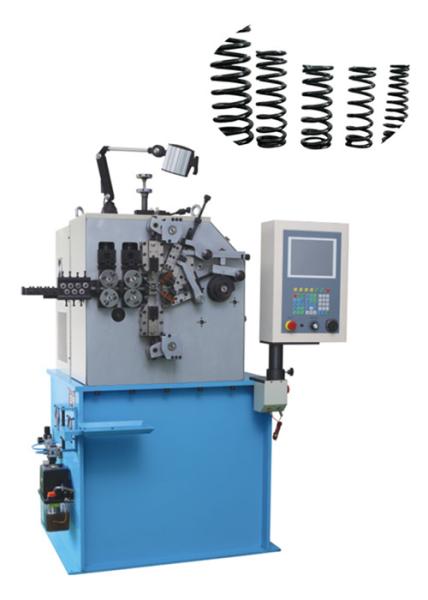

High Accuracy Stability Used Battery Spring Forming Machine Max Outer Diameter 50 mm
High Accuracy Stability Used Battery Spring Forming Machine Max Outer Diameter 50 mm
High Accuracy Stability Used Battery Spring Forming Machine Max Outer Diameter 50 mm
High Accuracy Stability Used Battery Spring Forming Machine Max Outer Diameter 50 mm
Specifications
Brand Name :
JD
Model Number :
JD-330
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Customiza
Supply Ability :
60 sets per month for helical spring making machine
Delivery Time :
10-15 days after payment
Packaging Details :
124*122*198cm Wooden case with protective material inside
Name :
High Accurate Stability Used Bettery Spring Machine Max Outer Diameter 50 mm
Model :
JD-330
Wire Diameter :
0.8 mm to 3.0 mm
Outside Diameter :
Max. 50 mm
Porduction Speed :
Max 250PCS per min
Max Wire Feed Length :
Unlimited
Wire Feed Axis Servo Moter :
4.5 kw
Cam Axis Servo Moter :
2.7 kw
Monitor Display :
Color/Chinese/English
Machine Size :
120*120*170 cm
Weight :
1000 kg
Power :
220V 3P 50/60 Hz
Feature :
Provide technical support unitl you can produce spring well
Description

High Accurate Stability Used Bettery Spring Machine Max Outer Diameter 50 mm

Quick Details

Place of Origin: GuangDong, China (Mainland) Brand Name: JD Model Number: JD-330
Name: mattress spring making machine Power: 220V 1.5KW Stainless steel diameter: 1- 3 mm
Max.Spring outer diameter: 50 mm Feeding Length: limitless Feeding Way: using overrunning clutch feeding
Spring rotary orientation: Left and right Processing speed: stepless speed regulation Weight: 600kg
Dimension: 124*122*198cm
Technology

Name mattress spring making machine
Power 1.5KW
Voltage 220V/380V
Stainless steel diameter 1- 3 mm
Max.Spring outer diamater 50 mm
Feeding Length limitless
Feeding Way overrunning clutch feeding
Spring rotary orientation Left and right
Processing speed stepless speed regulation
Dimension 124*122*198cm
Weight 600kg

Modle JD-330
Wire Diameter 0.8mm-3.0mm
MAX Outer Diameter 50mm
Max. Production Speed 250pcs/min
Feed Length Unlimited
Send The Spool(Y) 4.5kw
The Camshaft(X) 2.7kw
Outside Diameter Shaft －
Pitch Axis 1.2kw
Monitor Display Color/Chinese/English
The Machine Size 124*122*198cm
Machine Weights 1000kg
Power 220V 3P 50/60Hz

Description

Used Bettery Spring Machine

1. Wire Diameter range from 0.06 mm to 0.5 mm.

2. Max outer diameter up to 15 mm.

3. 2-axis control, for wire feed and pitch mechanism.

4. High precision equipped with CNC controlled servo-motion system

5. High production speed Max. up to 400 pcs/min..

6. Simplified setup and program with English/Chinese platform.

7. Capable of various kind of springs such as compression springs, oil seal springs, taper springs, battery springs and so on.

Spring Sample

High Accuracy Stability Used Battery Spring Forming Machine Max Outer Diameter 50 mm

Our Services

1 Professional and patient consulting service to help you find the suitable solution.

2 Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.

3 Powerful control of the machine production schedule and quality, and keep you posted about details in time.

4 Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.

5 Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.

6 For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.

7 For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.

FAQ

1. Q: What is the power supply of the machine?

A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.

2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc

3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.

5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
