Shock Proof Tungsten Carbide Round Bar Steel Stepped Shank For Machine Tools Clamping
Shock Proof Tungsten Carbide Round Bar Steel Stepped Shank For Machine Tools Clamping
Shock Proof Tungsten Carbide Round Bar Steel Stepped Shank For Machine Tools Clamping
Shock Proof Tungsten Carbide Round Bar Steel Stepped Shank For Machine Tools Clamping
Specifications
Brand Name :
HIPPSC
Model Number :
HWA25-M12-A240-300
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
5 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
5000 pcs Per Month
Delivery Time :
2~15 days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Material :
Tungsten Steel
Shank Type :
Stepped
OEM /ODM :
Yes
Product Type :
Threaded Tungsten Steel Extension Rod
Application :
Holding Boring Bar And Milling Cutter
Description

Shock Proof Tungsten Steel Carbide Rod For Application Of Machine Tools Clamping



Ⅰ​. Features

  • Made from fully tungsten steel.
  • High rigidity, good shock resistance.
  • Extending processing dept, improving the surface quality.
  • Super precision in deep hole machining.
  • Suits abundant indexable boring bar/head.
  • Easy operation and quick tool change, save time and improve efficiency.
  • Reduce interference in maching.

Ⅱ. Technical Parametes ​

Product Name

Stepped Shank Tungsten Steel Rod

Shank type

Stepped

Clamp diameter

24 mm

Extension length

 300

Contact type

Screw bolt

Product Material

Tungsten steel

Application

Boring head, Milling and drilling cutter

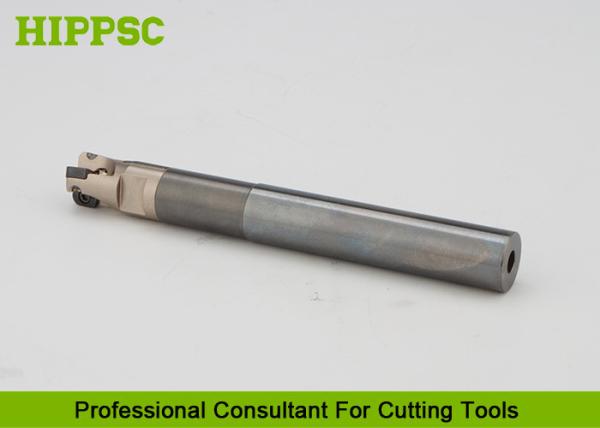

Ⅲ. Product Show

Shock Proof Tungsten Carbide Round Bar Steel Stepped Shank For Machine Tools Clamping

Available Standard Items

Model Number L1 L2 D1 D2 D3 D4 M
HWA08-M04-A25-75 75 50 7.8 4.5 2 8 M04
HWA08-M04-A50-100 100 50 7.8 4.5 2 8 M04
HWA10-M05-A25-75 75 50 9.8 5.5 3 10 M05
HWA10-M05-A50-100 100 50 9.8 5.5 3 10 M05
HWA10-M05-A75-125 125 50 9.8 5.5 3 10 M05
HWA10-M05-A100-150 150 50 9.8 5.5 3 10 M05
HWA10-M06-A25-75 75 50 9.8 6.5 3 10 M06
HWA10-M06-A50-100 100 50 9.8 6.5 3 10 M06
HWA10-M06-A75-125 125 50 9.8 6.5 3 10 M06
HWA10-M06-A100-150 150 50

9.8

 6.5 3 10 M06
HWA12-M06-A25-75 75 50 11.6 6.5 3 12 M06
HWA12-M06-A50-100 100 50 11.6 6.5 3 12 M06
HWA12-M06-A75-125 125 50 11.6 6.5 3 12 M06
HWA12-M06-A100-150 150 50 11.6 6.5 3 12 M06
HWA16-M08-A45-100 100 55 15.4 8.5 4 16 M08
HWA16-M08-A95-150 150 55 15.4 8.5 4 16 M08
HWA16-M08-A145-200 200 55 15.4 8.5 4 16 M08
HWA20-M10-A90-150 150 60 19 10.5 4 20 M10
HWA20-M10-A140-200 200 60 19 10.5 4 20 M10
HWA20-M10-A190-250 250 60 19 10.5 4 20 M10
HWA25-M12-A90-150 150 60 24 12.5 6 25 M12
HWA25-M12-A140-200 200 60 24 12.5 6 25 M12
HWA25-M12-A190-250 250 60 24 12.5 6 25 M12
HWA25-M12-A240-300 300 60 24 12.5 6 25 M12
HWA32-M16-A135-200 200 65 31 17 8 32 M16
HWA32-M16-A185-250 250 65 31 17 8 32 M16
HWA32-M16-A235-300 300 65 31 17 8 32 M16
HWA32-M16-A285-350 350 65 31 17 8 32 M16
HWA32-M16-A335-400 400 65 31 17 8 32 M16


Ⅳ. Products Overview

  1. Stepped Shank Tungsten Steel Rod witih screw hole.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Rapid Changing CNC Tool Bits.

Ⅴ​. Shipment​
By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.


Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Arrange Delivery Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.


Ⅷ. Warranty

  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service, Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
