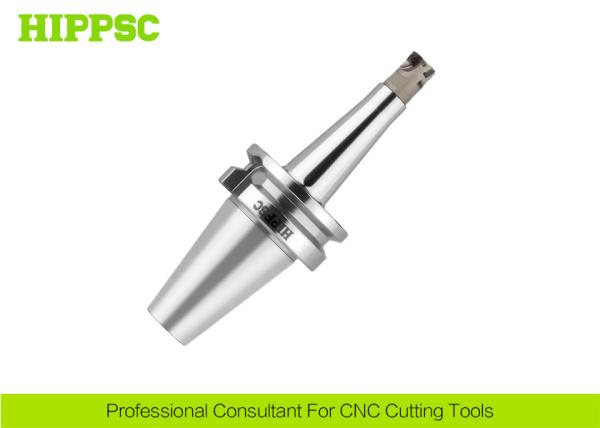

CNC Tool Holders Solid Carbide Cutter 20Crnimo For Deep Hole Machining
CNC Tool Holders Solid Carbide Cutter 20Crnimo For Deep Hole Machining
CNC Tool Holders Solid Carbide Cutter 20Crnimo For Deep Hole Machining
CNC Tool Holders Solid Carbide Cutter 20Crnimo For Deep Hole Machining
CNC Tool Holders Solid Carbide Cutter 20Crnimo For Deep Hole Machining
CNC Tool Holders Solid Carbide Cutter 20Crnimo For Deep Hole Machining
Specifications
Brand Name :
HIPPSC
Model Number :
BT30-M08-60
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
5 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
2000pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Product Type :
Theading Tool Holder
Spindle Type :
BT
Material :
20Crnimo
Taper :
AT3
Clamping Diameter :
M06~M16
Color :
Silver
Description

CNC Tool Holders Solid Carbide Cutter 20Crnimo For Deep Hole Machining


Ⅰ​. Features

  1. Holding variety of milling and drilling tools with screw bolt.
  2. Through the screw thread lock, simple and convenient.
  3. The Arbor is holded tightly through taper shank and end face two sides, the
    accuracy and stability are much higher than others.
  4. Better surface quality and runout.
  5. Excellent seismic resistance
  6. High precision, various specifications, high quality and sufficient stoc

Ⅱ. Technical Parametes ​

Product Name

Thread Screw Tool Holder

Spindle Type

BT

Screw hole size

M16

Beat accuracy

<3μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20Crnimo

Hardness

HRC58~60°
Taper tolerance AT3


Ⅲ. Product Information

CNC Tool Holders Solid Carbide Cutter 20Crnimo For Deep Hole Machining


Cat.No		 Chucking Dia D1 D2 L1 L2
Nut
Collet
Spanner
BT30-ER16-70 3.0-10.0 28 28 70 48 HN-ER16A ER16 HS-ER16A
BT30-ER16-100 3.0-10.0 28 28 100 78 HN-ER16A ER16 HS-ER16A
BT30-ER20-70 3.0-13.0 34 34 70 48 HN-ER20A ER20 HS-ER20A
BT30-ER20-100 3.0-13.0 34 34 100 78 HN-ER20A ER20 HS-ER20A
BT30-ER25-70 3.0-16.0 40 40 70 48 HN-ER25UM ER25 HS-ER25UM
BT30-ER25-100 3.0-16.0 40 40 100 78 HN-ER25UM ER25 HS-ER25UM
BT30-ER32-70 3.0-20.0 48 48 70 48 HN-ER32UM ER32 HS-ER32UM
BT30-ER32-100 3.0-20.0 48 48 100 78 HN-ER32UM ER32 HS-ER32UM
BT40-ER16-70 3.0-10.0 28 28 70 43 HN-ER16A ER16 HS-ER16A
BT40-ER16-100 3.0-10.0 28 28 100 73 HN-ER16A ER16 HS-ER16A
BT40-ER16-150 3.0-10.0 28 28 150 123 HN-ER16A ER16 HS-ER16A
BT40-ER20-70 3.0-13.0 34 34 70 43 HN-ER20A ER20 HS-ER20A
BT40-ER20-100 3.0-13.0 34 34 100 73 HN-ER20A ER20 HS-ER20A
BT40-ER20-150 3.0-13.0 34 34 150 123 HN-ER20A ER20 HS-ER20A
BT40-ER25-70 3.0-16.0 40 40 70 43 HN-ER25UM ER25 HS-ER25UM
BT40-ER25-100 3.0-16.0 40 40 100 73 HN-ER25UM ER25 HS-ER25UM
BT40-ER25-150 3.0-16.0 40 40 150 123 HN-ER25UM ER25 HS-ER25UM
BT40-ER32-70 3.0-20.0 48 48 70 43 HN-ER32UM ER32 HS-ER32UM
BT40-ER32-100 3.0-20.0 48 48 100 73 HN-ER32UM ER32 HS-ER32UM
BT40-ER32-150 3.0-20.0 48 48 150 123 HN-ER32UM ER32 HS-ER32UM
BT40-ER40-100 6.0-26.0 58 58 100 73 HN-ER40UM ER40 HS-ER40UM
BT40-ER40-150 6.0-26.0 58 58 150 123 HN-ER40UM ER40 HS-ER40UM
BT50-ER16-100 3.0-10.0 28 28 100 62 HN-ER16A ER16 HS-ER16A
BT50-ER16-150 3.0-10.0 28 28 150 112 HN-ER16A ER16 HS-ER16A
BT50-ER20-100 3.0-13.0 34 34 100 62 HN-ER20A ER20 HS-ER20A
BT50-ER20-150 3.0-13.0 34 34 150 112 HN-ER20A ER20 HS-ER20A
BT50-ER25-100 3.0-16.0 40 40 100 62 HN-ER25UM ER25 HS-ER25UM
BT50-ER25-150 3.0-16.0 40 40 150 112 HN-ER25UM ER25 HS-ER25UM
BT50-ER32-100 3.0-20.0 48 48 100 62 HN-ER32UM ER32 HS-ER32UM
BT50-ER32-150 3.0-20.0 48 48 150 112 HN-ER32UM ER32 HS-ER32UM
BT50-ER40-100 6.0-26.0 58 58 100 62 HN-ER40UM ER40 HS-ER40UM
BT50-ER40-150 6.0-26.0 58 58 150 112 HN-ER40UM ER40 HS-ER40UM


Ⅳ. Products Overview

  1. BT40 Threading Tool Holder.
  2. Torque Tap/Tapping Chuck.
  3. Morse Tap AdapterTools Holder.
  4. BT,BBT,SK,CAT,MAT,APU,NT,NBT,ISO,ST.
  5. Hydraulic Expansion Tool holder of BT/SK/HSK.
  6. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  7. Threaded/Screw-on/Thread Screw Tool Holders.
  8. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
Ⅴ​. Shipment​
By Sea; By Air; By Train.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Arrange Delivery Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty

  • High Accuracy Measuring Instruments and Technology.
  • Custom Made Service of Products and Packing.
  • Customer can find any products relating to CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • We are always customers and service oriented.
