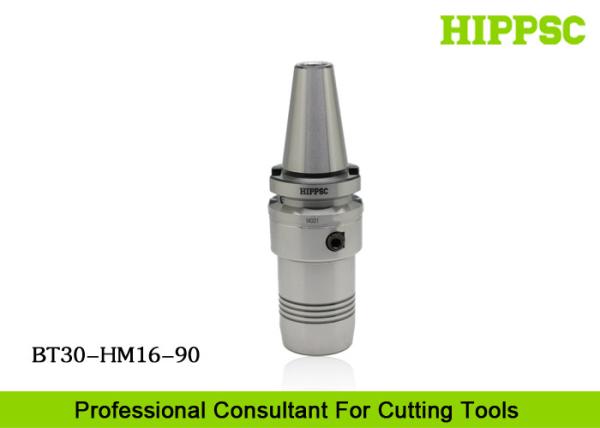

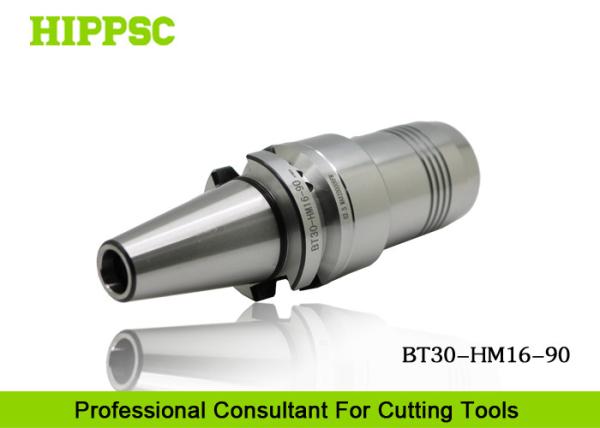

BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC
BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC
BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC
BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC
BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC
BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC
BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC
BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC
Specifications
Brand Name :
HIPPSC
Model Number :
BT30-HM12-90
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
20000 pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Spindle Type :
BT30
OEM/ODM :
Yes
Product Type :
Hydraulic Tool Holder
Runout :
0.003mm
Balance :
Available
Cutting Type :
Turing, Milling, Boring, Drilling
Material :
Special Steel
Application :
Hole Making Process and Precision Finishing
Clamp Range :
(3,4,5,6,7,8) mm
Description

BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC

Ⅰ​. Features And Advantages

1. 450nm moment of force, improve rigidity and accuracy..

2. It can go down to very deep place.

3. Running accuracy ≤ 0.003mm.

4. Good for finish machining.

Ⅱ. Technical Parametes ​

Product Name

CNC Hydraulic Tool Holder

Spindle Type

BT30

Clamping Range

4/6/8/10/12 mm (diameter)

Runout

0.003 μm

Processing Type

Milling, Face mill, Finishing machining, Hole making.

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product Introduction

CAD

BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC


Standard Items

Spanner and Collet are not included

Model number

D1

D2

D3

D4

L

L2max

L2min

V

L3

Collet

G

Spanner

Type

BT30-HM6-70

6

25

28

45

70

37.5

27.5

10

28

--

M5*0.8

T4

Fig1

BT30-HM8-70

8

27

30

70

37.5

27.5

28

--

M6*1.0

BT30-HM10-75

10

29

32

75

42.5

32.5

38

--

M8*1.0

BT30-HM12-75

12

31

34

75

47.5

37.5

34

OHM12

M8*1.0

BT30-HM14-85

14

33

36

85

47.5

37.5

44

--

M8*1.0

BT30-HM16-90

16

35

38

90

52.5

42.5

46

--

M10*1.0

BT30-HM18-90

18

38

41

90

52.5

42.5

48

--

M10*1.0

BT30-HM20-90

20

40

43

90

52.5

42.5

46

OHM20

M10*1.0

BT40-HM6-90

6

25

28

50

90

37.5

27.5

10

44.5

--

M5*0.8

T4

Fig1

BT40-HM8-90

8

27

30

90

37.5

27.5

44.5

--

M6*1.0

BT40-HM10-90

10

29

32

90

42.5

32.5

44.5

--

M8*1.0

BT40-HM12-90

12

31

34

90

47.5

37.5

44.5

OHM12

M8*1.0

BT40-HM14-90

14

33

36

90

47.5

37.5

44

--

M8*1.0

BT40-HM16-90

16

35

38

90

52.5

42.5

48

--

M10*1.0

BT40-HM18-95

18

38

41

95

52.5

42.5

48

--

M10*1.0

BT40-HM20-90

20

40

43

90

52.5

42.5

48

OHM20

M10*1.0

BT40-HM25-100

25

53

57

100

61.0

51

--

73

--

M16*1.0

T5

Fig2

BT40-HM32-105

32

60

63

105

65.0

55

78

OHM32

M16*1.0

BT50-HM12-90

12

31

34

90

47.5

37.5

10

32

OHM12

M8*1.0

T4

Fig1

BT50-HM20-90

20

40

43

90

52.5

42.5

32

OHM20

M10*1.0

BT50-HM32-115

32

60

63

--

115

65.0

55

--

77

OHM32

M16*1.0

T5

Fig2

BT50-HM6-90

6

25

28

50

90

37.5

27.5

10

32

--

M5*0.8

T4

Fig1

BT50-HM8-90

8

27

30

90

37.5

27.5

32

--

M6*1.0

BT50-HM10-90

10

29

32

90

42.5

32.5

32

--

M8*1.0

BT50-HM12-90

12

31

34

90

47.5

37.5

32

OHM12

M8*1.0

BT50-HM14-90

14

33

36

90

47.5

37.5

32

--

M8*1.0

BT50-HM16-90

16

35

38

90

52.5

42.5

32

--

M10*1.0

BT50-HM18-90

18

38

41

90

52.5

42.5

32

--

M10*1.0

BT50-HM20-90

20

40

43

90

52.5

42.5

32

OHM20

M10*1.0

BT50-HM25-105

25

53

57

--

105

61

51

67

--

M16*1

T5

Fig2

BT50-HM32-115

32

60

63

115

65

55

77

OHM32

M16*1

Precision

3～6

6.1～10

10.1～14

14.1～18

18.1～24

24.1～30

H6

0-8UM

0-9UM

0-11UM

0-11UM

0-13UM

0-13UM



<

Model Number D1 D2 L1 L2 d
HM12-3 12 16 44.5 2 3
-4 4
-5 5
-6 6
-7 7
-8 8
HM20-3 20 24 50.5 2 3
-4 4
-5 5
-6 6
-7 7
-8 8
-9 9
-10 10
-11 11
-12 12
-13 13
-14 14
-15 15
-16 16
HM32-6 32 36 60.5 3 6
-8 8
-10 10
-12 12
-14 14
-16 16
-18 18
-20 20
-25 25


Ⅳ. Overview for HIPPSC Products

1. BT30 With12mm Diameter Hydraulic Tool Holder/Arbor with L 90mm.

2. Enough Types of BT/BBT/DIN/SK/CAT/HSK/ISO/NT/NBT To Meet Customer Demand.

3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.

4. Threaded/Screw-on/Thread Screw Tool Holders.

5. Back Lock/Side Lock Tool Holders.

6. Mirror Finishing​ Tool Holders.

7. Morse Taper/Tapering Tool Holders.

8. Face Milling Adapters/Cutter And Inserts/Blades.

9. CNC Drilling Chucks.

10. Torque Floating Tap/Tapping Chuck.

​11. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

12. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
13. Torque/ Round/Circle Spanners/Wrenches/Keys.

14. Edge finder/Tool Holder Tightening Fixture/Table.

15. Indexable PCBN/PCD Blade/Cutters/Inserts.

16. Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.

Ⅴ​. Shipmen​
1. Choose from: By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

2. Customer advised

Ⅵ. Packing


With Slushing oil.
Fastened by adhesive Tape.
Packing Belt to Strap.
PE Bag Inner package.
Plastic Box to pocess abor.
Carton Box For All goods.

Ⅶ. Warehouse


1. Quick response and On-time dispatchment For Customers' Order, Within 2 days at soonest.
2. All Materials and Products Are Inspected Strictly and Carefully Before Shipping out.

3. Both IQC and OQC Guarrantee Quality.
4. Using Professional Equipment and Gauge To Exam Technical Parameters.

BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC

Ⅷ. Manufacturing and Sales Service


1. Professional Equipments, Special Technology, Experienced Workers.
2. Offer OEM&ODM , Custom Made Service Based On Custom's Real Demand.
3. One-Stop Service For CNC Cutting Tools Using.
​4. Warranty 12 Months, Free Repairing Service.
5. Replacing Old Item For New One, With Possible No Extra Fee.
