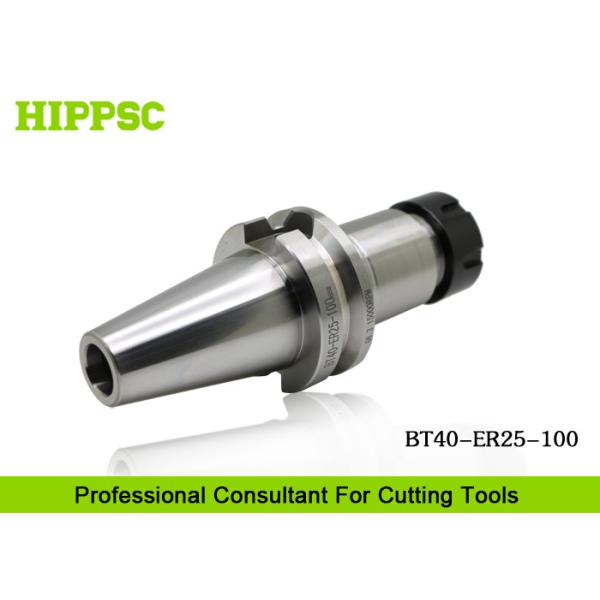

Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC
Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC
Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC
Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC
Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC
Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC
Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC
Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC
Specifications
Brand Name :
HIPPSC
Model Number :
BT40-ER25-100
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
20000 pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Spindle Type :
BT40
Customized Service :
Available
Product Type :
ER Tool Holder
Runout :
0.003mm
Cutting Type :
Milling and Drilling
Material :
20CrNiMo
Description

Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC



Ⅰ​. Features

  1. Swiss type non-eccentric clamp nut.
  2. Run-out ≤ 0.003mm.
  3. Taper tolerance<AT3
  4. Made from material of alloy steel.
  5. Use for milling and drilling.
  6. Balancing available, can be customized based on G6.3
  7. Good rigidity and chip discharge.
  8. Good Surface finish quality , Increased feed rate.
  9. Good heat resistance , can use for high speed processing.
  10. Coating can be made on customer's requirement.
  11. High wear-resistance.

Ⅱ. Technical Parametes ​

Product Name

ER Collet Tool Holder

Spindle Type

BT40

Clamping Range

 3mm-16mm

Beat accuracy

≤ 0.003mm

Processing Type

Endmilling, Drilling, Finishing

Product Material

20CrNiMo

Hardness

HRC58~60°


Ⅲ. Product Show



Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC

Clamp Nuts ER Tool Holders for CNC Machining Center , BT40 Tool Holder CNC


Available Standard Items

Model No. d D1 D2 D3 L1 L2 M Nut Collet Spanner
BT40-ER16-70 3～10 28 28 63 70 43 M22*1.5 HN-ER16A ER16 HS-ER16A
BT40-ER16-100 3～10 28 28 63 100 73 M22*1.5 HN-ER16A ER16 HS-ER16A
BT40-ER16-150 3～10 28 28 63 150 123 M22*1.5 HN-ER16A ER16 HS-ER16A
BT40-ER20-70 3～13 34 34 63 70 43 M25*1.5 HN-ER20A ER20 HS-ER20A
BT40-ER20-100 3～13 34 34 63 100 73 M25*1.5 HN-ER20A ER20 HS-ER20A
BT40-ER20-150 3～13 34 34 63 150 123 M25*1.5 HN-ER20A ER20 HS-ER20A
BT40-ER25-70 3～16 42 40 63 70 43 M32*1.5 HN-ER25UM ER25 HS-ER25UM
BT40-ER25-100 3～16 42 40 63 100 73 M32*1.5 HN-ER25UM ER25 HS-ER25UM
BT40-ER25-150 3～16 42 40 63 150 123 M32*1.5 HN-ER25UM ER25 HS-ER25UM
BT40-ER32-70 3～20 50 48 63 70 43 M40*1.5 HN-ER32UM ER32 HS-ER32UM
BT40-ER32-100 3～20 50 48 63 100 73 M40*1.5 HN-ER32UM ER32 HS-ER32UM
BT40-ER32-150 3～20 50 48 63 150 123 M40*1.5 HN-ER32UM ER32 HS-ER32UM
BT40-ER40-100 6～26 63 58 63 100 73 M50*1.5 HN-ER40UM ER40 HS-ER40UM
BT40-ER40-150 6～26 63 58 63 150 123 M50*1.5 HN-ER40UM ER40 HS-ER40UM


Ⅳ. Products Overview

  1. BT40 ER Collet Spring Tool Holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Rapid Changing CNC Tool Bits.

Ⅴ​. Shipment​
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.
Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Arrange Delivery Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty

  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service, Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
