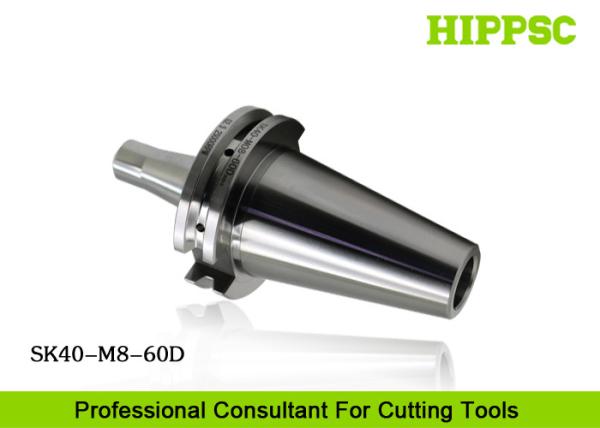

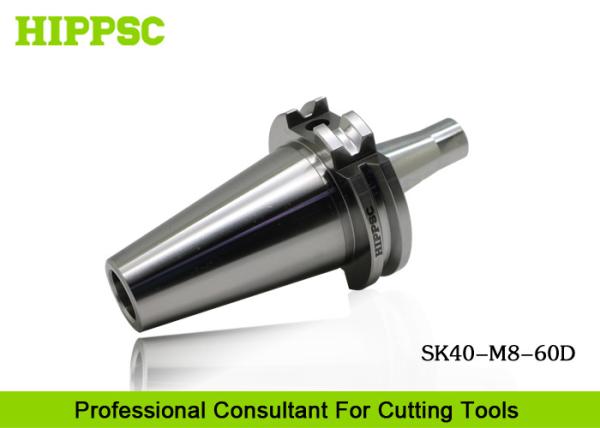

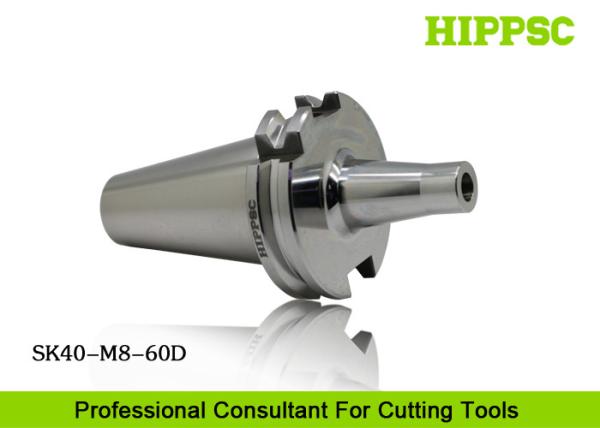

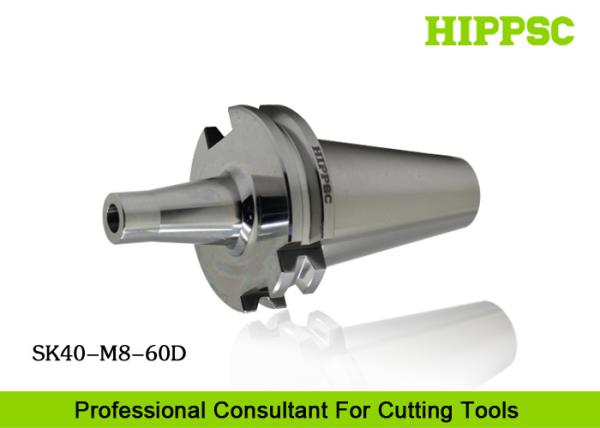

High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting
High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting
High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting
High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting
High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting
High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting
High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting
High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting
Specifications
Brand Name :
HIPPSC
Model Number :
SK40-M8-60D
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
20000 pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Application :
Semi Precision Finishing
Spindle Type :
SK40
Clamp Type :
Through screw bolts
Customized Service :
Available
Runout :
< 3μm
Cutting Type :
EndMilling, Reaming, Drilling
Material :
Special Steel
Description

SK40 Screw In Milling Tool Holder Special Steel Drilling Cutting



Ⅰ​. Features

  1. Cutting tools are connected through screw bolt of tools.
  2. Much suitable for tungsten steel tools.
  3. Through the screw thread to lock, very simple and convenient.
  4. Nice rigidity, cutting fast, high efficient.
  5. Wide applications for variety of quick change tools.

Ⅱ. Technical Parametes ​

Product Name

Threading Tool Holder

Spindle Type

SK40

Screw hole standard

M8

Beating accuracy

<3μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20CrNiMo

Hardness

HRC58~60°


Ⅲ. Product Show

CAD
High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting

Available Standard Products

Part Number L1 L2 D1 M α
SK40-M08-60 60 12 12.8 M08 7°
SK40-M08H-60 60 12 15.4 M08 7°
SK40-M08-90 90 12 12.8 M08 7°
SK40-M08H-90 90 12 15.4 M08 7°
SK40-M08-135 135 12 12.8 M08 7°
SK40-M08H-135 135 12 15.4 M08 7°
SK40-M10S-60 60 12 15.4 M10 7°
SK40-M10-60 60 12 17.8 M10 7°
SK40-M10S-90 90 12 15.4 M10 7°
SK40-M10-90 90 12 17.8 M10 7°
SK40-M10S-135 135 12 15.4 M10 7°
SK40-M10-135 135 12 17.8 M10 7°
SK40-M12-60 60 12 20.8 M12 6°
SK40-M12H-60 60 12 23 M12 6°
SK40-M12-90 90 12 20.8 M12 6°
SK40-M12H-90 90 12 23 M12 6°
SK40-M12-135 135 12 20.8 M12 6°
SK40-M12H-135 135 12 23 M12 6°
SK40-M16-60 60 12 28.8 M16 6°
SK40-M16H-60 60 12 38 M16 6°
SK40-M16-90 90 12 28.8 M16 6°
SK40-M16H-90 90 12 38 M16 3°
SK40-M16-135 135 12 28.8 M16 6°
SK50-M08-60 60 12 12.8 M08 7°
SK50-M08H-60 60 12 15.4 M08 7°
SK50-M08-90 90 12 12.8 M08 7°
SK50-M08H-90 90 12 15.4 M08 7°
SK50-M08-135 135 12 12.8 M08 7°
SK50-M08H-135 135 12 15.4 M08 7°
SK50-M10S-60 60 12 15.4 M10 7°
SK50-M10-60 60 12 17.8 M10 7°
SK50-M10S-90 90 12 15.4 M10 7°
SK50-M10-90 90 12 17.8 M10 7°
SK50-M10S-135 135 12 15.4 M10 7°
SK50-M10-135 135 12 17.8 M10 7°
SK50-M12-60 60 12 20.8 M12 6°
SK50-M12H-60 60 12 23 M12 6°
SK50-M12-90 90 12 20.8 M12 6°
SK50-M12H-90 90 12 23 M12 6°
SK50-M12-135 135 12 20.8 M12 6°
SK50-M12H-135 135 12 23 M12 6°
SK50-M16-60 60 12 28.8 M16 6°
SK50-M16H-60 60 12 38 M16 6°
SK50-M16-90 90 12 28.8 M16 6°
SK50-M16H-90 90 12 38 M16 3°
SK50-M16-135 135 12 28.8 M16 6°

The above items can be supplied very soon.


Ⅳ. Products Overview

  1. SK40 Screw-In Tool Holder.
  2. Hydraulic Expansion Tool holder of BT/SK/HSK/ISO Standard.
  3. Shrink-Fit/Heat Shrinking and Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Rapid Changing CNC Tool Bits.

Ⅴ​. Shipment​
By Sea; By Air; By Train/Truck

TNT, EMS, DHL, UPS, FedEx


High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.

Ⅶ. Warehouse

  1. Arrange Delivery Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.


High Quality SK40 Threading Tool Holder / Screw Milling Tool Holder Special Steel Drilling Cutting


Ⅷ. Warranty

  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service, Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
