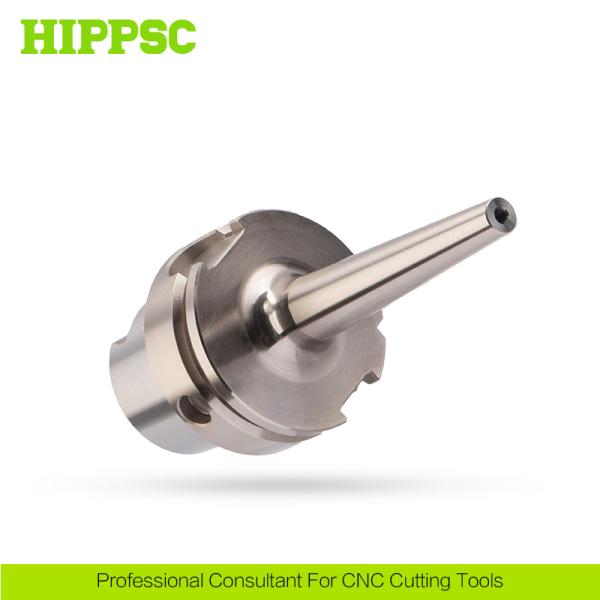

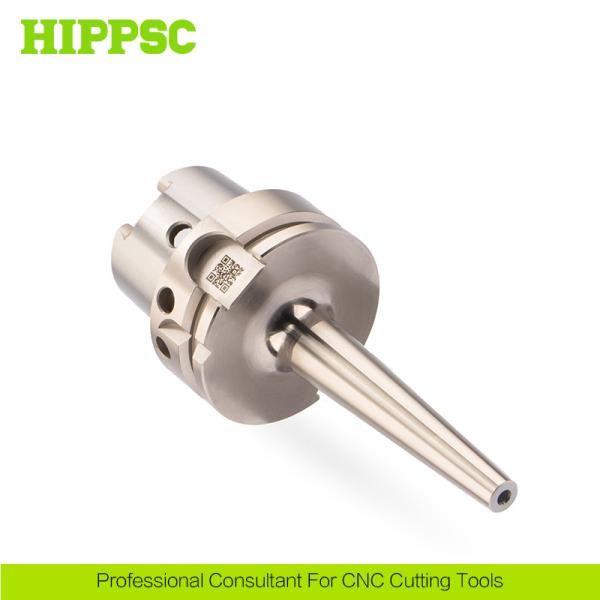

CNC MachineAnti-interference Design Shrink Fit Holder HSK Tool Holder
CNC MachineAnti-interference Design Shrink Fit Holder HSK Tool Holder
CNC MachineAnti-interference Design Shrink Fit Holder HSK Tool Holder
CNC MachineAnti-interference Design Shrink Fit Holder HSK Tool Holder
CNC MachineAnti-interference Design Shrink Fit Holder HSK Tool Holder
CNC MachineAnti-interference Design Shrink Fit Holder HSK Tool Holder
Specifications
Brand Name :
HIPPSC
Model Number :
HSK63A-SRS04-80TRN
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
5000 pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Spindle Type :
HSK
Product Name :
Shrink Fit Holder
Taper :
AT3
Precision :
High Precision
Color :
Silver
Transport :
By Sea; By Air; By Train/Truck.
Description

CNC MachineAnti-interference Design Shrink Fit Holder HSK Tool Holder


Ⅰ​. Features And Advantages

1. High regidity and stability.

2. Runout <0.003mm at 4X D.

3. Durable, increase tools life and save cost.

4. The toolholder clamp tools directly without collets or nuts.
5. High repeat accuracy, 2000 times more clamping tools.

6. High surface quality, finishing machinng.


Ⅱ. Technical Parametes ​

Product Name

Heat Shrinking Tool Holder

Spindle Type

HSK

Clamping Range

4~32mm

Runout

<0.003mm

Processing Type

Deep Hole Finishing Machining.

Product Material

Special steel

Hardness

HRC48~52°


Ⅲ. Product Introduction


CNC MachineAnti-interference Design Shrink Fit Holder HSK Tool Holder

Standard Items

Type D1 D2 D3 L1 L2 N A
HSK63A-SRS04-80TRN 4 10 15 80 － － 3°
HSK63A-SRS04-120TRN 4 10 19 120 － － 3°
HSK63A-SRS04-160TRN 4 10 24 160 － － 3°
HSK63A-SRS06-80TRN 6 12 17 80 － － 3°
HSK63A-SRS06-120TRN 6 12 21 120 － － 3°
HSK63A-SRS06-160TRN 6 12 26 160 － － 3°
HSK63A-SRS08-80TRN 8 14 19 80 40 10 3°
HSK63A-SRS08-120TRN 8 14 23 120 40 10 3°
HSK63A-SRS08-160TRN 8 14 28 160 40 10 3°
HSK63A-SRS10-85TRN 10 16 22 85 46 10 3°
HSK63A-SRS10-120TRN 10 16 25 120 46 10 3°
HSK63A-SRS10-160TRN 10 16 30 160 46 10 3°
HSK63A-SRS12-90TRN 12 18 24 90 50 10 3°
HSK63A-SRS12-120TRN 12 18 27 120 50 10 3°
HSK63A-SRS12-160TRN 12 18 32 160 50 10 3°
HSK63A-SR04-80TRN 4 15 20 80 － － 4.5°
HSK63A-SR06-80TRN 6 21 27 80 － － 4.5°
HSK63A-SR06-120TRN 6 21 27 120 － － 4.5°
HSK63A-SR06-160TRN 6 21 32 160 － － 4.5°
HSK63A-SR08-80TRN 8 21 27 80 40 10 4.5°
HSK63A-SR08-120TRN 8 21 27 120 40 10 4.5°
HSK63A-SR08-160TRN 8 21 32 160 40 10 4.5°
HSK63A-SR10-85TRN 10 24 32 85 46 10 4.5°
HSK63A-SR10-120TRN 10 24 32 120 46 10 4.5°
HSK63A-SR10-160TRN 10 24 34 160 46 10 4.5°
HSK63A-SR12-90TRN 12 24 32 90 50 10 4.5°
HSK63A-SR12-120TRN 12 24 32 120 50 10 4.5°
HSK63A-SR12-160TRN 12 24 34 160 50 10 4.5°
HSK63A-SR16-95TRN 16 27 34 95 52 10 4.5°
HSK63A-SR16-120TRN 16 27 34 120 52 10 4.5°
HSK63A-SR16-160TRN 16 27 34 160 52 10 4.5°
HSK63A-SR20-100TRN 20 33 42 100 54 10 4.5°
HSK63A-SR20-120TRN 20 33 42 120 54 10 4.5°
HSK63A-SR20-160TRN 20 33 42 160 54 10 4.5°
HSK63A-SR25-115TRN 25 44 52.5 115 62 10 4.5°
HSK63A-SR25-160TRN 25 44 52.5 160 62 10 4.5°
HSK63A-SR32-120TRN 32 44 52.5 120 67 10 4.5°
HSK63A-SR32-160TRN 32 44 52.5 160 67 10 4.5°


Ⅳ. Overview for HIPPSC Products

  1. BT40 90mm Clamping Heat Shrinking Tool Holders.
  2. High Speed ER/SK/GER/GSK Tool Holder for CNC Working.
  3. Threaded/Screw-on/Thread Screw Tool Holders.
  4. Back Lock/Side Lock Tool Holders.
  5. Tool Holders/Arbors/Shanks for Mirror Finishing.
  6. Morse Taper/Tapering Tool Holders/Shanks.
  7. Face Milling Adapters.
  8. Torque Floating Tap/Tapping Chuck and Collet.
  9. ER/SK/Hydraulic/Back lock/Floating tapping Collet
Ⅴ​. Shipmen​t
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1. Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
3. Using Special Equipment and Gauge To Check Technical Parameters.
CNC MachineAnti-interference Design Shrink Fit Holder HSK Tool Holder
Ⅷ. Manufacturing and Sales Service

1. Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2. OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3. Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
