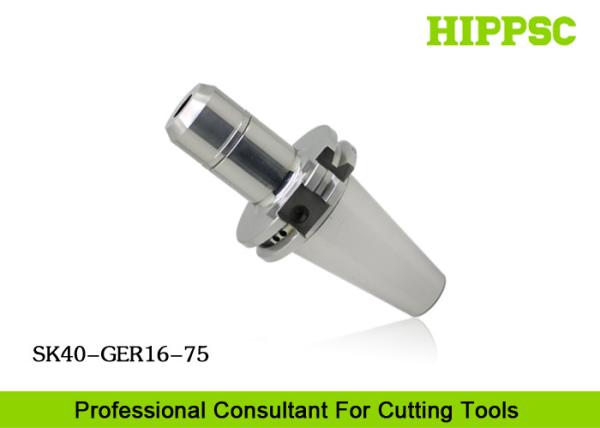

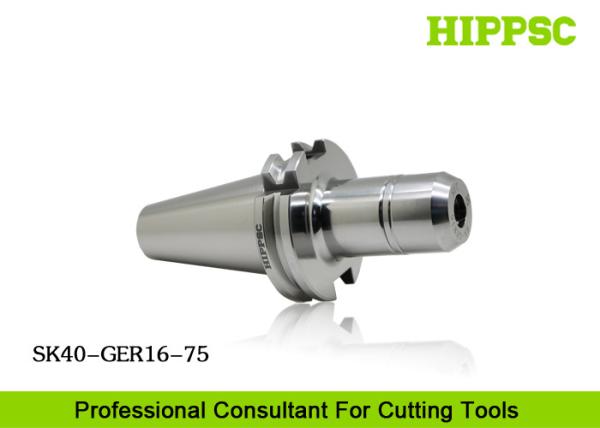

SK 40 Din 69871 ER Tool Holder High Rotation Speed with ER Collect And Round Nut
SK 40 Din 69871 ER Tool Holder High Rotation Speed with ER Collect And Round Nut
SK 40 Din 69871 ER Tool Holder High Rotation Speed with ER Collect And Round Nut
SK 40 Din 69871 ER Tool Holder High Rotation Speed with ER Collect And Round Nut
Specifications
Brand Name :
HIPPSC
Model Number :
SK40-GER16-75
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
20000 pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Taper :
7:24
Spindle Type :
SK40
OEM/ODM :
Yes
Product Type :
SK40 GER Tool Holder
Runing Accuracy :
0.003mm
Machining :
Turing, Milling, Boring, Drilling, Finishing
Material :
Special Steel
Description

SK 40 Din 69871 ER Tool Holder High Rotation Speed with ER Collect

Ⅰ​. Features And Advantages

  1. 50% More torque forcer though T bolts, lock cutting tools tightly.
  2. GER ring nut reduce wind-resistance and noise.
  3. For high speed machining with > 30000rpm.
  4. Suitable for lathe and machining center with 7:24 Spindle.
  5. Work with HIPPSC GER collet with patent, high speed and accuracy.
  6. High quality ER collect 100% touching conical surface, good concentricity.
  7. Wonderful repeat accuracy.
  8. High regidity and high clamping force.

Ⅱ. Technical Parametes

Product Name

GER High Speed Tool Hoder

Spindle Type

SK40

Clamping Range

3mm~10 mm

Runout

0.003mm

Processing Type

High speed machining and finishing

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product Introduction

SK 40 Din 69871 ER Tool Holder High Rotation Speed with ER Collect And Round Nut

Standard Items

Model Number Dlamp range d D1 D2 L M Nut Collet Spanner
SK40-GER16-75 3.0-10.0 30 30.5 75 TR22*1.5 HN-GER16 ER16 GH30
SK40-GER16-90 3.0-10.0 30 30.5 90 TR22*1.5 HN-GER16 ER16 GH30
SK40-GER16-120 3.0-10.0 30 30.5 120 TR22*1.5 HN-GER16 ER16 GH30
SK40-GER20-75 3.0-13.0 35 35.5 75 TR26*1.5 HN-GER20 ER20 GH35
SK40-GER20-90 3.0-13.0 35 35.5 90 TR26*1.5 HN-GER20 ER20 GH35
SK40-GER20-120 3.0-13.0 35 35.5 120 TR26*1.5 HN-GER20 ER20 GH35
SK40-GER25-75 3.0-16.0 40 40.5 75 TR32*1.5 HN-GER25 ER25 GH40
SK40-GER25-90 3.0-16.0 40 40.5 90 TR32*1.5 HN-GER25 ER25 GH40
SK40-GER25-120 3.0-16.0 40 40.5 120 TR32*1.5 HN-GER25 ER25 GH40
SK40-GER32-75 3.0-20.0 48 48.5 75 TR40*1.5 HN-GER32 ER32 GH48
SK40-GER32-90 3.0-20.0 48 48.5 90 TR40*1.5 HN-GER32 ER32 GH48
SK40-GER32-120 3.0-20.0 48 48.5 120 TR40*1.5 HN-GER32 ER32 GH48



SK50-GER16-105 3.0-10.0 30 30.5 105 TR22*1.5 HN-GER16 ER16 GH30
SK50-GER16-135 3.0-10.0 30 30.5 135 TR22*1.5 HN-GER16 ER16 GH30
SK50-GER16-165 3.0-10.0 30 30.5 165 TR22*1.5 HN-GER16 ER16 GH30
SK50-GER20-105 3.0-13.0 35 35.5 105 TR26*1.5 HN-GER20 ER20 GH35
SK50-GER20-135 3.0-13.0 35 35.5 135 TR26*1.5 HN-GER20 ER20 GH35
SK50-GER20-165 3.0-13.0 35 35.5 165 TR26*1.5 HN-GER20 ER20 GH35
SK50-GER25-105 3.0-16.0 40 40.5 105 TR32*1.5 HN-GER25 ER25 GH40
SK50-GER25-135 3.0-16.0 40 40.5 135 TR32*1.5 HN-GER25 ER25 GH40
SK50-GER25-165 3.0-16.0 40 40.5 165 TR32*1.5 HN-GER25 ER25 GH40
SK50-GER32-105 3.0-20.0 48 48.5 105 TR40*1.5 HN-GER32 ER32 GH48
SK50-GER32-135 3.0-20.0 48 48.5 135 TR40*1.5 HN-GER32 ER32 GH48
SK50-GER32-165 3.0-20.0 48 48.5 165 TR40*1.5 HN-GER32 ER32 GH48



GER Nuts

Stype of Nuts Model Number D L M Spanner
GER HN-GER16 30 24.7 TM22*1.5 GER16
HN-GER20 35 25.5 TM26*15 GER20
HN-GER25 40 25.9 TM32*1.5 GER25
HN-GER32 48 26.6 TM40*1.5 GER32
HN-GER11MINI 16 11.3 M14*0.75 GER11MINI
HN-GER16MINI 25 20.5 M19*1.0 GER16MINI
HN-GER20MINI 30 21.8 M24*1.0 GER20MINI
HN-GER25MINI 35 23 M30*1.0 GER25MINI



Ⅳ. Overview for HIPPSC Products

1. SK40 High Speed GER Tool Holder with G2.5 25000RPM.

2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.

3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.

4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.

6. Tool Holders/Arbors/Shanks for Mirror Finishing.

7. Morse Taper/Tapering Tool Holders/Shanks.

8. Face Milling Adapters/Tool Holders/Arbors/Shanks.

9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

10. Torque Floating Tap/Tapping Chuck and Collet.

11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.

13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.

14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

15. Edge finder/Tool Holder Tightening Fixture/Table.

16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.

17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

18. Cutterhead/ Cutter heard/bar, face milling cutter.

19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
​20. Indexable Tools.

Ⅴ​. Shipmen​
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse


1. Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
3. Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service


1. Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2. OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3. Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
