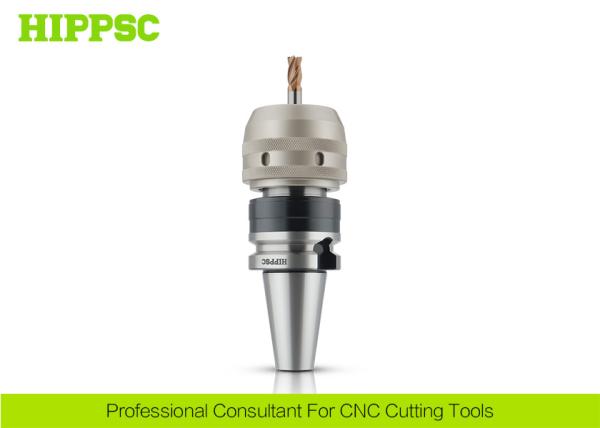

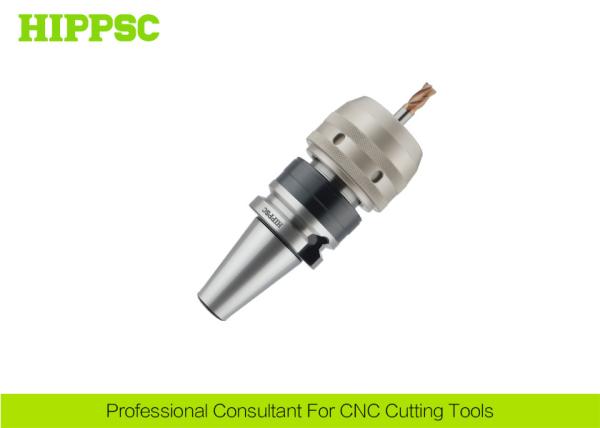

0.005mm Runout Power Tool Holder CNC Milling Cutters Special Steel Material
0.005mm Runout Power Tool Holder CNC Milling Cutters Special Steel Material
0.005mm Runout Power Tool Holder CNC Milling Cutters Special Steel Material
0.005mm Runout Power Tool Holder CNC Milling Cutters Special Steel Material
Specifications
Brand Name :
HIPPSC
Model Number :
BT30-C20-75
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
20000 pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Spindle Type :
BT-C
Runout :
0.005mm
Inventory :
In Stock
Appearance :
Coating Treatment
Product Type :
Power Tool Holder
Machining Type :
Heavy Cutting and Semi-Precision Finishing
Description

0.005mm Runout Power Tool Holder CNC Milling Cutters Special Steel Material

Ⅰ​. Features And Advantages

1. Internal oil groove improves tool holder's rigidity well.

2. Suitable for heavy duty maching, rough machining.

3. With straight shank collet, hook wrench as accessory.

4. High precision, many specifications, high quality, sufficient stock

5. Ultra-cryogenic treatment to eliminate retained austenite and deformation

6. More quill rollers than other products, and higher Gripping force, stop cutter from dropping.

Ⅱ. Technical Parametes ​

Product Name

Power Tool Holder

Spindle Type

BT

Clamping Range

4~42mm

Runout

0.005mm

Processing Type

Rough and semi-rough machining

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product Introduction

0.005mm Runout Power Tool Holder CNC Milling Cutters Special Steel Material

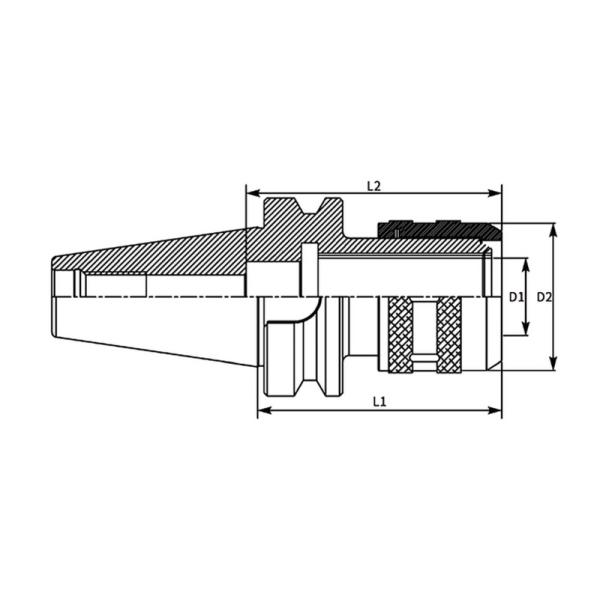

Model No. D1 D2 L1 L2
BT30-C20-90 20 55 90 70
BT30-C25-90 25 58 90 70
BT30-C32-105 32 68 105 85
BT40-C20-90 20 55 90 65
BT40-C25-90 25 58 90 65
BT40-C32-110 32 68 115 90
BT40-C32-135 32 68 135 110
BT40-C32-150 32 68 150 125
BT50-C20-90 20 55 90 55
BT50-C25-90 25 58 90 55
BT50-C25-135 25 58 135 100
BT50-C32-105 32 68 105 70
BT50-C32-135 32 68 135 100
BT50-C32-165 32 68 165 130
BT50-C42-120 42 84 120 85
BT50-C42-135 42 84 135 100
BT50-C42-165 42 84 165 130

Collets

0.005mm Runout Power Tool Holder CNC Milling Cutters Special Steel Material

Model No. Size D L
C20 C20-6,8,10,12,16 26 55.1
C25 C25-6,8,10,12,16,20 30 63
C32 C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1" 38 70
C42 C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4" 48 75

Ⅳ. Overview for HIPPSC Products

1. BT50 Power Tool Holder with C type Collet.

2. Morse Taper/Tapering Tool Holders/Shanks.

3. Pull type/Side Lock Tool Holders/Arbors/Shanks.

4. Tool Holders/Arbors/Shanks for Mirror Finishing.

5. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.

6. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

7. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

8. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bits.

Ⅴ​. Shipmen​
Conventional Transportation
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.
Custome can choose their own forwarder to arrange picking up of goods.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Preventive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1. Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
3. Using Special Equipment and Gauge To Check Technical Parameters.

0.005mm Runout Power Tool Holder CNC Milling Cutters Special Steel Material

Ⅷ. Warranty Clauses

1. 12 Months of warranty from customer receive and confirm the goods.
2. We provides replacement or repairing service for those defective goods received by buyer.
3. Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
