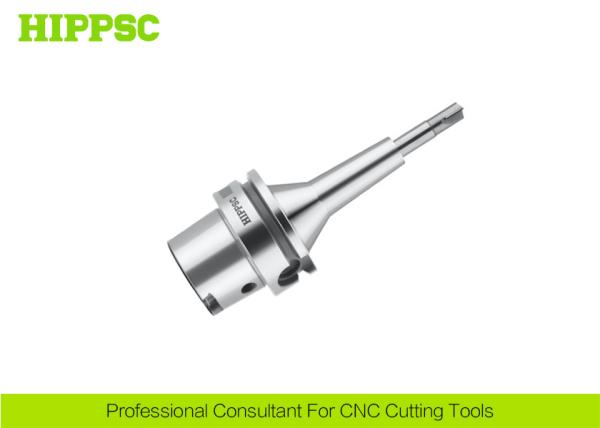

Precision Finishing Metal Cutting Tools Slim Collet Chuck HSK For Deep Hole Maching
Precision Finishing Metal Cutting Tools Slim Collet Chuck HSK For Deep Hole Maching
Precision Finishing Metal Cutting Tools Slim Collet Chuck HSK For Deep Hole Maching
Precision Finishing Metal Cutting Tools Slim Collet Chuck HSK For Deep Hole Maching
Specifications
Brand Name :
HIPPSC
Model Number :
HSK63A-MX06-90
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
2000pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Spindle Type :
HSK(A)
Color :
Silver White
Hardness :
HRC58~60
Product Type :
Slim Type Collet Chuck
Application :
Precision Finishing
Cutting Type :
EndMilling, Reaming, Drilling
Description

Precision Finishing Metal Cutting Tools Slim Collet Chuck HSK For Deep Hole Maching


Ⅰ​. Features

  1. No nut back-pull chuck design
  2. Better surface quality and runout
  3. Interference-proof, strong rigidity, high stability
  4. Back-pull design, simple locking, fast and convenient operation
  5. High precision, many specifications, high quality, sufficient stock
  6. Built-in turbine worm, smooth rotation, suitable for deep cavity processing

Ⅱ. Technical Parametes ​

Product Name

 Slim Type Collet Chuck

Spindle Type

HSK

Beat accuracy

<3μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

 20Crnimo

Hardness

HRC58~60°
Taper tolerance AT3


Ⅲ. Product Information

Precision Finishing Metal Cutting Tools Slim Collet Chuck HSK For Deep Hole Maching


Model No
Capacity		 d1 d2 d3 L A FIG
Screw
Torque
HSK63A-MX06-90 2.0-6.0 14 19 28 90 46 1 M5*30 5Nm
HSK63A-MX06-120 2.0-6.0 14 20 38 120 60 1 M5*60 5Nm
HSK63A-MX06-150 2.0-6.0 14 23 42 150 85 1 M5*90 5Nm
HSK63A-MX06-200 2.0-6.0 14 29 55 200 144 1 M5*140 5Nm
HSK63A-MX08-90 2.0-10.0 22 28 48 90 55 1 M6*25 7Nm
HSK63A-MX08-120 2.0-10.0 22 30 50 120 76 1 M6*50 7Nm
HSK63A-MX08-150 2.0-10.0 22 32 54 150 96 1 M6*80 7Nm
HSK63A-MX08-200 2.0-10.0 22 37 56 200 140 1 M6*130 7Nm
HSK63A-MX12-105 3.0-12.0 34 / / 90 74 1 M10*30 15Nm

d1 d2 d3 L A FIG Screw
Torque
HSK100A-MX06-120 2.0-6.0 14 20 38 120 60 1 M5*60 5Nm
HSK100A-MX06-150 2.0-6.0 14 23 42 150 85 1 M5*90 5Nm
HSK100A-MX06-200 2.0-6.0 14 29 55 200 144 1 M5*140 5Nm
HSK100A-MX06-250 2.0-6.0 14 49 / 250 202 1 M5*190 5Nm
HSK100A-MX06-300 2.0-6.0 14 56 / 300 255 1 M5*240 5Nm
HSK100A-MX08-120 2.0-10.0 22 30 50 120 76 1 M6*50 7Nm
HSK100A-MX08-150 2.0-10.0 22 32 54 150 96 1 M6*80 7Nm
HSK100A-MX08-200 2.0-10.0 22 37 56 200 140 1 M6*130 7Nm
HSK100A-MX08-250 2.0-10.0 22 57.2 / 250 201 1 M6*180 7Nm
HSK100A-MX08-300 2.0-10.0 22 67 / 300 256 1 M6*230 7Nm
HSK100A-MX12-120 3.0-12.0 34 / / 120 / 2 M10*30 15Nm

Ⅳ. Products Overview

  1. BT40 Threading Tool Holder.
  2. BT,BBT,SK,CAT,MAT,APU,NT,NBT,ISO,ST.
  3. Torque/Round/Circle Spanner Wrenche/Keys.
  4. Hydraulic Expansion Tool holder of BT/SK/HSK.
  5. Threaded/Screw-on/Thread Screw Tool Holders.
  6. Edge finder/Tool Holder Tightening Fixture/Table.
  7. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
Ⅴ​. Shipment​
By Sea; By Air; By Train.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Arrange Delivery Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty

  • High Accuracy Measuring Instruments and Technology.
  • Custom Made Service of Products and Packing.
  • Customer can find any products relating to CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • We are always customers and service oriented.
