Coating Treatment Machine ER Tool Holder Wih High Speed Cutting
Coating Treatment Machine ER Tool Holder Wih High Speed Cutting
Coating Treatment Machine ER Tool Holder Wih High Speed Cutting
Coating Treatment Machine ER Tool Holder Wih High Speed Cutting
Specifications
Brand Name :
HIPPSC
Model Number :
HSK63A-HGER16-70
Certification :
ISO9001
Place of Origin :
Dongguan, China
MOQ :
2 pcs
Price :
Negotiable (Price term: EXW, FOB, CFR, CIF )
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
20000 pcs Per Month
Delivery Time :
2~30 Work days
Packaging Details :
Plastic Box with Inner PE Bag In Carton
Taper :
1:10
Precision :
0.003mm
Color :
Silver White
Spindle Type :
HSK
Product Type :
High Speed ER Tool Holder
Application :
Milling Cutter, Turning Tool, Boring Too
Description

Coating Treatment Machine ER Tool Holder Wih High Speed Cutting

Ⅰ​. Features And Advantages

1. Non-eccentric nuts

2. Good for finish machining.

3. Beating accuracy ≤ 0.003mm.

4. Rapid operation and tooling changing.
​5. Endmilling, Drilling and Reaming Working.
​6. High gripping force, prevents tools from loosing.

Ⅱ. Technical Parametes ​

Product Name

High Speed ER Tool Holder

Spindle Type

HSK-A

Clamping Range

1mm~20mm

Run-Out

0.003mm

Processing Type

Endmilling, Face mill, Finishing, Drilling

Product Material

20Crnimo

Hardness

HRC58~60°


Ⅲ. Product Introduction

Coating Treatment Machine ER Tool Holder Wih High Speed Cutting

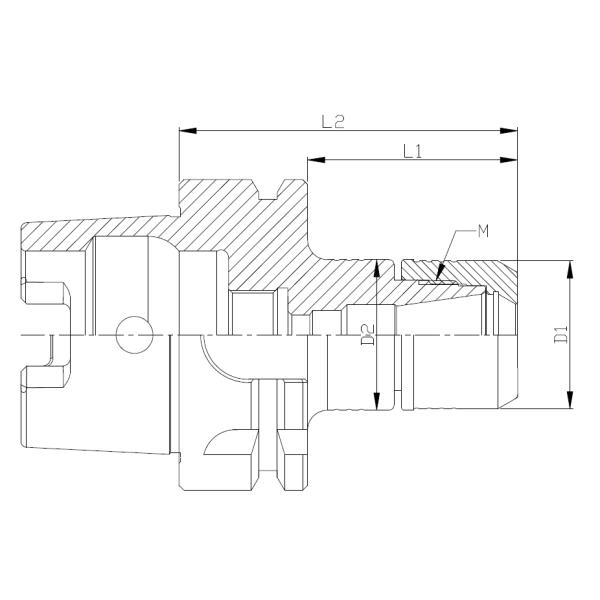

Standard Items


Cat.No
Chucking Dia		 D1 D2 L1 L2 M
Nut
Collet
Spanner
HSK63A-HGER16-70 2.0-10.0 30 30.5 44 70 TR22*1.5 HN-HGER16 ER16 GH30
HSK63A-HGER16-100 2.0-10.0 30 30.5 74 100 TR22*1.5 HN-HGER16 ER16 GH30
HSK63A-HGER16-150 2.0-10.0 30 30.5 124 150 TR22*1.5 HN-HGER16 ER16 GH30
HSK63A-HGER20-70 2.0-13.0 32 32.5 44 70 TR26*1.5 HN-HGER20 ER20 GH32
HSK63A-HGER20-100 2.0-13.0 32 32.5 74 100 TR26*1.5 HN-HGER20 ER20 GH32
HSK63A-HGER20-150 2.0-13.0 32 32.5 124 150 TR26*1.5 HN-HGER20 ER20 GH32
HSK63A-HGER25-70 3.0-16.0 40 40.5 44 70 TR32*1.5 HN-HGER25 ER25 GH40
HSK63A-HGER25-100 3.0-16.0 40 40.5 74 100 TR32*1.5 HN-HGER25 ER25 GH40
HSK63A-HGER25-150 3.0-16.0 40 40.5 124 150 TR32*1.5 HN-HGER25 ER25 GH40
HSK63A-HGER32-70 3.0-20.0 50 50.5 54 80 TR40*1.5 HN-HGER32 ER32 GH50
HSK63A-HGER32-100 3.0-20.0 50 50.5 74 100 TR40*1.5 HN-HGER32 ER32 GH50
HSK63A-HGER32-150 3.0-20.0 50 50.5 124 150 TR40*1.5 HN-HGER32 ER32 GH50
HSK100A-HGER16-100 2.0-10.0 30 30.5 71 100 TR22*1.5 HN-HGER16 ER16 GH30
HSK100A-HGER16-150 2.0-10.0 30 30.5 121 150 TR22*1.5 HN-HGER16 ER16 GH30
HSK100A-HGER20-100 2.0-13.0 32 32.5 71 100 TR26*1.5 HN-HGER20 ER20 GH32
HSK100A-HGER20-150 2.0-13.0 32 32.5 121 150 TR26*1.5 HN-HGER20 ER20 GH32
HSK100A-HGER25-100 3.0-16.0 40 40.5 71 100 TR32*1.5 HN-HGER25 ER25 GH40
HSK100A-HGER25-150 3.0-16.0 40 40.5 121 150 TR32*1.5 HN-HGER25 ER25 GH40
HSK100A-HGER32-100 3.0-20.0 50 50.5 71 100 TR40*1.5 HN-HGER32 ER32 GH50
HSK100A-HGER32-150 3.0-20.0 50 50.5 121 150 TR40*1.5 HN-HGER32 ER32 GH50

Ⅳ. Overview for HIPPSC Products

1. Torque Tap/Tapping Chuck.

2. Mirror Finishing​ Tool Holders.

3. Back Lock/Side Lock Tool Holders.

4. Morse Taper/Tapering Tool Holders.

5. Face Milling Adapters/Cutter And Inserts/Blades.

6. ​Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

7. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.

8. Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.

Ⅴ​. Shipmen​
Coating Treatment Machine ER Tool Holder Wih High Speed Cutting
By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing
Coating Treatment Machine ER Tool Holder Wih High Speed Cutting


PE Bag. Slushing oil.
Plastic Box. Adhesive Tape.
Carton Box. Packing Belt.

Ⅶ. Warehouse

1. Quick response and On-time dispatchment, Fast Lead time.
2. Products Must be Inspected Several Times Before Sending To Customer.
3. High Standard Equipments and Gauges For Examing Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1. Professional Equipments, Special Technology, Experienced Workers.
2. Supplying OEM&ODM , Custom Made, Professional suggestion and Consultation.
3. One Station Service For CNC Cutting Tools Using.

​4. Warranty 12 Months (Negotiable), Free Repairing Service.
