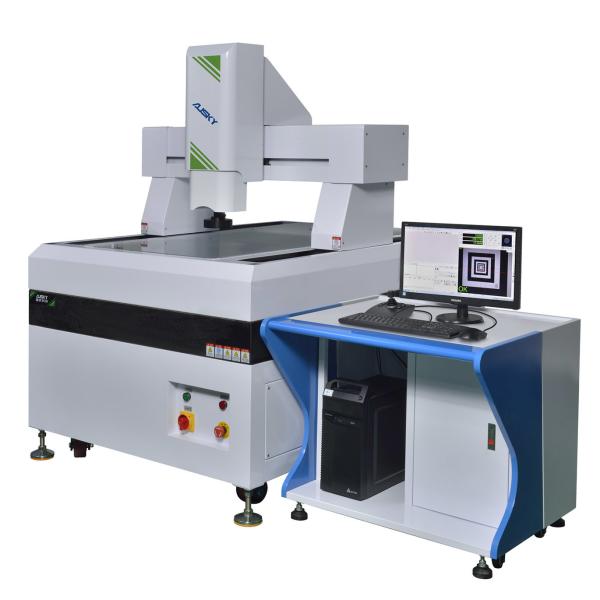

racy CNC Large Stroke Gantry Automatic Dimensions Measuring Instrument

1.High-precision granite gantry structure ,never deformation, high stability, high-end good looking .

2. High-precision grating system, with extremely high stability .

3.High precision linear guide rail and high precision ball-screw transmission .

4.Imported Panasonic servo system ,high-precision,high-efficiency ,high-stability .

5.Zoning adjustment of LED light source ,available for multi directional projection .

6.Manipulator control CNC software ,Auto focusing,Auto zoom switching ,Auto edge tracing ,Auto light Sensing , Auto measuring ,Assurance measuring high efficiency .

7.Leading edge specialized proprietary measuring software.

8.Configured with import RENISHAW high precision contacting type probe group .

9. Configured with high precision laser tester, realizable Auto programming Co-axial complex measuring image /probe/ laser .

.

Technical parameters

Product Review :

Merits:
A. Suitable for measuring applications of multi-variety, complex dimensions and demanding measuring accuracy, with even easy and quick measuring efficacy and enhanced measuring efficiency.

B. The instrument has the following merits with regard to image processing: automatic burrs skip-over, auto generating measurement reports and results statistics, and open for linking to printers, etc., suitable for wide industry applications.

Applicable scope:
this measuring instrument can be used for dimensional accuracy measurement of various Aerospace, automobile and ship, scientific research and teaching, electronics, hardware and plastic, precision metal stamping plate, screen printing plate, acrylic plate, LCP film, PCB board, LCDTFT, glass cover plate, TP, frame of ultra-large LCD, die cutting, backlight module group, as well as for auxiliary measurements such as reverse engineering graphic R & D, design, drawing editing, laboratory inspection, etc.
