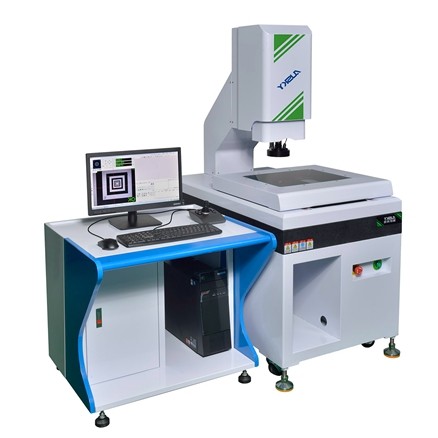

Quadratic Element Video Measuring Instrument Gantry Type Cmm Machine 750KG

Instrument Features:

● Adopt High-precision granite structure,never deformation,high stability,high-end good looking.

● Imported high precision grating system. TEO high -resolution CCD.

● Imported P-grade high precision linear guide rail and high precision ball-screw transmission.

● Imported Panasonic servo system, high-precision,high-efficiency,high-stability.

● Zoning adjustment of LED light source, available for multi directional projection .

● Manipulator control CNC software,Auto focusing, Auto zoom ratio switching,Auto edge tracing,Auto light sensing,Auto measuring,Assurance measuring high efficiency.

● Configured with leading edge specialized proprietary measuring software.

● Integrated design as a whole.

● Configured with import RENISHAW high precision contacting type probe group.Configured with high precision laser tester,Realizable auto programming Co-axial complex measuring image /probe/ laser.

Technical parameters

Configuration List:

Introduction to the software functions:

Software interface

A. Multiple measuring methods, including auto edge-tracing, auto sectional edge-tracing, mouse on-screen point fetch, crossline pointing, proximity pointing, contrast and pinnacle pointing, contour pointing, probe pointing, laser pointing, and etc.

B. Powerful edge-tracing algorithm ensures sampling point accuracy and automatic pixel correction on sampling stability,
where, one stroke will enable automatic pixel correction, needless to shift frequently.

C. Element construction
Element structure technique, offers multiple methods, such as shifting, rotating, extracting, combining, paralleling,
plumbing, mirroring, symmetry, intersecting, tangentially structured elements; Element structure will enable user to
tackle some elements hard to measure, and consequently resulting in increased working efficiency; The compositional
process is to select elements for compositional involvement, select the result element, clear and simple. Options for
composition methods available in form of illustration.

D. Powerful tagging function

Available in multiple tagging types, for example, tagging of Distance, Angle, X Distance, Y Distance, Radius, Diameter,
Arc Length, and etc., allows to change position after tagging is finished, as well as to automatically tag user, that will
remain after program is over.

E. Probe measuring

Powerful functions of software probe measuring enable to character 2D & 3D elements such as height, plane, cylinder,
cone, sphere, ring, etc., and support multiple methods for establishing 3D coordinates system, with rapid and efficient
programming.

F. Composite measuring of probe and image

Composite measuring by complementing probe with image optical system achieves multi-purpose measuring of image
and probe.

G. Workpiece array and array macro function

Such function is applied in automatic image measuring instrument. When a bunch of identical workpieces are placed and
literally equally spaced on one measure fixture, measure one of the workpieces at first, before measure all the
workpieces on the measure fixture. This will not only save the time for edge-tracing measuring, but also simplify the
user program.

H. Laser measuring
Laser measuring sees an increasing popularity in imaging device measuring. Our software is also improved and
optimized responding to the measuring call. We herein introduce as below:

I. Connection and interfacing with laser
Currently, our measuring device can connect with laser of following brands: Keyence, Panasonic, Omron, Miyi, Stil,
ERT, Sunny, and etc. Select the laser and COM you wish to connect with in the Laser List in the Parameter Setting.
(After connection, the measuring method using laser measuring is indicated as below(L: Reading of the line is the
current laser reading, and corresponding interface of laser measuring will also pop up in the Graphic Zone)

J. Synchronization of laser and image
Before laser measuring, first to synchronize the laser and image, before following measuring can be performed. Using a
sample, find a cusp on the picture, before shift the crossline center to such cusp to call out the coordinate value, before
shift the laser spot to such cusp to call out the coordinate value of such cusp, click to confirm to wrap up the
synchronization, to achieve the image programming laser measuring.
(With this, in subsequent measuring process, whatever laser spot mining or imaging spot mining, they can be shifted to
the element center already mined)

K. Workpiece array macro
Responding to circumstances of placing simultaneously multiple identical or different fixtures on workbench, array on
each fixture can be identical or different. User can simply replace the fixture after measuring workpieces on one fixture,
which help save time and increase efficiency.
(Fixture 1) (Workpiece 1)

L. Import CAD graphics for measuring

The software supports measuring on workpieces with CAD graphics as template, which enable coordinate measuring or
comparison measuring. Such function is applicable to workpiece of any contour/shape within gauging range of the
measuring instrument.
