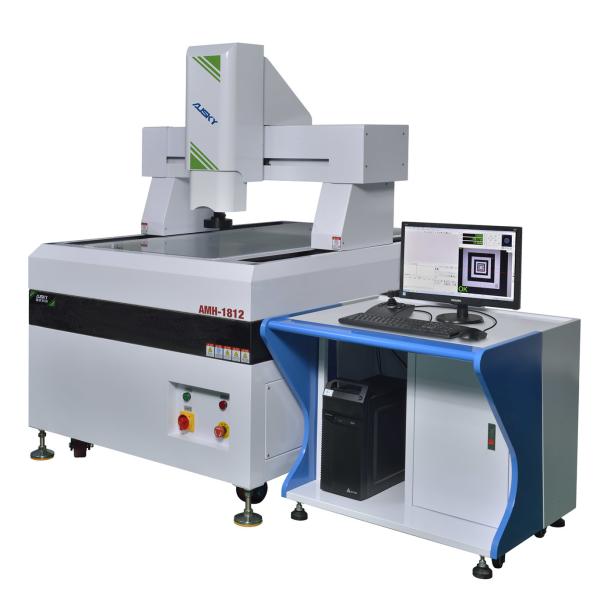

Multifunctional Coordinate Measuring Instrument For Plastic / Metal Parts

Lab 3d Coordinate Measuring Machine Optical Video Measurement Instrument

Technical parameters

Configuration List:

Mechanism and Application Characteristics of Coordinate measuring machine:

1. Construction of the instrument:

Designed with workbench of a marble panel base and gantry mechanism, the instrument is characterized by steady accuracy, good adaptability to working environment, simple, strong, non-deformable and good-looking body structure, and ergonomically designed operating mechanism, and meanwhile is equipped with powerful measuring software and is easy to operate.

2. Movement of Mechanism:

this measuring instrument is provided with tri-axial automatic control and equipped with import precision Nidec patch grating system, Japan Panasonic servo high-efficiency motor system, Taiwan TBI screw rod, Taiwan HIWIN high-precision guide rail as well as professional measuring software for measurement.

3. Merits with auto-measuring instrument:

This instrument can avoid human error of the “Object Work Piece” as caused by manual measuring, and can as well avoid secondary damage caused to “Object Work Piece” by manual measuring, with ensured mass stability and criteria consistency of the object work piece. This instrument can enhance multi-fold the detecting efficiency in the production process, identify the defects and control over non-yields beforehand in production process, and can meanwhile help lower part of the costs spent on manual detection, and increase the timeliness of product delivery.

Introduction to the software functions:

Software interface

A. Multiple measuring methods, including auto edge-tracing, auto sectional edge-tracing, mouse on-screen point fetch, crossline pointing, proximity pointing, contrast and pinnacle pointing, contour pointing, probe pointing, laser pointing, and etc.

B. Powerful edge-tracing algorithm ensures sampling point accuracy and automatic pixel correction on sampling stability,
where, one stroke will enable automatic pixel correction, needless to shift frequently.

C. Element construction
Element structure technique, offers multiple methods, such as shifting, rotating, extracting, combining, paralleling,
plumbing, mirroring, symmetry, intersecting, tangentially structured elements; Element structure will enable user to
tackle some elements hard to measure, and consequently resulting in increased working efficiency; The compositional
process is to select elements for compositional involvement, select the result element, clear and simple. Options for
composition methods available in form of illustration.

D. Ample functions of the image window
Can display magnification ratio and scale, and can do simple distance and angle measuring

E. Ample functions of coordinate system
Can establish multiple coordinate systems on the basis of the actual circumstance, can switch flexibly data under all
coordinate systems, can achieve conveniently switchover between straight angle coordinate system and polar coordinate
system, can achieve the save and call-out of different coordinate system, and can display different modes of coordinate system.

F. Convenient program editing and modifying

Enable to modify conveniently light source data, kinetic data, focusing data, program location, measuring height, and
etc., as well as can replace existing elements with new elements.

G. Probe measuring

Powerful functions of software probe measuring enable to character 2D & 3D elements such as height, plane, cylinder,
cone, sphere, ring, etc., and support multiple methods for establishing 3D coordinates system, with rapid and efficient
programming.

H. Composite measuring of probe and image

Composite measuring by complementing probe with image optical system achieves multi-purpose measuring of image
and probe.

L. Workpiece array and array macro function

Such function is applied in automatic image measuring instrument. When a bunch of identical workpieces are placed and
literally equally spaced on one measure fixture, measure one of the workpieces at first, before measure all the
workpieces on the measure fixture. This will not only save the time for edge-tracing measuring, but also simplify the
user program.
