Time Saving 2D Measuring Machine Manual Optical CMM 1/3 Inch CCD Camera
Time Saving 2D Measuring Machine Manual Optical CMM 1/3 Inch CCD Camera
Specifications
Brand Name :
AUSKY
Model Number :
AQC540
Certification :
CE, ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per month
Delivery Time :
3 Work days
Packaging Details :
Export wooden case
Outline dimension :
1090X720X1700mm
Actual run size :
500X400X200mm
Display resolution :
1/0.5um Optional
Total video magnification :
30-190X
Raster resolution :
0.001mm
The camera :
High definition Color 1/3''CCD camera
Working Distance :
96mm
Weight :
700KG
Description

Time Saving 2D Measuring Machine Manual Optical CMM 1/3 Inch CCD Camera

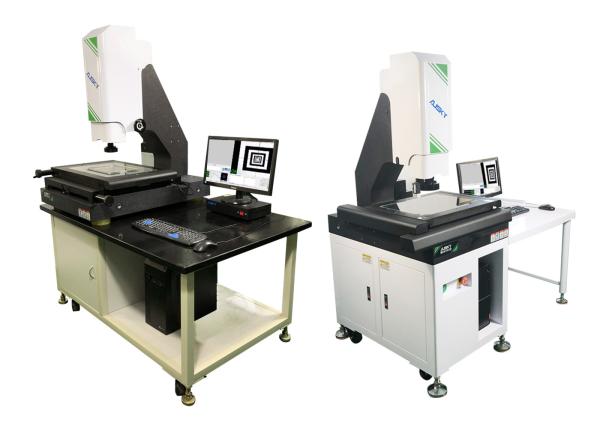

AQC Series Image Measuring Machine is a manual measuring instrument developed by Aucheng in response to market requirements. It combines the traditional optical and computer image processing technology. It can precisely measure the points, lines, circles and other basic elements of the workpiece plane. It is easy to operate, time-saving, high accuracy, many measuring methods and convenient to measure. It is suitable for all fields of dimension measurement.

Technical parameters

Paramter and Model

AQC540

Workbench

Platfom size(mm)

720X620

Glass table size(mm)

550X450

Bearing(kg)

20

Travel

X axis(mm)

500

Y axis(mm)

400

Z axis(mm)

200

Image and measurement system

Display resolution(mm)

1/0.5(Optional)

Instrument precision(um)

(3+L/200)um

Imaging system(CCD)

HD color 650TV

Zoom objective(X)

Zoom objective 0.7~4.5X

Total video magnification(x)

30~190X

Working distance(mm)

96mm

Light source

LED programmable partiton light source(Coaxial light source optional)

Outline dimension(mm)

1090X720X1700

Weight(kg)

700kg

Power supply

220V AC 50Hz

Configuration List:

Sequence number

Name

Unit

Quantity

1

Main body

PCS

1

2

Instrument table

PCS

1

3

AUSKY software

PCS

1

4

video card

PCS

1

5

Dongle

PCS

1

6

Computer

PCS

1

7

Liquid crystal display

PCS

1

8

Aocheng optical calibration block

PCS

1

9

Keyboard and mouse

PCS

1

10

Specification warranty card certificate

PCS

1

Overall Merits:

A. Suitable for measuring applications of multi-variety, complex dimensions and demanding measuring accuracy, with even easy and quick measuring efficacy and enhanced measuring efficiency.

B. The instrument has the following merits with regard to image processing: automatic burrs skip-over, auto generating measurement reports and results statistics, and open for linking to printers, etc., suitable for wide industry applications.

Saving cost:

This instrument can achieve multiple functions on the same set of equipment, resulting in saved user costs for repeated purchasing of measurement devices as well as saved labor costs and equipment occupation space. It can meet the needs of user enterprises for greater development in the future and the demand for rapid expansion of product testing to lay sound foundation for users’ quality assurance.
