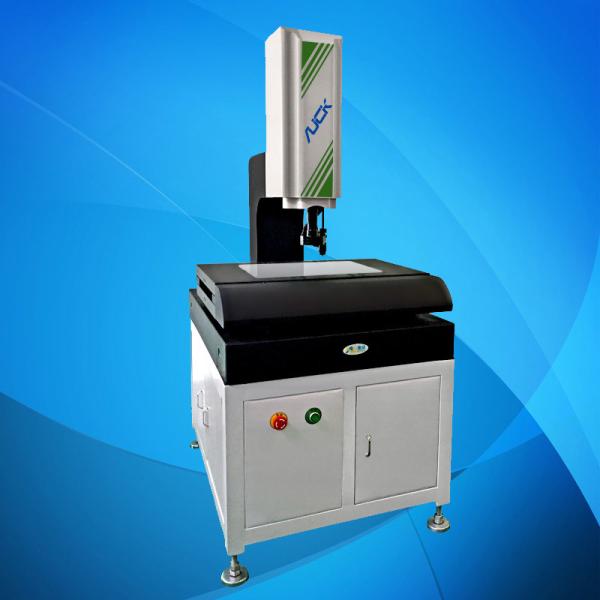

Three Dimensional CMM Measuring Machine Cantilever Type CMM System Energy Saving

Mechanism and Application Characteristics of Coordinate measuring machine:

1. Construction of the instrument:

Designed with workbench of a marble panel base and cantilever-type mechanism, the instrument is characterized by steady accuracy, good adaptability to working environment, simple, strong, non-deformable and good-looking body structure, and ergonomically designed operating mechanism, and meanwhile is equipped with powerful measuring software and is easy to operate.

2. Movement of Mechanism:

With tri-axial manual control mode, this measuring instrument is equipped with high-accuracy polished rod, FUSHUO high-accuracy guide rail, and meanwhile coupled with professional Aotian measuring software for measuring.

3. Applicable scope:

this measuring instrument can be used for dimensional accuracy measurement of various molds, aircraft, automobile, mobile phone, computer, metals and hardware, plastics, electronics, die-cutting, screen printing and stencil, LCP film, PCB board, FPC, LCDTFT, glass cover-plate, TP, and frame of ultra-large LCD, as well as for auxiliary measurements such as 2D and 3D measuring as needed in reverse engineering, graphic R&D, design, plotting and editing, and laboratory, etc.

3. Main functional configurations of instrument:

this instrument is used in with dedicated Aocheng image measuring software, high-definition color 650TV CCD, high resolution of 0.7–4.5 folds (special high-definition zoom and fixed-focus screen optical lens), dedicated computer, LCD, keyboard, mouse (optional) and digital measurement.

4. Overall Merits:

A. Suitable for measuring applications of multi-variety, complex dimensions and demanding measuring accuracy, with even easy and quick measuring efficacy and enhanced measuring efficiency.

B. The instrument has the following merits with regard to image processing: automatic burrs skip-over, auto generating measurement reports and results statistics, and open for linking to printers, etc., suitable for wide industry applications.

Technical parameters

Introduction to the software functions:

Software interface

A. Multiple measuring methods, including auto edge-tracing, auto sectional edge-tracing, mouse on-screen point fetch, crossline pointing, proximity pointing, contrast and pinnacle pointing, contour pointing, probe pointing, laser pointing, and etc.

B. Powerful edge-tracing algorithm ensures sampling point accuracy and automatic pixel correction on sampling stability,
where, one stroke will enable automatic pixel correction, needless to shift frequently.

C. Element construction
Element structure technique, offers multiple methods, such as shifting, rotating, extracting, combining, paralleling,
plumbing, mirroring, symmetry, intersecting, tangentially structured elements; Element structure will enable user to
tackle some elements hard to measure, and consequently resulting in increased working efficiency; The compositional
process is to select elements for compositional involvement, select the result element, clear and simple. Options for
composition methods available in form of illustration

D. Ample functions of the image window
Can display magnification ratio and scale, and can do simple distance and angle measuring

E. Ample functions of coordinate system
Can establish multiple coordinate systems on the basis of the actual circumstance, can switch flexibly data under all
coordinate systems, can achieve conveniently switchover between straight angle coordinate system and polar coordinate
system, can achieve the save and call-out of different coordinate system, and can display different modes of coordinate system.

F. Convenient program editing and modifying

Enable to modify conveniently light source data, kinetic data, focusing data, program location, measuring height, and
etc., as well as can replace existing elements with new elements.

G Ample tolerance functions
Multiple calculations of size and geometric tolerance available; Allowable for calculating 2D and 3D tolerance, e.g,
geometric tolerance as roundness, cylindricity, linearity, planeness, etc., as well as tolerances as location, parallelism,
verticality, tilt, concentricity, pulsation, etc.
