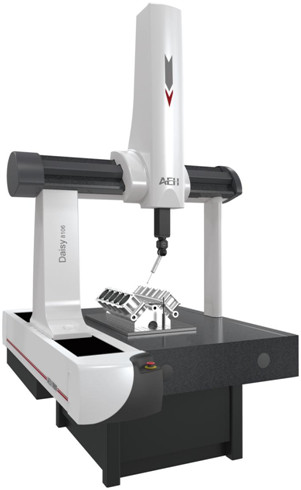

Three Axis Coordinate Measuring Machine Services 3D Test Measurement Instruments

Technical Parameters

Configuration List

1, Technical Description

Basic Machine

a. Adoption of advanced F.E.M. (finite element method) makes it have a strong rigidity, small geometry error, high precision, high performance and high stability.

b. The mechanical overall structure adopts strong rigidity, light weight and close frame movable bridge structure, which is simple, compact and has strong loaded capacity and good moving performance

c. Granite fixed workable ensures strong heavy load, expanse and simplicity for assembly and unassembly.

d. Y axis guideway adopts dove tail type, which has high precision and good stability.

e. Three axis’s adoption of quality granite guarantees small coefficient in thermal expansion and uniform temperature specialty so that it serves to excellent stability in temperature, good anti-transmogrification, strong rigidity and small geometrical error in motion.

f. Three axis’s adoption of quiescent air pressure air-bearing guide way, comprised of air bearings which are self-cleaning, pre-loading and high precision, guarantees the large span of bearings, strong anti-sways, small resistance, no abrasion and stable motion

g. Crossbeam’s adoption of precise designing technology of inclined girder (patent) guarantees the machine’s lightweight, low center of gravity, strong rigidity and small error in motion so that the stability of the machine is strengthened.

h. Adoption of world famous reflecting metal tape measuring scale system, which has a close thermal expansion coefficient with most work piece and assure a good repeatability.

i. Drive system adopts world famous high performance DC servo drive system and dentiform tape gearing, which guarantee the drive’s fastness, precision and perfect movement.

j. Z-axis adopts cylinder equilibrator system, which improves orientation precision and stability greatly for Z axis.

k.Control system adopts well-known exclusive Europe Internationally advanced up-down dual computers control system, which improves the system’s reliability and anti-jamming capacity greatly

l. Software adopts self-owned intellectual property and strong function AC-DMS software. With its perfect measuring and online function, it will meet customer’s challenging demand with a comprehensive measurement solution.
