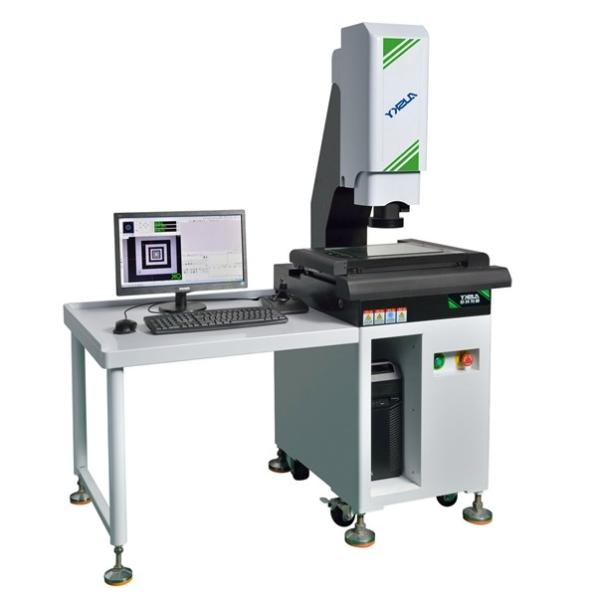

Universal Computer Measuring Machine Non Contact With 1/3'' CCD Camera

Construction of the instrument:

Designed with workbench of a marble panel base and cantilever-type mechanism, the instrument is characterized by steady accuracy, good adaptability to working environment, simple, strong, non-deformable and good-looking body structure, and ergonomically designed operating mechanism, and meanwhile is equipped with powerful measuring software and is easy to operate.

Merits with auto-measuring instrument:

It has the characteristics of high intelligence and automation, and can make the whole measurement process simple and easy. Through simple programming, the automatic image measuring instrument can easily learn all the operation process of the operator, and realize artificial intelligence by combining its automatic focusing and region search, target locking, edge extraction, and fuzzy operation of point selection. It can automatically correct the offset caused by the difference of workpiece and position to achieve precise point selection with high accuracy and repeatability. Thus the operator can be freed from the monotonous operation of fatigue visual alignment, frequent selection of points, repeated positioning, function switching and the increasingly onerous tasks to be tested, and the batch testing efficiency can be improved hundreds of times to meet the needs of industrial spot checking and mass testing.

Technical parameters

Configuration List:

Applicable scope:
this measuring instrument can be used for dimensional accuracy measurement of various Aerospace, automobile and ship, scientific research and teaching, electronics, hardware and plastic, precision metal stamping plate, screen printing plate, acrylic plate, LCP film, PCB board, LCDTFT, glass cover plate, TP, frame of ultra-large LCD, die cutting, backlight module group, as well as for auxiliary measurements such as reverse engineering graphic R & D, design, drawing editing, laboratory inspection, etc.
