1,Specifications:

stone cladding fixing system /stainless steel cladding fixing system /glass fixing system /wall cladding fixing systems /cladding fixing system /facade fixing system / marble fixing system

2, Stone Fixing Brackets Uses and Applications :

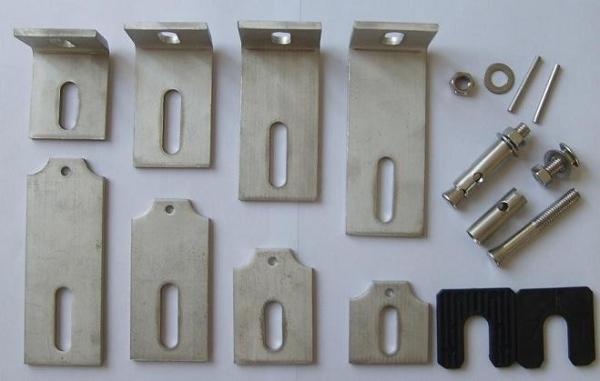

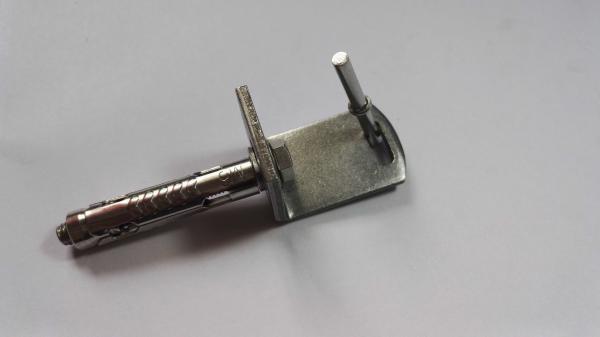

This Cladding Fixing System contains Adjustable Arm,Flange Pin,Hex Nut,Serrated Washer,Wedge Anchor and Z Bracket.The mate Marble Bracket/Marble Angle/Marble Clamp/Beam Clamp/Channel Bracket/Z Bracket/L Bracket/Strut Fitting/Marble Fixing/Stone Fixing Fittings/Cladding Fixing System/Anchoring System/Anchorage System/Restraint Fixing System/Restraining Angle/Restraint Anchor/Granite Anchor/Interior Anchor/Slotted Strut Channel

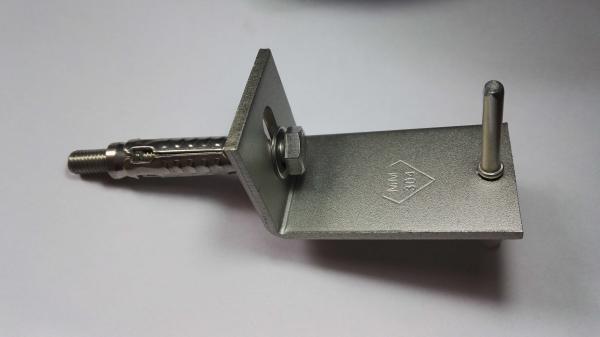

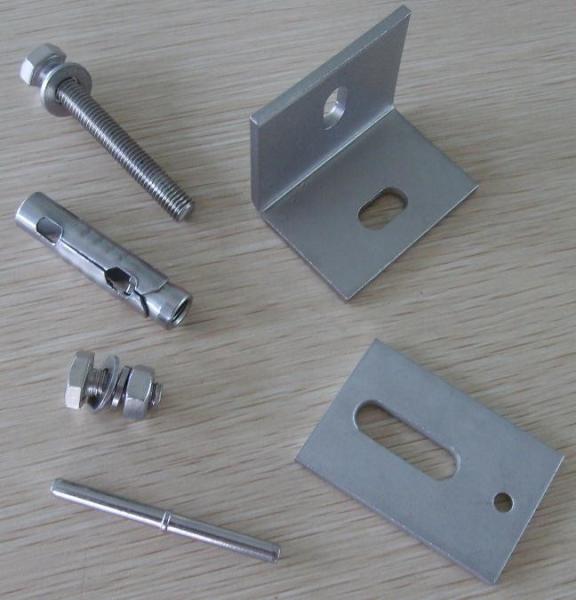

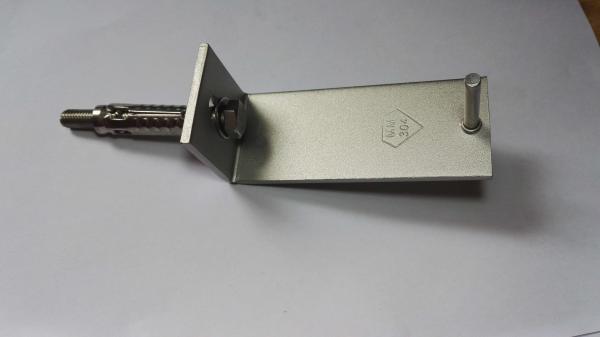

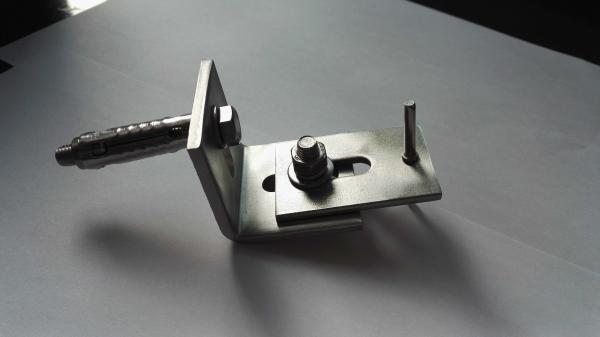

This Cladding Fixing System contains Adjustable Arm,Flange Pin,Hex Nut,Serrated Washer,Wedge Anchor and Z Bracket.The material is SUS304 SUS316

We are professional in Stone Fixing Systems for many years. We have produced many types of Fixing Systems for our clients all over the world.
If you need our products or still confuse about what kind of fixing system to choose for the stone and marble,please email me......

Direct fixing in to concrete walls with expansion bolt. Indirect fixing on to sub channel system with hex bolts

Suitable for concrete walls. Anchors are fixed directly on to concrete walls with expansion bolts.

1.Recommended projection size between 45 mm to 135 mm and loads up to 800N.

2.In horizontal joint installation slabs are pinned on the bottom and upper sides. Anchors act as load bearing carrying half the weight of the slabs above. Anchors also act as restraint holding the slabs below and restraining against wind suction and pressure.

3. In vertical joints installation slabs are pinned at the left and right sides. Anchors on the bottom are load-bearing anchors carrying the whole weight of the slab. Half the weight of the slab on the left and half the weight of the slab on the right. Anchors on the top are restraint anchors holding the slabs and restraining against wind suction and pressure.

4. Three - dimensional adjustability allows quick and easy installation......
