China hot sale diesel engine driven DK600 Crawler type water well drilling rig
China hot sale diesel engine driven DK600 Crawler type water well drilling rig
China hot sale diesel engine driven DK600 Crawler type water well drilling rig
China hot sale diesel engine driven DK600 Crawler type water well drilling rig
China hot sale diesel engine driven DK600 Crawler type water well drilling rig
China hot sale diesel engine driven DK600 Crawler type water well drilling rig
China hot sale diesel engine driven DK600 Crawler type water well drilling rig
China hot sale diesel engine driven DK600 Crawler type water well drilling rig
Specifications
Brand Name :
Duke
Model Number :
DK600
MOQ :
1 SET
Price :
8000-30000USD/SET
Payment Terms :
L/C, T/T
Supply Ability :
50 SET PRR QUARTER
Delivery Time :
10 WORKING DAYS
Packaging Details :
PLASTIC FILM PLAIN PACKAGING
Drilling hold diameter :
140-350m
Drilling depth :
600m
Once-time advance length :
6.6m
Main motor power :
115kw
Using air pressure :
1.7-3.5MPA
After-sales service provided :
Engineers available to service machinery overseas
Usage :
Water Well
Power type :
Diesel
Product name :
Water Well Drilling Rig
Description

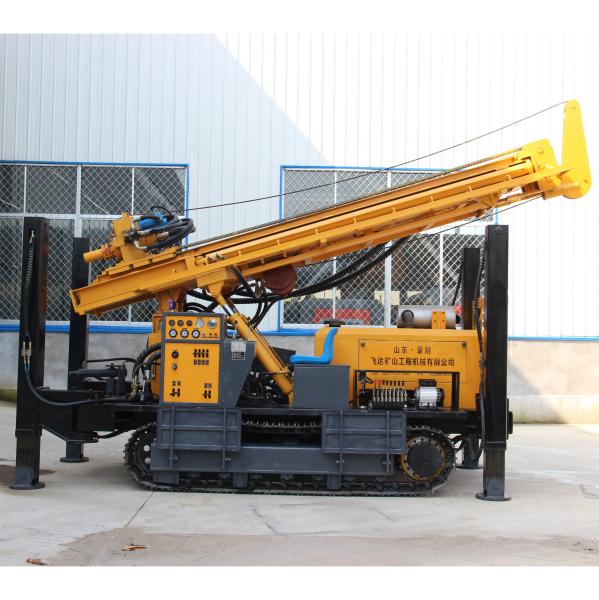

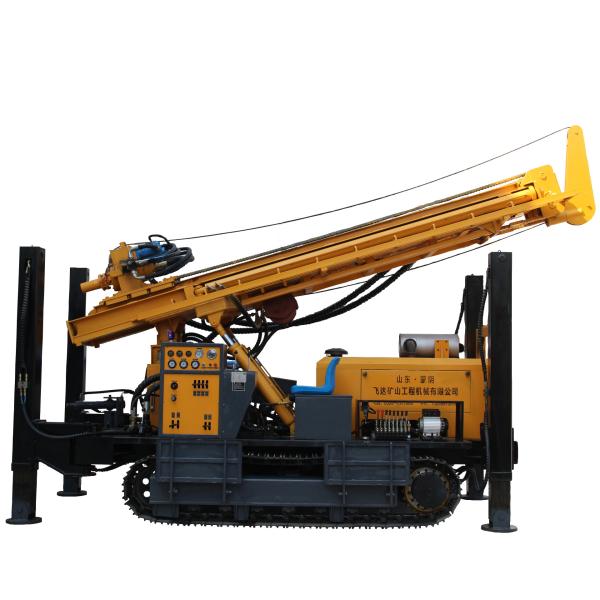

China hot sale diesel engine driven DK600 Crawler type water well drilling rig

A: Machine introduction of water well drilling rig

DK Series Water Well Drilling Rig is a light, efficient and versatile drilling equipment powered by diesel engine which is from China famous brand. It is mainly suitable for drilling wells, agricultural irrigation wells and other uses, especially for water extraction in mountainous and rock formations engineering.

In addition,this series of drilling rigs using new hydraulic technology which is equipped with large-bore hydraulic cylinder advancement and high-torque hydraulic motor rotation

B: Main technical data of water well drilling rig

Model DK400 DK200 DK300 DK600
Machine weight(T) 10 5.8 7 12
Drilling hold diameter(M) 140-350 140-325 140-325 140-350
Drilling depth (M) 400 200 300 600
Once-time advance length(M) 6.6 3.3 3.4 6.6
Walking speed (km/h) 2.5 2.5 2.5 2.5
Max.climbing capacity 30 30 30 30
Main motor power (kw) 92 70 85 132
Using air pressure (mpa) 1.7-3.5 1.7-3.0 1.7-3.0 1.7-3.5
Air consumption (m3/min) 17-35 17-35 17-35 17-42
Drill pipe diameter (mm) 89/102/108 76/89/102 76/89/102 89/76
Drill pipe length (m) 1.5/2/3 1.5/2/3 1.5/2/3 1.5/2/3
Rig lifting force(N) 25 15 18 12
Swing speed (rpm) 45-115 45-70 40-70 45-115
Swing torque (N.M) 6500-9000 3500-4800 5700-7500 8500-11000

C: More detail of water well drilling rig

D: Packing and shipping about water well drilling rig
Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 7 working days after deposit.

E: After sales service:
1.We can provide all-round technical guidance ff there is any problem about our machine;
2.7*24 hours multi-language professional after-sales service group
3.Construction solutions will be provided for different geological conditions.
4.All the accessories of that kind of machine can be provided for a long time.

F: Recommend Air Compressors and accessory for 600m depth portable water well drilling rig

It is special screw air compressor for drilling well from Kaishan group KSZJ-29/23

G: Company workshop environment:
