Tirfor 5 Ton Aluminum Alloy Manual Wire Rope Hoist Winch Tirfor 800kg
Tirfor 5 Ton Aluminum Alloy Manual Wire Rope Hoist Winch Tirfor 800kg
Tirfor 5 Ton Aluminum Alloy Manual Wire Rope Hoist Winch Tirfor 800kg
Tirfor 5 Ton Aluminum Alloy Manual Wire Rope Hoist Winch Tirfor 800kg
Tirfor 5 Ton Aluminum Alloy Manual Wire Rope Hoist Winch Tirfor 800kg
Tirfor 5 Ton Aluminum Alloy Manual Wire Rope Hoist Winch Tirfor 800kg
Specifications
Brand Name :
Net Electric Power
Certification :
ISO45001 ISO14001
Place of Origin :
China
MOQ :
1000
Payment Terms :
L/C,T/T
Supply Ability :
10000pices/per
Delivery Time :
5-8 work days
Packaging Details :
carton,plywooden case,pallet
Price :
100-1200usd/pc
Description

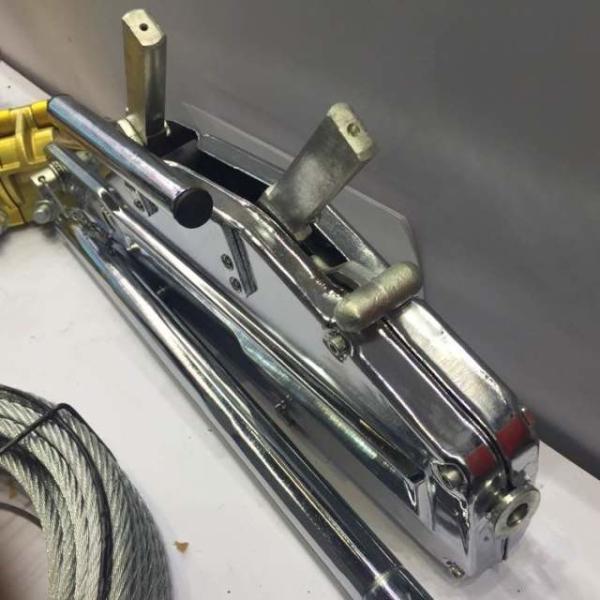

Aluminum alloy manual wire rope hoist winch

Columbium wire rope hoist to adapt to the local space limited narrow zone operation.The operation of the field, high altitude, tunnel, deep well operation and no electric fieldwill show special advantages. Wire rope hoist hoist is a lever body which is matched withnegative cutting by puling the handle by manpower and lever principle, and a clamp bodyacting on the load of the core in rotation to drive the load to run.Put forward (backward) handle ban to the machine after the hand push handle looseningdirection machine, the wedge can be clamped into market in above step, this time beforeand after the clamp in the upper and lower clamping is open, you can wear (pumping) iscompleted, pushing forward and downward loose handle with.The clamp wire rope (or reset) can be put into operation.

Model LJ-800 LJ-1600 LJ-3200 LJ-5400
Rated capacity(kg) 800 1600 3200 5400
Rated forward handpower(N) 341 400 438 550

Rated forward travel(mm)

(Swing it front and backward)

 ≥52 ≥55 ≥28 ≥25
Rope diameter(mm) 8.3 11 16 20
Wire rope safety factoer load capacity 5 5 5 5
Safety factor&static load capacity 4 4 4 4
Max travelling load(kg) 1200 2400 4000 8100
Net weight 6.4 12 23 58
Max Overall Size A 426 545 660 930
B 238 284 325 390
C 64 97 116 150
L1(cm) 692 692 692
L2(cm) 1200 1200 1200
L3(cm) 800
