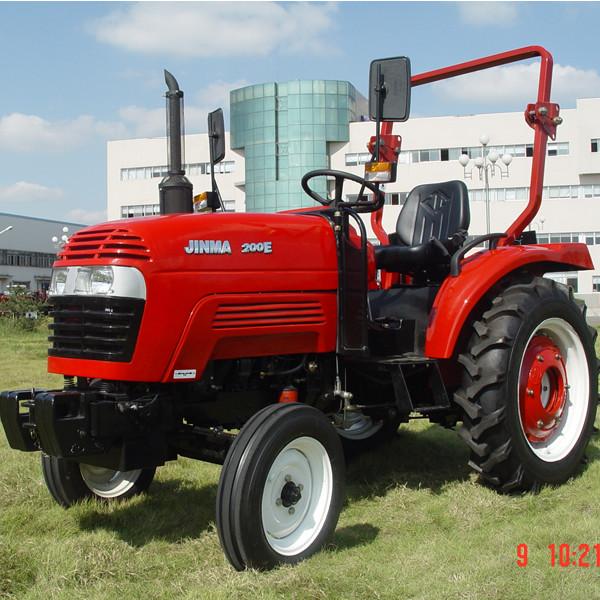

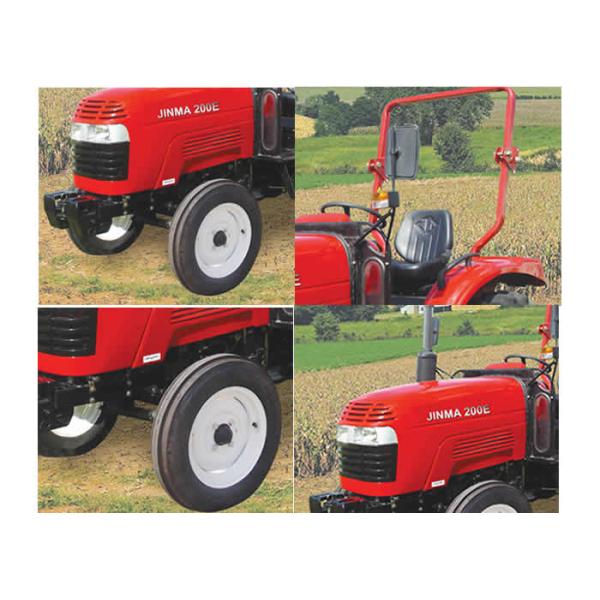

China Compact Four Wheel Lawn Tractor JM200E 20hp 2wd Agricultural Farm Tractor With CE
China Compact Four Wheel Lawn Tractor JM200E 20hp 2wd Agricultural Farm Tractor With CE
China Compact Four Wheel Lawn Tractor JM200E 20hp 2wd Agricultural Farm Tractor With CE
China Compact Four Wheel Lawn Tractor JM200E 20hp 2wd Agricultural Farm Tractor With CE
Specifications
Place of Origin :
China
Brand Name :
JINMA
Certification :
EEC/COC,EPA
Model Number :
JM200E
MOQ :
1 set
Price :
negotiable
Packaging Details :
Crate
Delivery Time :
within 30 days after receipt of payment
Payment Terms :
t/t in advance or l/c at sight
Supply Ability :
2000 sets/months
Shipment :
by sea
Warranty :
1 year
Type :
Wheel Tractor
By wheel :
2WD
Usage :
Farm Tractor
Certificate :
EEC
Power :
20hp diesel
Brand :
Jinma
Product Name :
Lawn Tractor, Wheel tractor, compact tractor
Application :
Agricultural Farm, Lawn
Description

China Compact Four Wheel Lawn Tractor JM200E 20hp 2wd Agricultural Farm Tractor With CE


Features:
EEC/COC certified.
20hp 2wd four wheel tractor

1 unit order is acceptable.

Technical Parameters:

Model JM200E
Drive 2wd
Overall Dimensions 3185x1440x2530mm
Wheel track Front- 1070-1270 Rear-1040-1200mm
Wheelbase 1595mm
Ground Clearance 330 mm
Rated Traction power 4000 N
Machine Weight 1295 kg
Turning radius 2.4 meter
Theoretical Speed(Without creeper)( km/h) Forward-1.99,3.94,6.57,9.21,18.2,30.36
Reverse-1.58,7.3
Theoretical Speed (With creeper)( km/h) Forward-0.37,0.73,1.22,1.72,3.39,5.66
Reverse-0.29,1.36
Engine KM385TE1
3 cylinders vertical, water cooled, 4 stroke
Bore x stroke: 85 x90mm
Rated power: 14.7kw/20hp -2350rpm
Total displacement: 1.532L
Clutch Dual stage
Gearbox (3+1)x2
Final transmission External gearing, Spur Gear
Tire front-4.0-16, Rear- 8.3-24
Steering gear fully hydraulic steering
Brake shoe type
Hydraulic System Lifting Capacity at 610mm Behind Lift Point (N)- 3300
3-Point Suspension catogery 1
PTO Speed 540/1000
Options Canopy, Rollbar


China Compact Four Wheel Lawn Tractor JM200E 20hp 2wd Agricultural Farm Tractor With CE
