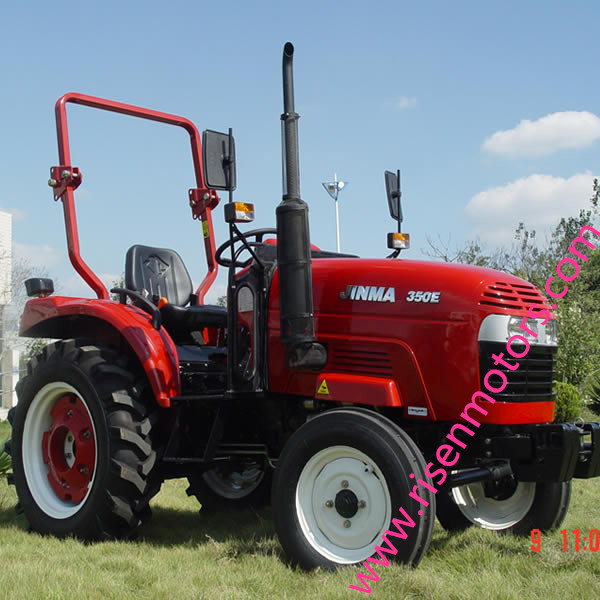

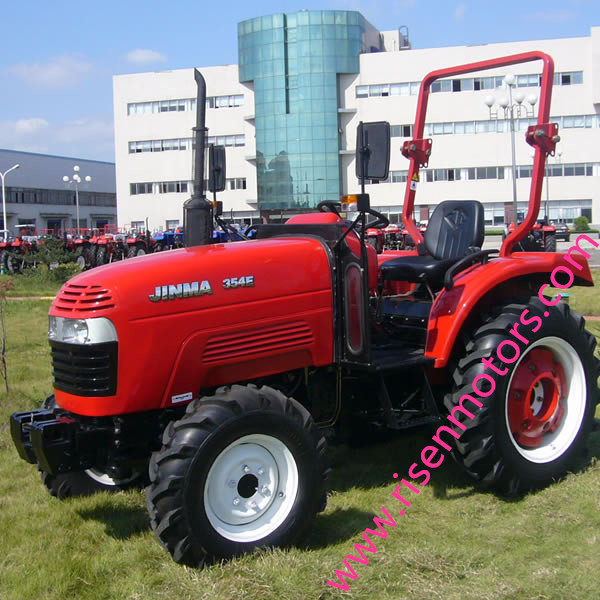

35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec
35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec
35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec
35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec
Specifications
Place of Origin :
China
Brand Name :
JM350E
Certification :
EEC/COC, EPA
Model Number :
JM350E, JM354E
Type :
Wheel Tractor
By wheel :
4WD
Usage :
Garden Tractor
Certificate :
EEC
MOQ :
1 set
Price :
negotiable
Packaging Details :
iron crate
Delivery Time :
within 30-45 days after receipt of payment
Payment Terms :
t/t in advance or l/c at sight
Supply Ability :
5000 sets/month
Shipment :
by sea
Description

35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec35hp JINMA wheel tractor JM354E agricultural 2/4wd farm tractor diesel eec

JINMA 350E Farm Mini Tractor Parameters

JINMA 350E Four Wheel Tractors Technical Parameters
Tractor
Parameters		 Model JM350E
Drive Type 2WD
Overall Dimensions L*W*H(mm): 3362*1485*2420
Wheel Track (mm) Front 1050-1450
Rear 1200-1500
Wheel Base(mm) 1776.5
Ground Clearance (mm) 350
Rated Traction Force(N) 5900
Construction Mass(kg) 1735
Min.Turning Radius(m) 3.55
The oretical Speed
(Without creeper gear(km/h)		 Forward 2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867
Reverse 2.861,13.2
Engine
Specifications		 Model 4L22T
Type 4-cylinder, Vertical water-cooled,4 stroke cycle
Rated Power(kw/hp) 25.7/35
Rated Speed (rpm) 2350
Bore*Stroke(mm) 85*95
Total Displacement(L) 2.156
Drive
System		 Clutch Dual stage
Gear Box (4+1)*2
Main Drive One pair of spiral bevel gearing
Differential Bevel gear
Differential Lock Jaw Lock
Final Transmission Spur Gear,External,Gearing
Travelling
Mechanism		 Tyre Front 6.00-16
Rear 11.2-24
Steering Gear Power Steering
Brake Disc type
Working
Device		 Hydraulic System Lifting Capacity at
610mm Behind Lift Pioint (kN)		 5800
3-Point Suspension Category:I
P.T.O Shaft Rotating Speed (rpm) 540/1000
Spline Size 6-φ35Rectangular Spline
OPTIONS ROLL BAR,CANOPY,HYDRAULIC STEERING,DUAL STAGE CLUTCH

Packaging & Shipping

Normal Package: Normal export crate

Additional packing: If the spare parts are heavy, we suggest pack by wooden case. And the customers should pay for the wooden case.
