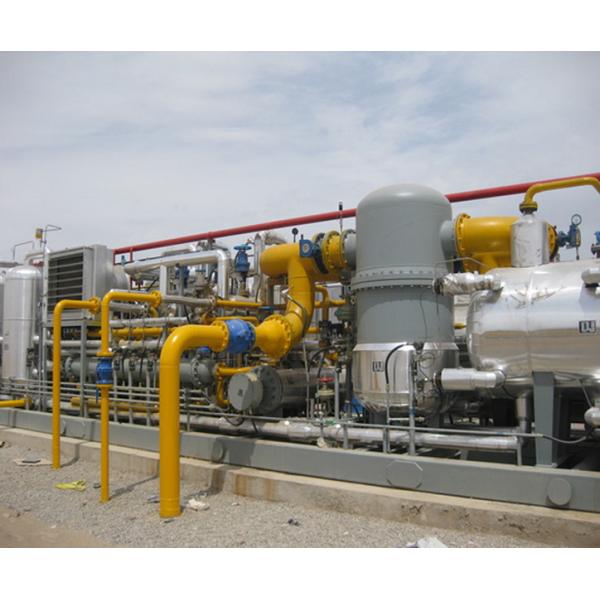

AC 380V 6X104 Nm3/D Light Hydrocarbon Recovery Unit
AC 380V 6X104 Nm3/D Light Hydrocarbon Recovery Unit
AC 380V 6X104 Nm3/D Light Hydrocarbon Recovery Unit
AC 380V 6X104 Nm3/D Light Hydrocarbon Recovery Unit
AC 380V 6X104 Nm3/D Light Hydrocarbon Recovery Unit
AC 380V 6X104 Nm3/D Light Hydrocarbon Recovery Unit
Specifications
Brand Name :
RT
Model Number :
NGLC 65-35/60
Certification :
ASME
Place of Origin :
China
MOQ :
1 set
Price :
100000 USD
Payment Terms :
L/C, T/T
Delivery Time :
80 days
Packaging Details :
Plywood case
Voltage :
380V 3 phase 50Hz
Warranty :
1 year
Power source :
AC Power
After-sales service provided :
Engineers available to service machinery overseas
Capacity :
6.0X104 Nm3/d
Pressure :
0.1-10.0 MPa
Description

6X104 Nm3/D Light hydrocarbon recovery unit Natural gas liquid recovery unit

Why to recover natural gas condensate:

1. Improve the quality of natural gas, reduce hydrocarbon dew point and prevent liquid hydrocarbon condensation in pipeline transportation;

2. The recovered condensate products are important civil fuel and chemical fuel;

3. The comprehensive utilization rate of resources is provided, which has good economic benefits.

Main equipment:

Process integration skid, compressor skid, mixed hydrocarbon storage skid, instrument and control device.

Main parameter:

Model no. NGLC 65-35/25 NGLC 625-35/15 NGLC 625-35/30 NGLC 625-35/60 NGLC 625-35/80 NGLC 625-35/140
Standard gas volume X104 Nm3/d 1.5 1.5 3.0 6.0 8.0 14.0
Device elasticity X104 Nm3/d 0.7-2.25 0.7-2.25 1.5-3.6 4.5-6.5 4.0-9.0 8.0-15.0
Process method

Alcohol injection and hydrocarbon collection

Dry gas (into pipe network)

Meet the requirements of pipeline transportation

 Dehydration and hydrocarbon collection
Product Type (mixed hydrocarbon + dry gas)

Alcohol injection and hydrocarbon collection

Dry gas (into pipe network)

Meet the requirements of pipeline transportation

 Dry gas (CNG / inlet pipe network)
Dry gas content

Alcohol injection and hydrocarbon collection

Dry gas (into pipe network)

Meet the requirements of pipeline transportation

 <1 ppm
C3 yield >80% (Improve efficiency according to user requirements)
Applicable ambient temperature -40-50 ℃
Inlet pressure 0.1-10.0 MPa
Dry gas outlet pressure 4.0-23.0 MPa
Design pressure of hydrocarbon mixing tank 2.5 MPa
Explosion-proof grade ExdIIBT4
The control mode PLC + upper computer
Skid sizes LXWXH: 8000-17000X3500X3000 mm

Note: the product series parameters are the mainstream of the market, and the devices beyond the scope can be designed separately.
