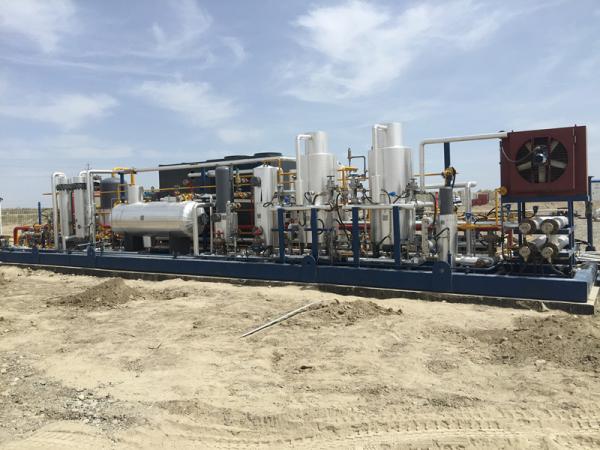

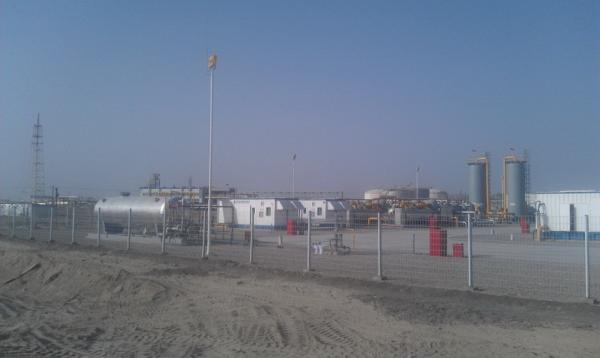

Customized high efficiency 3.0X104 Nm3/D NGL recovery unit Natural gas liquid recovery unit

Technical performance and characteristics of NGL recovery unit:

1. Dehydration and separation system: this system is a natural gas through the separation device, through low-speed, rotary separation, metal filter screen and other processes to fully separate water, heavy oil, sediment, etc., greatly reducing the load of the subsequent process system and cumbersome maintenance. The remarkable feature of the system is the addition of rotating separation and metal wire mesh filtering devices, the separation effect is significantly increased.

2. Compression and purification system: the compression system adopts oil-free compressor and evaporative condenser for cooling, which has the characteristics of low energy consumption and convenient maintenance.

3. Drying system: this system uses 4A molecular sieve, gas heating and reduction, automatic exchange and other characteristics, good energy saving effect, the labor intensity of operators has been reduced.

4. Refrigeration system: the device adopts ammonia refrigeration cycle system, the compressor is piston refrigeration compressor, the motor power is automatic frequency conversion, the auxiliary machine adopts evaporative condenser and aluminum plate evaporator, which has the functions of energy saving, water saving, good heat exchange effect and so on, and occupies a small area. The valve is not sealed by welding.

5. Cooling and separation system: the system adopts four-stage heat exchange, which makes full use of energy. The preheater, ammonia evaporator and gas-gas heat exchanger are all made of aluminum sheet tube, with good heat exchange effect. The precooling can completely remove water and avoid ice blockage. The separator adopts liquid level automatic discharge to reduce the labor intensity.

6. Automatic control system: the device adopts DSC automatic control system to realize decentralized control, centralized display and operation, with display, monitoring, alarm and other functions, instead of manual operation, improving production efficiency.

Main parameter

Note: the product series parameters are the mainstream of the market, and the devices beyond the scope can be designed separately.
