JKJQ -30- II Pneumatic Ball Valves Dispenser Gas Station For CNG Filling Station
JKJQ -30- II Pneumatic Ball Valves Dispenser Gas Station For CNG Filling Station
Specifications
Brand Name :
JINGKE
Model Number :
JKJQ-30-II, C
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
150 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden box
Material :
Stainless steel
Color :
as required
Application :
compressed natural gas
Usage :
CNG dispenser
Working pressure :
≤25 MPa
Power :
240w
Temperature range :
-35℃～+55℃
Warranty :
1 year
Nozzle :
auto shutoff nozzle
Hose :
anti-static rubber hose
Description

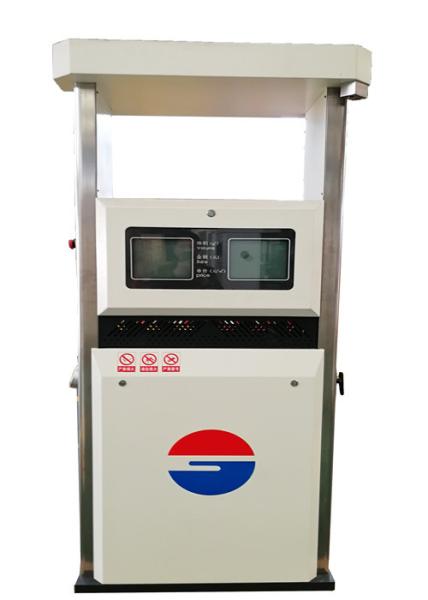

JKJQ-30-II pneumatic ball valves CNG dispenser for CNG filling station

Application:

The CNG dispenser is used in CNG gas filling station.

Features:

The CNG dispenser has the below advantages:

1. Types: Dual hose

2. Inlet Line: Three Lines;

3. Accuracy: ±1.0%;

4. Min. Reading Value: 0.01Nm3; 0.01RMB;

5. Single volume range: 0-9999.99Nm3/dollar;

6. Total volume range: 0-999999.99Nm3/dollar;

7. Unit price preset range: 0-99.99 dollar/Nm3;

8. Density preset range:0.0001-0.9999Kg/Nm3;

9. Preset volume range: 1-9999 Nm3/dollar/kg;

10. Display: unit price (dollar/Nm3. , volume (Nm3. , total (dollar) ;

Technical parameters:

Item no. JKJQ-30-II, IV
Explosion proof certificate CNEx14.3295
EX mark Ex d e ib mbⅡB T4 Gb
Working medium CNG
Flow range(filling dispenser) (1～30)kg/min
Meter accuracy class 1.0
Max.working pressure 25Mpa
Rated working pressure 20Mpa
Input power AC 187V~242V 50±1Hz, P≤300W
Work enviroment Enviroment temperature:-35℃～+55℃
Relative humidity:≤95%
Ambient atmosphere:86～110kPa
unit of measurement dollar/kg dollar/m3
Weight,including package 220kg
