Terminal Type LNG Fuel Stations Skid Mounted Use In LNG Gas Filling
Terminal Type LNG Fuel Stations Skid Mounted Use In LNG Gas Filling
Specifications
Brand Name :
Jinke
Model Number :
JKJY-S110
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Weight :
Customized
Capacity :
30000 m3
Material :
stainless steel
Brand name :
Jinke
Color :
Customized
Volume :
340 L /min
Input power :
380 V AC
Medium :
liquefied natural gas
Description

Terminal type skid mounted LNG fuel station for LNG filling

Terminal Type LNG Fuel Stations Skid Mounted Use In LNG Gas Filling

Application

The LNG fuel station is for liquefied natural gas filling.

Description:

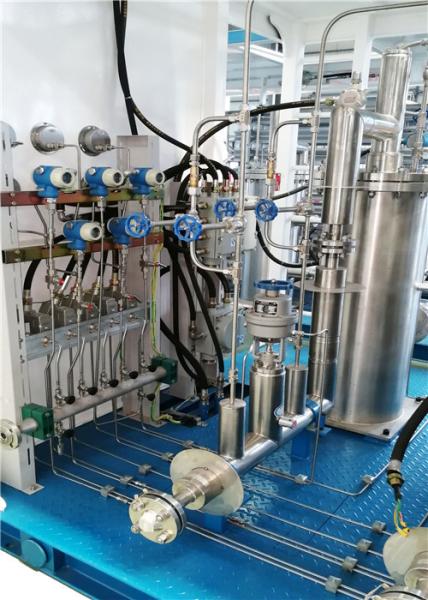

The terminal type LNG fuel station is a LNG filling system which consist of LNG storage tanks, LNG pump skid (single or double pumps), LNG dispenser, PLC control cabinet or control shelter.

Each module is completed the assembly in the factory and tested and commissioned seperatedly. Then it will do the whole system testing and commissioning after on site installation is completed.

It can refuel gas to LNG vehicle after successful commissioning.

Features:

The LNG fuel station has below features.

1. Based on the modular design, equipment on site layout is flexible.

2. Pump pool uses upper cover insulation structure. It will be less BOG generated.

3. Single pump skid can be upgraded to double pump skid. It can inscrease gas filling volume without replacing new equipment.

4. Equipment has complete functions and the saturation function. It can charge all kinds of automobile LNG cylinders.

5. PLC automatic control, high digital degree and can remote transmit data.

Technical parameters:

Application Medium LNG
Design Pressure 2.5MPa
Working Pressure 1.6MPa
Pump Flow 1000~3000L/h/set
Pump Head Max 280m
Design Inlet Temperature -196℃
Inlet Operating Temperature ＞-162℃
Gasifying Capacity 300Nm³/h
