Specifications
Brand Name :
Jinke
Model Number :
JKJY-S330
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Weight :
Customized
Capacity :
30000 m3
Material :
stainless steel
Brand name :
Jinke
Color :
Customized
Volume :
340 L /min
Input power :
380 V AC
Medium :
liquefied natural gas
Description

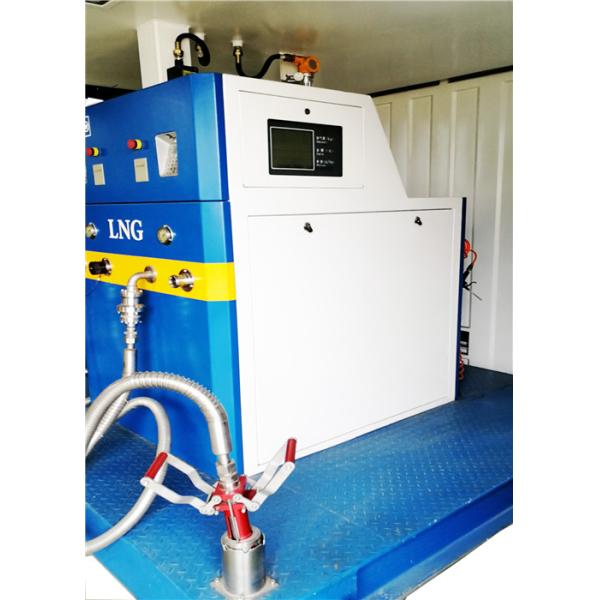

Intergrated LNG filling station for liquefied natural gas filling

Intergrated LNG Fuel Stations LNG Filling Station For Liquefied Natural Gas

Application

The LNG filling station is fueling LNG to vehicles.

Description:

The LNG filling station is intergrated the LNG pump skid, LNG control skid (PLC control system,instrument air system) and LNG gas refueling skid (LNG liquid charging device), ect.,

Features:

The LNG filling station has below features.

1. Integrated modular design, high durability and reliability with less maintenance.

2. Compact footprint, less land occupation.

3. Short construction period, saving the construction cost.

4. Vacuum pipeline and valve, less vaporization loss.

5. Safety protection measures with combustible gas detector, leak alarm, emergency shutdown, etc.

Technical parameters:

1 Container capacity 60 m3
2 Max. working pressure 1.2 Mpa
3 Input power 380V 50HZ 20KW
4 Pump flow rate 340L/min
5 Filling volume per day 30000 m3
6 Measurement (LXWXH) 20x3.6x3.9 m
