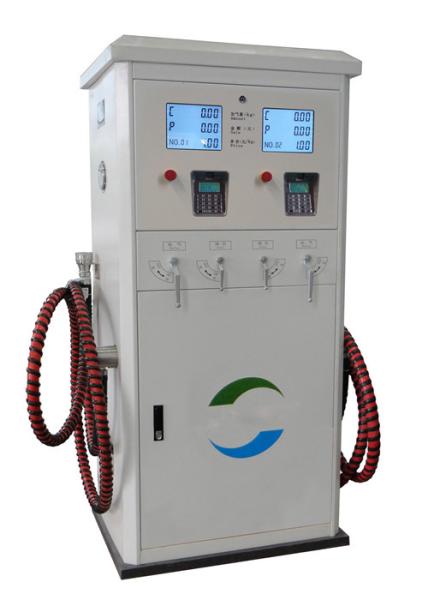

Two Noozle CNG Dispenser For Compressed Natural Gas Filling Station Low Outlet Pressure
Two Noozle CNG Dispenser For Compressed Natural Gas Filling Station Low Outlet Pressure
Specifications
Brand Name :
JINGKE
Model Number :
JKJQ-40-II, II
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
150 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden box
Material :
Stainless steel
Color :
as required
Application :
compressed natural gas
Usage :
CNG dispenser
Working pressure :
≤25 MPa
Power :
200w
Temperature range :
-35℃～+55℃
Warranty :
1 year
Nozzle :
auto shutoff nozzle
Hose :
anti-static rubber hose
Description

Two noozles CNG charge post for Compressed natural gas filling station

Application:

The CNG charge post is used for filling the trailer.

Features:

The CNG charge post has the below features.

1. 100% tested before shipping

2. One year warranty and guarantee

3. Certificate with ISO,ATEX,etc

4. Customized to the customer's needs.

Two Noozle CNG Dispenser For Compressed Natural Gas Filling Station Low Outlet Pressure.

Technical parameters:

Ambient temperature -35°C~ +55°C
Humidity ≤90%
Flow rate 5~60L/min or 5~90L/min
nozzle Auto shut-off
Suction distance 6m(Vertical), 50m(horizontal)
Accuracy ±0.30%
Repeating tolerance ≤0.15%
Hose 3m(low hang), 4.5m(high hang)
Inlet pressure ≥54kPa
Outlet pressure ≤0.3MPa
Voltage 220V/380V (50/60Hz)
Power 1HP(0.75kw)
Noise ≤80dB(A class)
Unit price range 0.01~999.99
single volume range 0.01~999999.99
accumulative volume range 0.01~9999999999.99
Explosion-proof signal ExdmbIIAT3
