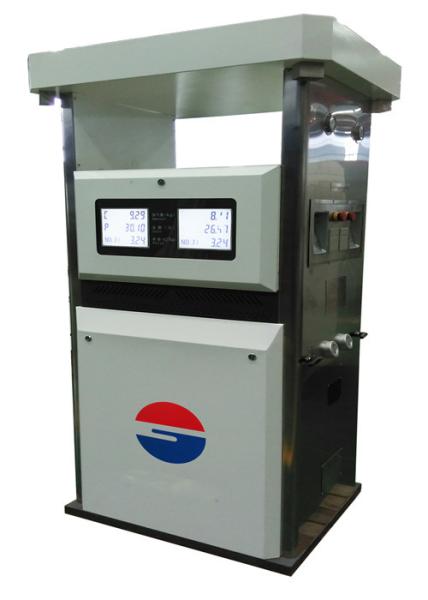

3 Lines Compressed Natural Gas Dispenser High Pressure CNG Filling Equipment
3 Lines Compressed Natural Gas Dispenser High Pressure CNG Filling Equipment
Specifications
Brand Name :
JINGKE
Model Number :
JKJQ-20-IIII, I
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
150 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden box
Material :
Stainless steel
Color :
as required
Application :
compressed natural gas
Usage :
CNG dispenser
Working pressure :
≤25 MPa
Power :
240kw
Temperature range :
-35℃～+55℃
Warranty :
1 year
Nozzle :
auto shutoff nozzle
Hose :
anti-static rubber hose
Description

4 noozles 3 lines CNG filling machine for CNG gas fuel station

Application:

The CNG filling machine is used for filling CNG in CNG station.

Features:

The CNG filling machine with four nozzles.

Stainless steel.

3 flowmeters-4 nozzles-4displays-4keyboards.

Branded mass flow meter inside.

3 lines control high pressure, middle pressure, low pressure of the CNG filling machine.

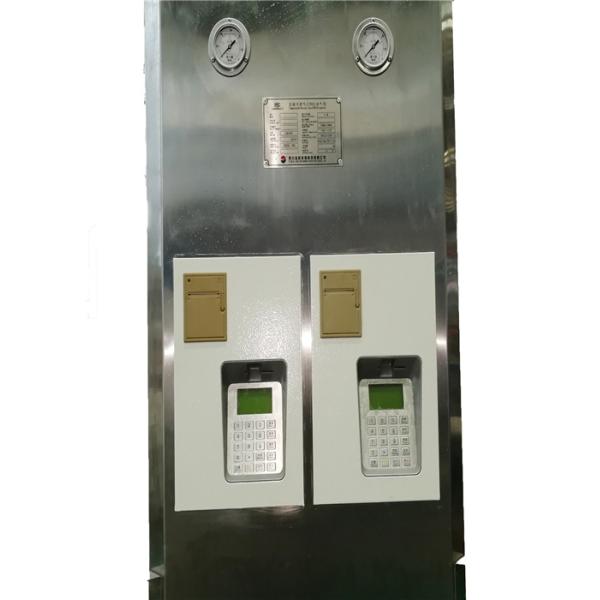

3 Lines Compressed Natural Gas Dispenser High Pressure CNG Filling Equipment

Technical parameters:

1 Flow Range: 4~40m³/h
2 Rated input working pressure: 25Mpa
3 Rated output working pressure: 20Mpa
4 Medium temperature: -40°C ~ +60°C
5 Ambient temperature: -35°C ~ +50°C
6 Relative Humidity: 15 ~ 95%
7 Measured at the level of accuracy: level 1
8 Power supply: 220 +15% AC, 50 +1 HZ
9 Single measurement range: 0 to 9990.00 cubic meters
10 Cumulative metering range: 0 ~ 42,949,672.95 cubic meters
11 Price measurement range: 0.01 to 99.99 dollar
12 Networking and communications ports: three current loop
13 Explosion-proof rating: Exdib II AT4
