Hydraulic Psiton CNG Filling Station Equipment AC Power Clean Energy Use
Hydraulic Psiton CNG Filling Station Equipment AC Power Clean Energy Use
Specifications
Brand Name :
JINGXIN
Model Number :
JXJQ-Y110
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Configuration :
customer made
Power source :
AC power
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Vary
Warranty :
1 year
Voltage :
380 V
Working pressure :
25 MPa
Inlet pressure :
3-20 MPa
Description

Engergy saving Hydraulic psiton compressor clean energy CNG station

Application:

The hydraulic piston clean energy CNG staion is applied in CNG filling for NGV.

Hydraulic Psiton CNG Filling Station Equipment AC Power Clean Energy Use

Description:

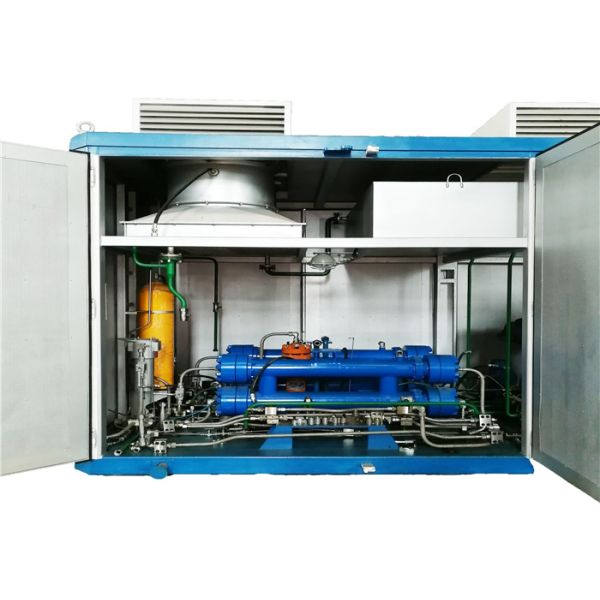

The hydraulic psiton compressor clean energy CNG station can place the hydraulic piston compressor outside the shelter or inside.

The storage cylinder will be located outside. The CNG dispenser is installed on the gas filling island under the tent.

PLC control cabinet is installed in the station control room.

After these installation, it will work as a CNG filling staion.

Advangtages:

1. Little mechanical vibration and low noise.

2. Plunger pump protection technology help to reduce the pump noise and extend the service life.

3. Automatic PLC operation all the time. High automation degree.

4. The CNG station adopts the skid mounted modular design and it occupy less aea and is easy to install at field.

Technical parameters

Iitems Unit Parameters
Inlet pressure Mpa 3-20
Outlet pressure Mpa 25
Inlet Temp. ℃ <30
Outlet Temp. ℃ ≤45
Capacity Nm3/h 1000-3000
Motor power KW <100
