380 V Cng Gas Filling Station Wide Gas Pressure Range 0.3-20MPa Intelligent Design
380 V Cng Gas Filling Station Wide Gas Pressure Range 0.3-20MPa Intelligent Design
Specifications
Brand Name :
JINGXIN
Model Number :
JXJQ-D101
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Configuration :
customer made
Power source :
AC power
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Vary
Warranty :
1 year
Voltage :
380 V
Working pressure :
25 MPa
Inlet pressure :
1-20 MPa
Description

Wide range gas pressure 0.3-20MPa CNG gas filling station for NGV

Application:

The CNG gas filling staion is used for refueling the NGV in CNG station.


Features:

Large displacement: The use of advanced whole-process large-scale frequency conversion technology to improve the actual utilization of motor, thereby improving the exhaust capacity of the unit.

Low energy consumption: Compressor base parts are equipped with heavy-duty mainframe to adapt to a wide range of intake pressure changes, while making full use of intake pressure to reduce energy consumption.

Intelligent: The whole process intelligent control technology of PLC is adopted in the unit, and the speed is automatically adjusted according to the pressure ratio without manual operation.

Low operating cost: compressor adopts frequency conversion technology to reduce the main motor power and transformer capacity on the premise of guaranteeing gas volume.

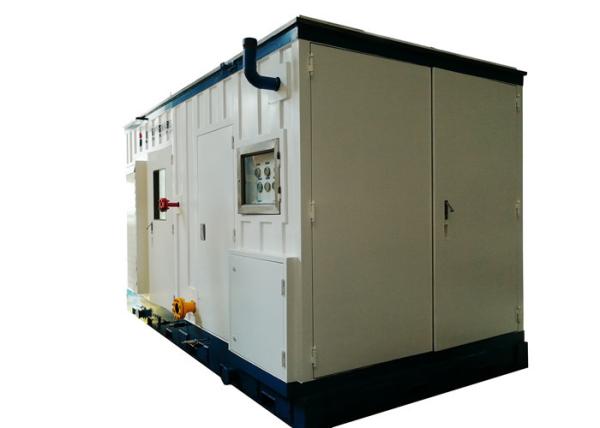

380 V Cng Gas Filling Station Wide Gas Pressure Range 0.3-20MPa Intelligent Design

Technical parameters:

S/NModelInlet pressure (Mpa)Power (KW)Capacity(Nm3/h)Cooling style
1ZW-3.6/1-250A-JX1110420water cooling
2ZW-4.4/1-250-JX1110470water cooling
3ZW-5/1-250D-JX1132533water cooling
4ZW-4.8/1.25-250-JX1.25132580water cooling
5ZW-3.8/1.4-250-JX1.4110490water cooling
6ZW-3.56/1.5-250-JX1.5110490water cooling
7ZW-4.35/1.5-250D-JX1.5132595water cooling
8ZW-5/1.5-250B-JX1.5160720water cooling
9ZW-3.8/2-250-JX2132620water cooling
10ZW-4.5/2-250D-JX2160750water cooling
11ZW-4.95/2-250C-JX2185870water cooling
12ZW-3.3/2.4-250-JX2.4132640water cooling
13ZW-3.3/2.5-250B-JX2.5132645water cooling
14ZW-3.7/2.5-250D-JX2.5160780water cooling
15ZW-4.35/2.5-250B-JX2.5185900water cooling
16ZW-2.5/3-250K-JX3110550water cooling
17ZW-3/3-250-JX3132660water cooling
18ZW-3.65/3-250B-JX3160800water cooling
19ZW-4.25/3-250C-JX3185930water cooling
20ZW-4.4/3-250A-JX32001005water cooling
21ZW-2.7/3.5-250A-JX3.5132680water cooling
22ZW-3.2/3.5-250-JX3.5160830water cooling
23ZW-2.1/4-250A-JX4110580water cooling
24ZW-2.5/4-250F-JX4132705water cooling
25ZW-3/4-250C-JX4160850water cooling
26ZW-3.65/4-250E-JX4185985water cooling
27ZW-1.45/5-250-JX590500water cooling
28ZW-1.9/5-250B-JX5110615water cooling
29ZW-2.2/5-250E-JX5132740water cooling
30ZW-2.76/5-250-JX5160895water cooling
31ZW-3.3/5-250-JX52001120water cooling
32ZW-1.64/6-250-JX6110640water cooling
33ZW-1.9/6-250B-JX6132770water cooling
34ZW-2.5/6-250-JX61851080mixed cooling
35ZW-3.0/6-250C-JX62001170water cooling
36ZW-2.2/7-250-JX7160980water cooling
37ZW-1.36/8-250-JX8110690water cooling
38ZW-1.7/8-250-JX8132830water cooling
39ZW-2.0/8-250D-JX81601010water cooling
40ZW-1.2/10-250-JX10110740water cooling
41ZW-1.4/10-250A-JX10132890water cooling
42ZW-1.91/10-250-JX101851250mixed cooling
43ZW-1.35/12-250-JX12132930water cooling
44ZW-1.55/12-250-JX121601130water cooling
45ZW-1.45/14-250-JX141601190water cooling
46ZW-0.98/15-250B-JX15110830water cooling
47ZW-1.0/16-250-JX161321010water cooling
48ZW-1.65/16-250-JX161851440water cooling
49ZW-0.94/20-250-JX201321110mixed cooling
50ZW-1.15/20-250-JX201601350mixed cooling
51ZW-1.3/20-250A-JX201851570water cooling
