90-200 KW Compressed Natural Gas Filling Stations ZW Type ISO Certification
90-200 KW Compressed Natural Gas Filling Stations ZW Type ISO Certification
Specifications
Brand Name :
JINGXIN
Model Number :
JXJQ-Z150
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Warranty :
1 year
Voltage :
380 V
Lubrication style :
Oil free
Working pressure :
25 MPa
Configuration :
customer made
Power source :
AC power
Inlet pressure :
1-20 MPa
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Vary
Description

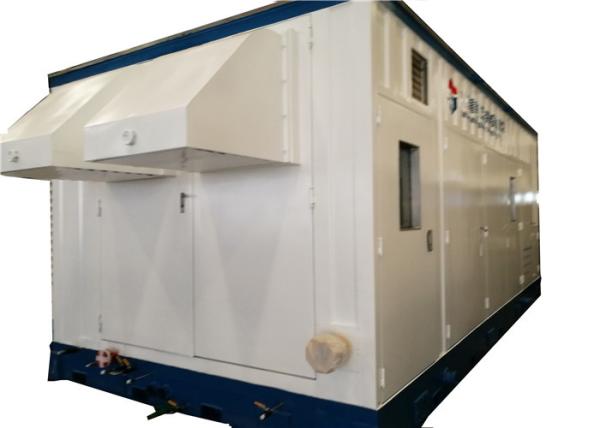

90-200 KW ZW type Oil free compressor CNG fuel station for CNG gas

Application:

The CNG fuel staion is applied in CNG gas filling.

Features:

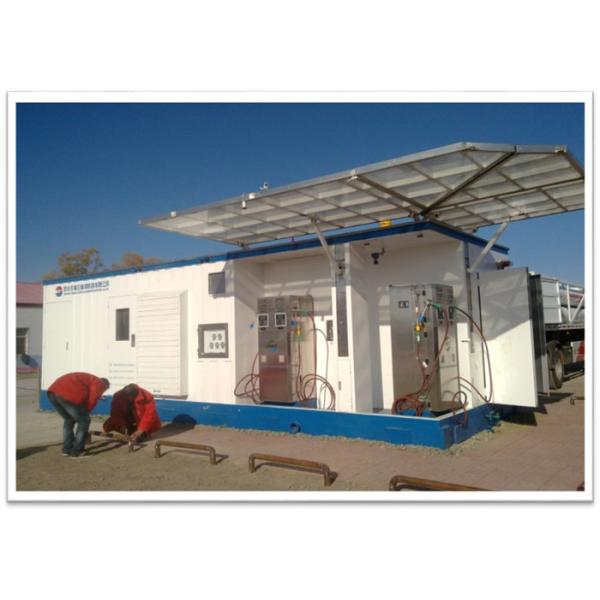

1.The CNG fuel station include dehydration device, CNG compressor/pump; CNG gas filling machine, strorage cylinder, ect.,

2. Low invesment, less land occupation;

3. Low operation cost, no noise;

4. Wide application range, the gas source could adopt either pipeline gas or the CNG gas cylinder unit;

5. With waterproof canopy and explosion-proof lights, located outside, quick erection and quickly ready for operation.

Technical parameters:

S/N Model Inlet pressure (Mpa) Power (KW) Capacity (Nm3/h) Cooling style
1 D-5.0/0.8-250 0.8 132 550 water or air cooling
2 D-3.22/1-250 1 90 370 water or air cooling
3 D-3/3-250 3 132 680 water or air cooling
4 D-2.5/4-250 4 132 715 water or air cooling
5 D-1.32/6-250 6 90 530 water or air cooling
6 D-1.2/10-250 10 110 750 water or air cooling
7 D-0.75/12-250 12 75 540 water or air cooling
8 D-0.44/100-250 10 90 2100 water or air cooling
9 DY-0.2/30-250 30 37 (variable frequency) 600 (average) air cooling
