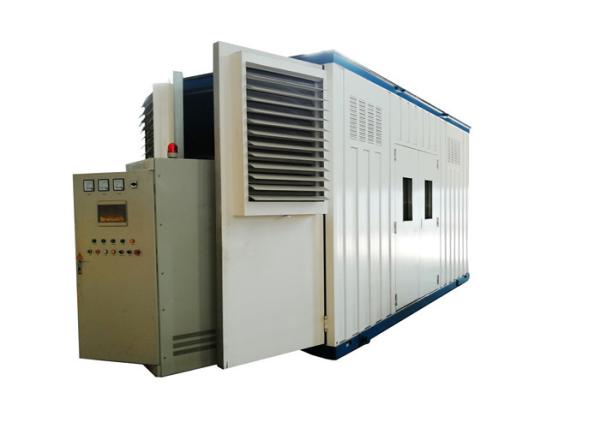

High Efficiency CNG Filling Station Equipment Energy Saving For NGV Filling CNG
High Efficiency CNG Filling Station Equipment Energy Saving For NGV Filling CNG
Specifications
Brand Name :
JINGXIN
Model Number :
JXJQ-D112
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Configuration :
customer made
Power source :
AC power
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Vary
Warranty :
1 year
Voltage :
380 V
Working pressure :
25 MPa
Inlet pressure :
0.8-20 MPa
Description

High efficiency and energy saving CNG station for NGV filling CNG

Application:

The CNG staion is used for CNG refueling in CNG station.

High Efficiency CNG Filling Station Equipment Energy Saving For NGV Filling CNG

Features:

1.For the overall skid-mounted type, installation and maintenance is convenient.


2. The compressor runs smoothly with small vibration.


3. Low rotation speed, long service life of wearing parts and low operating noise.


4. The oil is supplied by the pressure lubrication system to ensure the reliable operation of the compressor.


5. the unit adopts advanced PLC control system, high degree of automation.


6.the use of international famous brand air valve, long service life, low noise.


Technical parameters:

S/N Model Inlet pressure (Mpa) Power (KW) Capacity (Nm3/h) Cooling style
1 D-5.0/0.8-250 0.8 132 550 water or air cooling
2 D-3.22/1-250 1 90 370 water or air cooling
3 D-3/3-250 3 132 680 water or air cooling
4 D-2.5/4-250 4 132 715 water or air cooling
5 D-1.32/6-250 6 90 530 water or air cooling
6 D-1.2/10-250 10 110 750 water or air cooling
7 D-0.75/12-250 12 75 540 water or air cooling
8 D-0.44/100-250 10 90 2100 water or air cooling
9 DY-0.2/30-250 30 37 (variable frequency) 600 (average) air cooling
