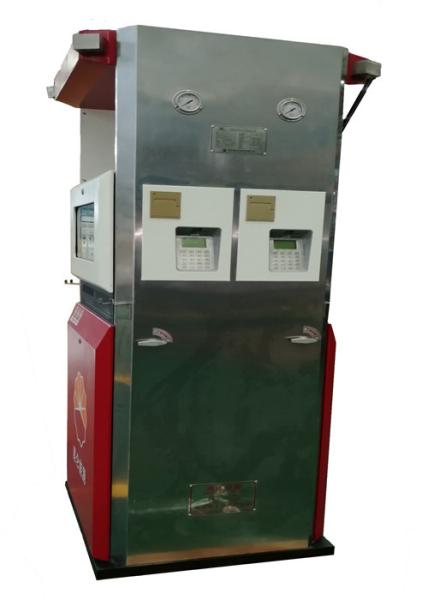

High Precision CNG Compressor Station Dispenser Customized IC Card Interface
High Precision CNG Compressor Station Dispenser Customized IC Card Interface
High Precision CNG Compressor Station Dispenser Customized IC Card Interface
High Precision CNG Compressor Station Dispenser Customized IC Card Interface
High Precision CNG Compressor Station Dispenser Customized IC Card Interface
High Precision CNG Compressor Station Dispenser Customized IC Card Interface
High Precision CNG Compressor Station Dispenser Customized IC Card Interface
High Precision CNG Compressor Station Dispenser Customized IC Card Interface
Specifications
Brand Name :
JINGKE
Model Number :
JKJQ-20-II, IV
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
150 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden box
Material :
Stainless steel
Color :
as required
Application :
compressed natural gas
Usage :
CNG dispenser
Working pressure :
≤25 MPa
Power :
200kw
Temperature range :
-35℃～+55℃
Warranty :
1 year
Nozzle :
auto shutoff nozzle
Hose :
anti-static rubber hose
Description

High precision customized CNG dispenser for CNG gas filling station

Application:

The CNG dispenser is used for compressed natural gas filling.

Features:

1. The interface for IC card to upgrade easily.
2. The interface for a bill printer to realize operating by plug-in.
3. The interface for computer communication to ready for upgrading and installing the management system for a refueling station.
4. The modularized triplet solenoid valve can be maintained and repaired on-line.
5. Re-display the records in many times and inquiry information.
6.1/2 inch stainless steel pipe to ensure the refueling speed.
7. The refueling pressure for the automobile can be preset by manual.
8. The refueling mode can be shifted to the quick speed for a bus.
9. The back light display panel, stand low temperature.
10. Self-protection for over-voltage, over-pressure, and over-current, overflow.
11. Advanced protective mode only with one-key, emergency stop in easy way.
12. The cumulative data can be stored for 10 years.
13. Automatic diagnose and display trouble code.
14. Various models: single-hose, double-hose, single-pipeline, double-pipeline, three-pipeline.

High Precision CNG Compressor Station Dispenser Customized IC Card Interface

Technical parameters:

Item no. JKJQ-20-II, IV
Product standards GB/19237 JJG996-2012 Q/75595257-9.8-2014
Full performance test certificate 2015-001
Explosion proof certificate CNEx14.3295
EX mark Ex d e ib mbⅡB T4 Gb
Working medium CNG
Flow range(filling dispenser) (1～20)kg/min
Meter accuracy class 1.0
Max.working pressure 25Mpa
Rated working pressure 20Mpa
Input power AC 187V~242V 50±1Hz, P≤200W
Work enviroment Enviroment temperature:-35℃～+55℃
Relative humidity:≤95%
Ambient atmosphere:86～110kPa
unit of measurement dollar/kg dollar/m3
Weight,including package 220kg
