Low Noise CNG Filling Station Equipment High Capacity Skid Mounted Type
Low Noise CNG Filling Station Equipment High Capacity Skid Mounted Type
Specifications
Brand Name :
JINGXIN
Model Number :
JXJQ-D130
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Configuration :
customer made
Power source :
AC power
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Vary
Warranty :
1 year
Voltage :
380 V
Working pressure :
25 MPa
Inlet pressure :
1-20 MPa
Description

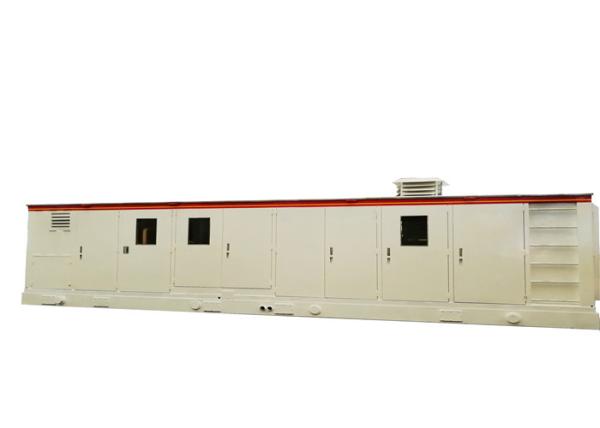

Low noise high capacity skid mounted CNG station for CNG filling

Application:

The skid mounted CNG staion is used for natural gas filling.

Low Noise CNG Filling Station Equipment High Capacity Skid Mounted Type

Features:

1. The skid mounted CNG station refers to the overall integrated part with flow meter, pressure regulator,buffer tank,dehydration device, CNG compressor, storage cylinder, priority panel, CNG dispenser.

2. Flexible and small.its a whole and can be moved and relocated easily.

3. High integration rate,convenient installation,move into place .

4. Eliminating field installation,low cost,short time for a project,highly Normative,save materia.



Technical parameters:

S/N Model Inlet pressure (Mpa) Outlet pressure (Mpa) Power (KW) Capacity (Nm3/h)
1 ZW-0.25/20-250JX 2.0-20 25 55 1000
2 ZW-0.25/20-250JX 2.0-20 25 75 1200
3 ZW-0.25/20-250JX 2.0-20 25 90 1500
4 ZW-0.25/20-250JX 2.0-20 25 55 1000
5 ZW-3.8/1.4-250-JX 2.0-20 25 75 1200
6 ZW-3.56/1.5-250-JX 2.0-20 25 90 1500
