Skid Mounted CNG Filling Station Equipment High Capacity For CNG Mother Station
Skid Mounted CNG Filling Station Equipment High Capacity For CNG Mother Station
Specifications
Brand Name :
JINGXIN
Model Number :
JXJQ-Q128
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 per month
Delivery Time :
60 days
Packaging Details :
Wooden box
Lubrication style :
lubricated
Configuration :
customer made
Power source :
AC power
After-sales service provided :
Engineers available to service machinery overseas
Dimension(l*w*h) :
Vary
Warranty :
1 year
Voltage :
380 V
Working pressure :
25 MPa
Inlet pressure :
1-20 MPa
Description

Skid mounted high capacity CNG filling station for CNG mother station

Application:

The CNG filling staion is used for mother station.

Features:

The CNG filling station have the below features.

1. The high capacity can rach 4340 Nm3/h.

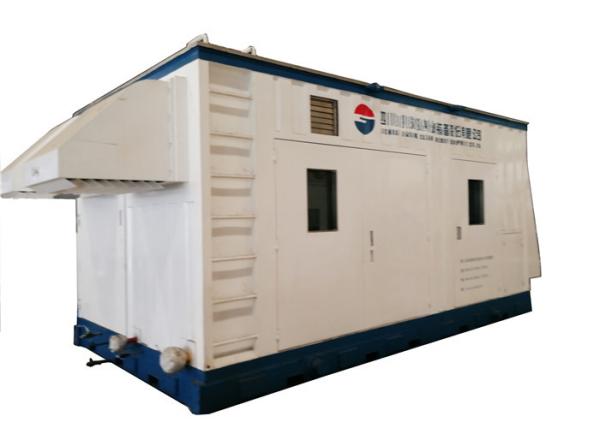

2. Compressor with encloser will eliminate most of the noise.

3. The cooling method will be adopt to the local condition.

4. The compressor use our special patent and save more 10% energy.

5. Four row horizontal symmetry balance compressor will run very balancedly and with small vibration.

6. The compressor has only one cylinder in one row. It is very convenient to repair.

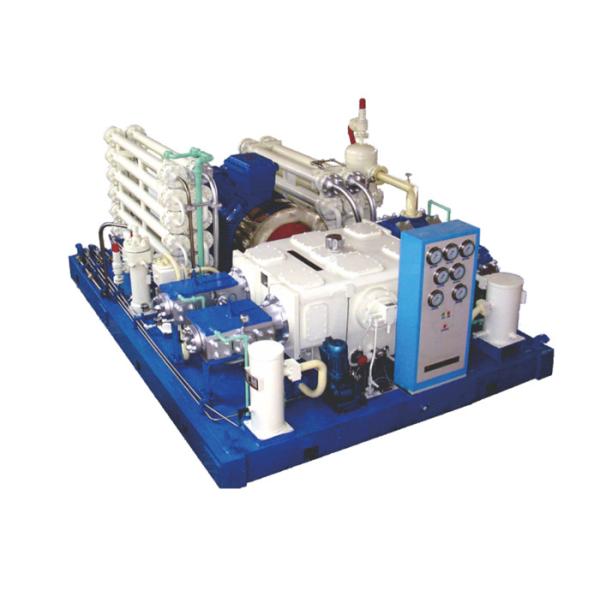

Skid Mounted CNG Filling Station Equipment High Capacity For CNG Mother Station

Technical parameters:

S/N Model Inlet pressure (Mpa) Power (KW) Capacity(Nm3/h) Cooling style
1 M-9/0.5-250A-JX 0.5 185 755 water cooling
2 M-10.5/0.5-250-JX 0.5 220 900 water cooling
3 M-7.3/0.6-250A-JX 0.6 160 660 Mixed cooling
4 M-8.0/0.7-250-JX 0.7 185 775 Mixed cooling
5 M-6.3/1-250-JX 1 160 690 water cooling
6 M-8.45/1-250-JX 1 220 950 air cooling
7 M-7.3/1.4-250-JX 1.4 220 990 water cooling
8 M-3.8/2-250B-JX 2 132 620 Mixed cooling
9 M-4.5/2-250A-JX 2 160 750 water cooling
10 M-5/2-250B-JX 2 185 870 Mixed cooling
11 M-5.5/2-250-JX 2 200 940 water cooling
12 M-6.1/2-250-JX 2 220 1035 water cooling
13 M-4.5/2.5-250-JX 2.5 185 900 water cooling
14 M-5.36/2.5-250-JX 2.5 220 1070 water cooling
15 M-6.1/2.5-250-JX 2.5 250 1220 water cooling
16 M-3/3-250-JX 3 132 660 Mixed cooling
17 M-3.65/3-250A-JX 3 160 805 Mixed cooling
18 M-4.1/3-250A-JX 3 185 930 water cooling
19 M-4.9/3-250-JX 3 220 1110 water cooling
20 M-5.45/3-250B-JX 3 250 1250 water cooling
21 M-6.35/3-250-JX 3 280 1420 Mixed cooling
22 M7.1/3-250B-JX 3 315 1595 water cooling
23 M-3.65/3.5-250-JX 3.5 185 960 water cooling
24 M4.05/3-250-JX 3.5 200 1040 Mixed cooling
25 M-5.6/3.5-250-JX 3.5 280 1450 water cooling
26 M-3.4/4-250-JX 4 185 980 water cooling
27 M4.1/4-250-JX 4 220 1170 Mixed cooling
28 M-4.75/4-250-JX 4 250 1330 Mixed cooling
29 M-5.2/4-250-JX 4 280 1490 water cooling
30 M-2/6-250-JX 6 132 760 water cooling
31 M3.8/6-250-JX 6 250 1470 water cooling
32 M4.05/6-250-JX 6 280 1630 water cooling
33 M-5.4/6-250-JX 6 355 2100 water cooling
34 M-3.3/7-250-JX 7 250 1520 Mixed cooling
35 M-2.3/8-250-JX 8 185 1170 Mixed cooling
36 M3.6/8-250-JX 8 280 1770 water cooling
37 M-2.15/10/250-JX 10 200 1345 water cooling
38 M-2.36/10-250B-JX 10 220 1480 water cooling
39 M-2.75/10-250-JX 10 250 1690 water cooling
40 M-3.2/10-250-JX 10 280 1890 water cooling
41 M-3.45/10-250-JX 10 315 2130 water cooling
42 M-2.4/12-250-JX 12 250 1780 water cooling
43 M-3/12-250-JX 12 315 2240 water cooling
44 M-3.35/12-250A-JX 12 355 2530 water cooling
45 M-2.3/13-250-JX 13 250 1830 air cooling
46 M2.75/13-250-JX 13 315 2310 water cooling
47 M-2.27/14-250-JX 14 250 1875 Mixed cooling
48 M2.68/14-250-JX 14 280 2080 air cooling
49 M-1.86/15-250-JX 15 220 1680 Mixed cooling
50 M-2.7/15-250C-JX 15 280 2150 Mixed cooling
51 M-1.32/16-250-JX 16 160 1250 water cooling
52 M2.05/16-250-JX 16 250 1965 water cooling
53 M-2.6/16-250D-JX 16 315 2470 Mixed cooling
54 M-2.75/17-250-JX 17 315 2520 water cooling
55 M-2.48/18-250D-JX 18 315 2580 Mixed cooling
56 M-1.75/20-250-JX 20 250 2110 water cooling
57 M-2.1/20-250-JX 20 280 2375 water cooling
58 M-2.21/22-250-JX 22 315 2880 water cooling
59 M-2/28-250-JX 28 315 3210 water cooling
60 M-1.15/30-250-JX 30 220 2215 water cooling
61 M-1.58/30-250-JX 30 280 2815 water cooling
62 M-1.75/30-250A-JX 30 315 3160 Mixed cooling
63 M-1.5/35-250-JX 35 280 3040 Mixed cooling
64 M-1.4/40-250-JX 40 280 3200 Mixed cooling
65 M-1.5/40-250-JX 40 315 3580 water cooling
66 M-1.12/45-250-JX 45 250 3060 water cooling
67 M-1.65/45-250-JX 45 355 4340 water cooling
